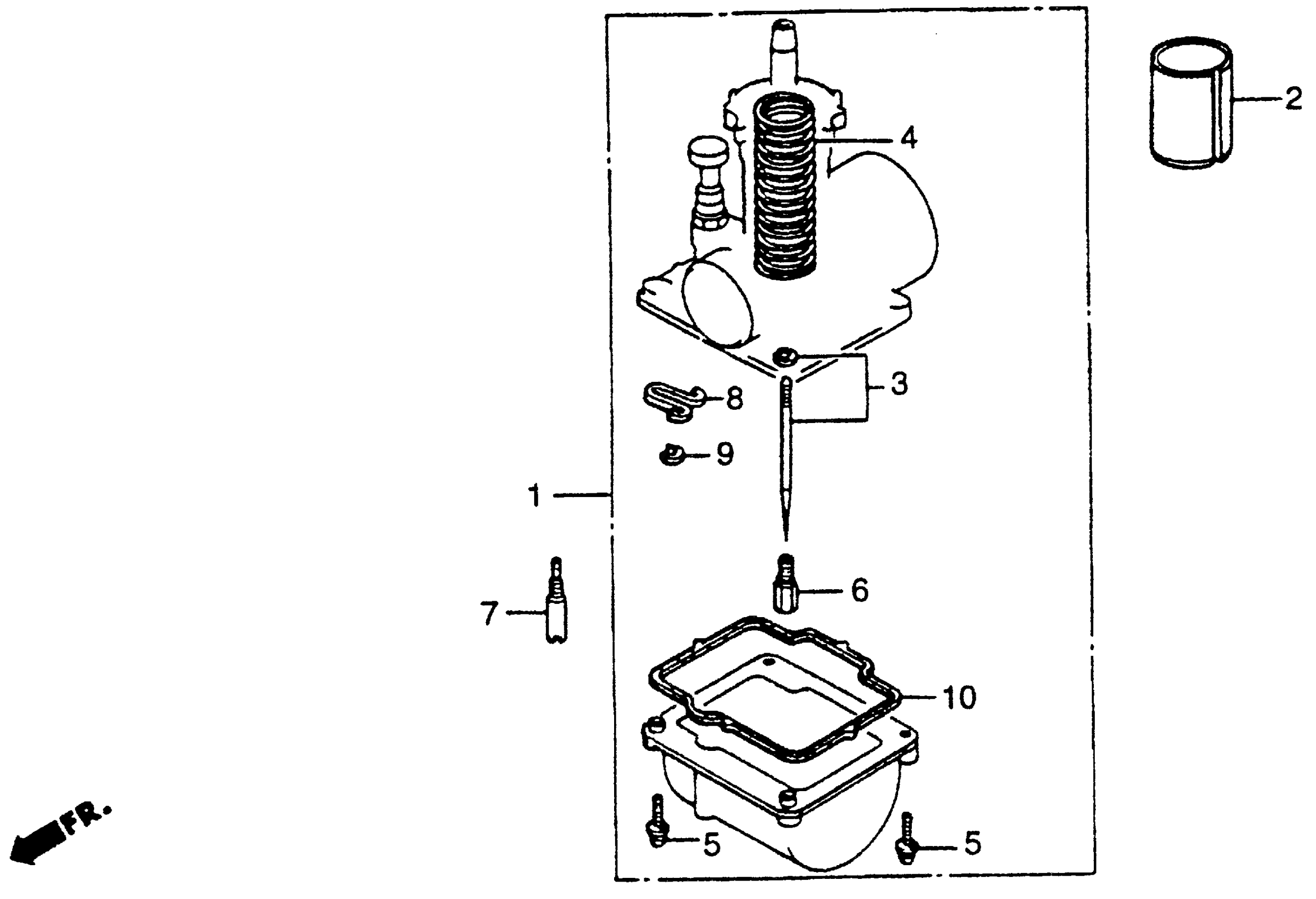

Honda CR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME030-EC600001 TO JH2ME030-EC607757 CARBURETOR OPTIONAL KIT 84 Diagram

#

Description
Price

1

PARTS KIT, CARBURETOR OPTIONAL

16020-KA4-741

Unavailable

2

VALVE, THROTTLE (#3.0)

16111-KA4-813

Unavailable

2

VALVE, THROTTLE (#4.0) (NOT AVAILABLE)

16111-KA4-823

Unavailable

3

NEEDLE SET, JET

16201-KA4-741

Unavailable

3

NEEDLE SET, JET

16202-KA4-741

Unavailable

3

NEEDLE SET, JET This part replaces 16203-KA3-701.

16203-KA3-711

Unavailable

3

NEEDLE SET, JET

16203-KA3-711

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16204-KA4-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16205-KA4-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE) This part replaces 16206-KA4-004.

16012-KA3-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16207-KA4-004

$13.67

3

NEEDLE SET, JET (NOT AVAILABLE)

16208-KA4-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16209-KA4-004

Unavailable

4

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16210-KA5-004

Unavailable

5

SCREW-WASHER (4X16)

93892-04016-08

$1.49

6

JET, MAIN (#138)

99101-357-1380

$9.26

6

JET, MAIN (#140)

99101-357-1400

$8.55

6

JET, MAIN (#142)

99101-357-1420

$8.55

6

JET, MAIN (#145)

99101-357-1450

$9.07

6

JET, MAIN (#148)

99101-357-1480

$17.95

6

JET, MAIN (#150) This part replaces 99101-357-1500.

99113-GHB-1500

$9.08

6

JET, MAIN (#155) JET, MAIN (#158) This part replaces 99101-357-1550.

99113-GHB-1550

$9.41

6

JET, MAIN (#158) JET, MAIN (#172) This part replaces 99101-357-1580.

99113-GHB-1580

$9.44

6

JET, MAIN (#160) This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

6

JET, MAIN (#162) This part replaces 99101-357-1620.

99113-GHB-1620

$9.41

6

JET, MAIN (#165) This part replaces 99101-357-1650.

99113-GHB-1650

$9.41

6

JET, MAIN (#168) This part replaces 99101-357-1680.

99113-GHB-1680

$9.41

6

JET, MAIN (#150)

99113-GHB-1500

$9.08

6

JET, MAIN (#155)

99113-GHB-1550

$9.41

6

JET, MAIN (#158)

99113-GHB-1580

$9.44

6

JET, MAIN (#160)

99113-GHB-1600

$9.44

6

JET, MAIN (#165)

99113-GHB-1650

$9.41

7

JET, SLOW (#62)

99103-441-0620

Unavailable

7

JET, SLOW (#65)

99103-441-0650

Unavailable

7

JET, SLOW (#70) (NOT AVAILABLE)

99103-441-0700

Unavailable

7

JET, SLOW (#72)

99103-441-0720

Unavailable

8

PLATE, NEEDLE CLIP

16114-KG8-901

Unavailable

9

CLIP, BAR This part replaces 16115-169-004.

16115-GHB-610

$2.98

10

GASKET, FLOAT CHAMBER

16163-KG8-901

Unavailable
