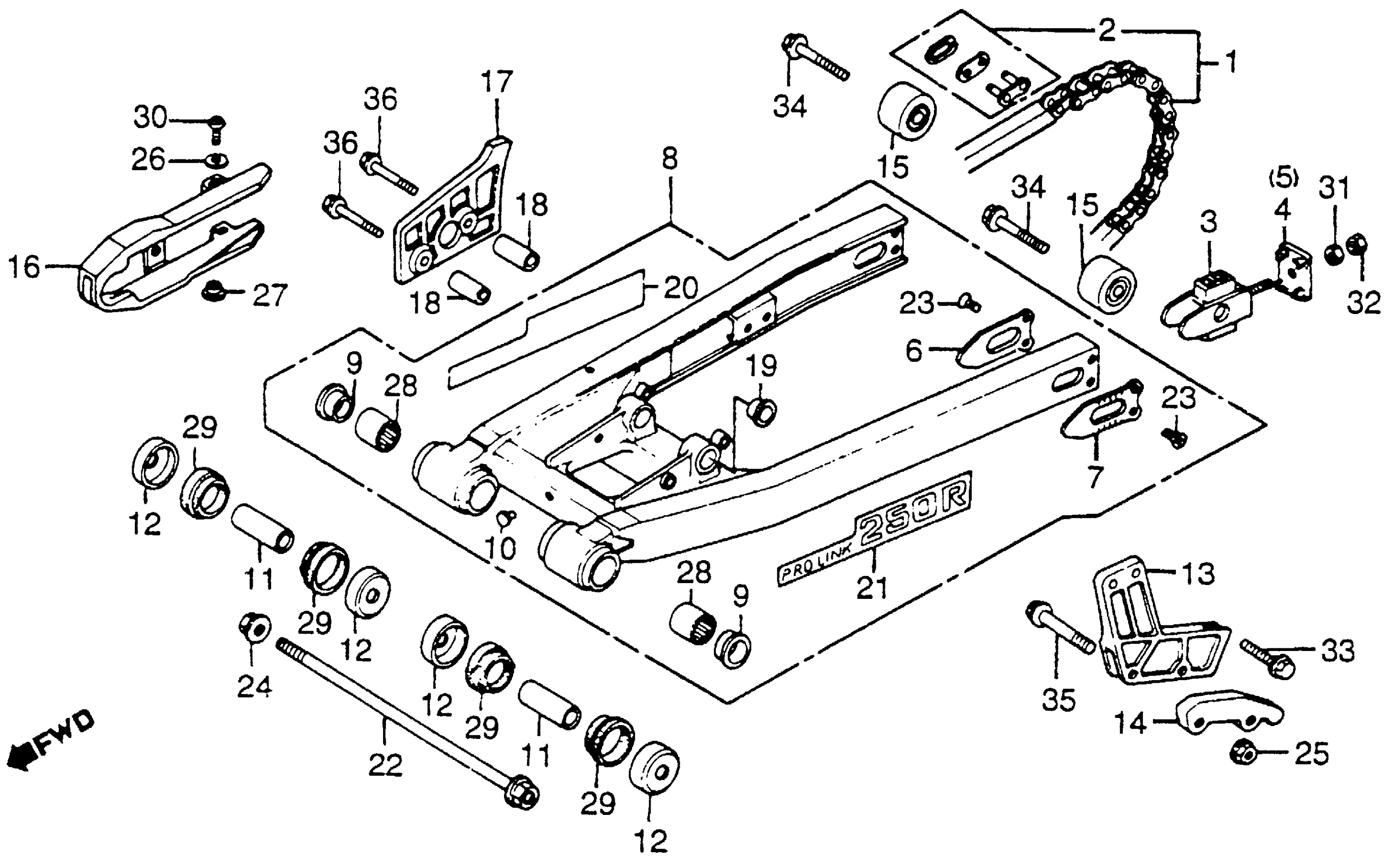

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 SWINGARM + DRIVE CHAIN 83 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-702.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-711.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE (520K-Z-114L) | (Optional).

40532-KA4-702

Unavailable

1

CHAIN, DRIVE (520DS3-114L) | (Optional).

40532-KA4-711

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KA4-702

Unavailable

2

MASTER LINK (DAIDO) | (Optional). This part replaces 40531-KA4-711.

40531-KA4-732

Unavailable

2

MASTER LINK (DAIDO) | (Optional).

40531-KA4-732

Unavailable

3

ADJUSTER, CHAIN

40543-KA3-710

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-710

Unavailable

5

RETAINER, R. CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA4-710

$24.62

6

WASHER, SWINGARM INSIDE

42307-KA3-710

Unavailable

7

WASHER, SWINGARM (OUTER)

42308-KA3-710

Unavailable

8

SWINGARM ASSY., RR.

52000-KA4-711

Unavailable

9

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

10

PLUG, SWINGARM

52130-KA3-711

Unavailable

11

COLLAR, SWINGARM

52141-KA4-700

Unavailable

12

CAP, DUST SEAL

52144-KA3-731

$14.60

12

CAP, DUST SEAL This part replaces 52144-KA4-701.

52144-KA3-731

$14.60

13

GUIDE, CHAIN (NOT AVAILABLE)

52146-KA4-710

Unavailable

14

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-KA3-711

Unavailable

15

ROLLER, CHAIN TENSIONER (NOT AVAILABLE)

52158-KA3-711

Unavailable

16

SLIDER, CHAIN (NOT AVAILABLE)

52170-KA4-710

Unavailable

17

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA4-701

Unavailable

18

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA4-700

Unavailable

19

WASHER, CUSHION ARM (NOT AVAILABLE)

52464-KA4-700

Unavailable

20

EMBLEM, R. SWINGARM (NOT AVAILABLE)

87121-KA4-710

Unavailable

21

EMBLEM, L. SWINGARM (NOT AVAILABLE)

87122-KA4-710

Unavailable

22

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA3-710

Unavailable

23

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

24

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

25

NUT, U (6MM)

90301-473-003

$4.07

26

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

27

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

28

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

28

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

29

DUST SEAL

91253-KA4-701

$12.86

29

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

30

SCREW, PAN (5X10)

93500-05010-0H

$1.49

31

NUT, HEX. (8MM)

94001-08000-0S

$1.49

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

BOLT, FLANGE (8X32) This part replaces 95700-08032-08.

95701-08032-08

$2.28

33

BOLT, FLANGE (8X32)

95701-08032-08

$2.28

34

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

34

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

35

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

35

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

36

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

36

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
