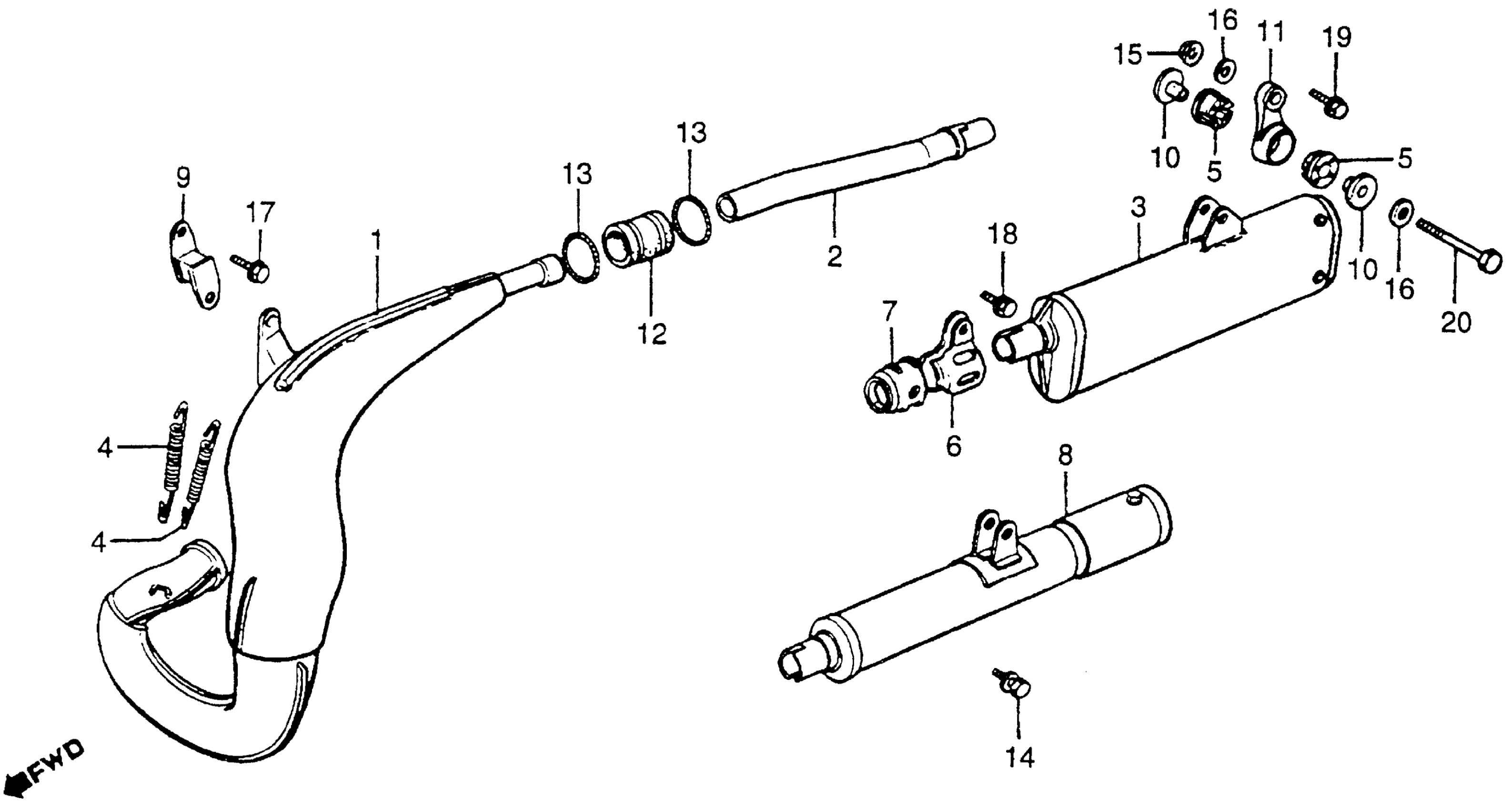

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 MUFFLER 82 Diagram

#

Description
Price

1

MUFFLER *NH106* (HEATPROOF BLACK) (NOT AVAILABLE)

18300-KA4-710ZA

Unavailable

2

PIPE, MUFFLER CONNECTING (NOT AVAILABLE)

18328-KA4-710

Unavailable

3

MUFFLER This part replaces 18330-KA4-711.

18330-KA4-717

Unavailable

3

MUFFLER

18330-KA4-717

Unavailable

4

SPRING, EX. PIPE

18332-KA4-000

Unavailable

5

RUBBER, MUFFLER

18334-KA4-000

Unavailable

6

BAND, MUFFLER SETTING | Use up to Frame SN DC503036 This part replaces 18335-KA4-710.

18335-KA4-711

Unavailable

6

BAND, MUFFLER SETTING | Use up to Frame SN DC503036

18335-KA4-711

Unavailable

6

BAND, MUFFLER SETTING

18335-KA4-711

Unavailable

7

RUBBER, MUFFLER SETTING (NOT AVAILABLE)

18336-KA4-710

Unavailable

8

ARRESTER, SPARK (NOT AVAILABLE) | (Optional).

18350-KA4-821

Unavailable

9

STAY, MUFFLER

18355-KA4-000

Unavailable

10

COLLAR, MUFFLER

18357-KA4-710

$6.63

11

STAY, MUFFLER (NOT AVAILABLE)

18358-KA3-710

Unavailable

12

SEAL, MUFFLER (NOT AVAILABLE)

18361-KA4-710

Unavailable

13

BAND, MUFFLER SEAL

18362-KA4-700

$7.16

14

BOLT-WASHER (6X12) | (Optional).

93402-06012-00

$1.69

14

BOLT-WASHER (6X12) | (Optional). This part replaces 93412-06012-00.

93402-06012-00

$1.69

14

BOLT-WASHER (6X12) | (Optional). This part replaces 93482-06012-00.

93402-06012-00

$1.69

15

NUT, FLANGE (6MM)

94050-06080

$1.49

16

WASHER, PLAIN (6MM)

94103-06000

$1.49

17

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.80

17

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

18

BOLT, FLANGE (6X10) | Use up to Frame SN DC503279 This part replaces 96000-06010-00.

96001-06010-00

$1.55

18

BOLT, FLANGE (6X14) | Use from Frame SN DC503280 This part replaces 96000-06014-00.

96001-06014-00

$1.72

18

BOLT, FLANGE (6X10) | Use up to Frame SN DC503279

96001-06010-00

$1.55

18

BOLT, FLANGE (6X14) | Use from Frame SN DC503280

96001-06014-00

$1.72

19

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

20

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
