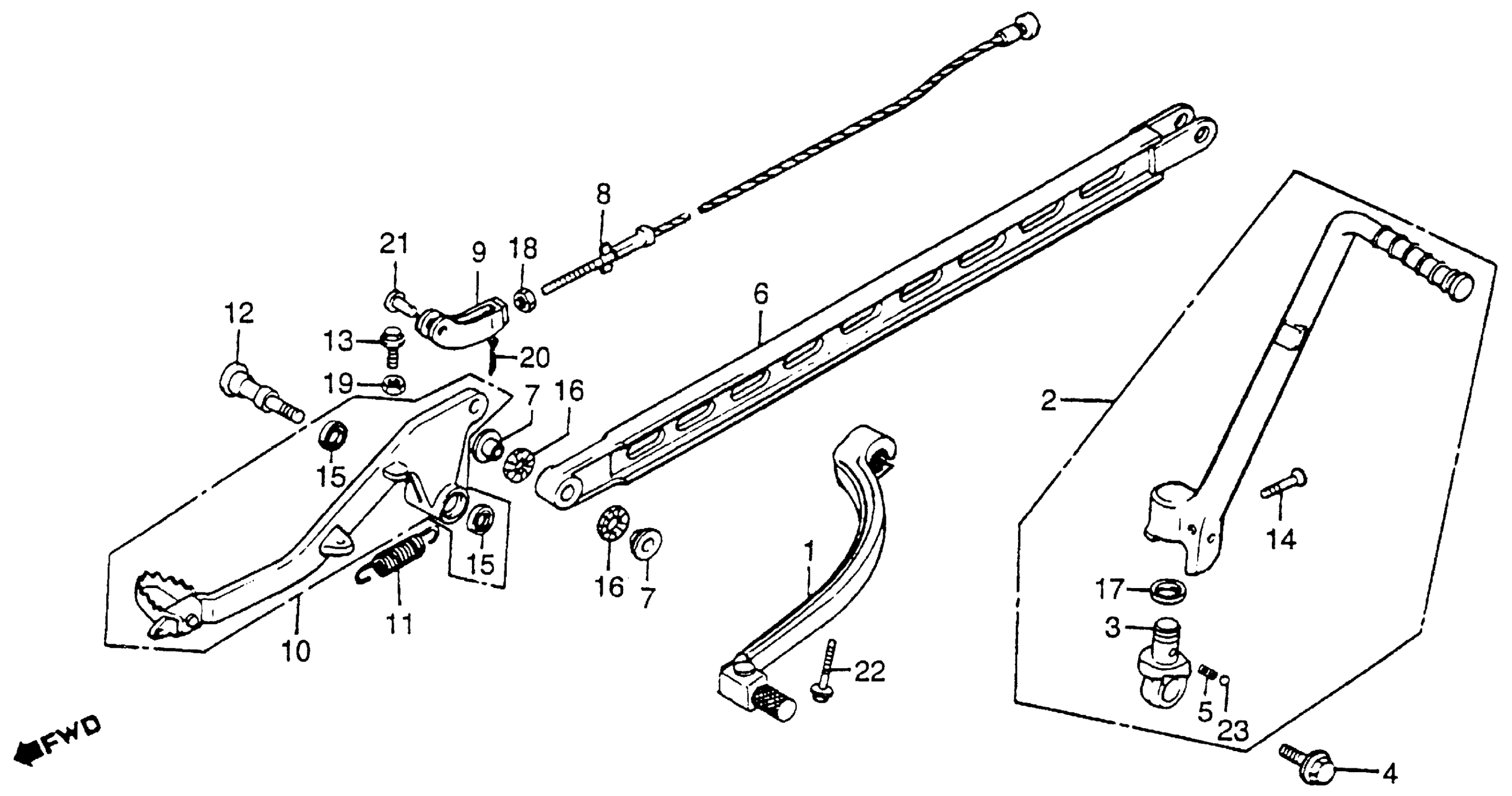

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 GEARSHIFT PEDAL + BRAKE PEDAL + KICK STARTER ARM 83 Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KA4-710

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-KA4-710

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28302-KA4-710

Unavailable

BOLT, KICK JOINT

28306-KA4-700

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ARM, RR. BRAKE STOPPER

43431-KA4-711

Unavailable

COLLAR, RR. BRAKE STOPPER ARM

43432-KA3-710

Unavailable

CABLE, RR. BRAKE (NOT AVAILABLE)

43451-KA4-710

Unavailable

JOINT, RR. BRAKE (NOT AVAILABLE)

43458-KA4-710

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46510-KA4-710

Unavailable

SPRING, BRAKE PEDAL

46511-KA4-710

Unavailable

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-KA5-770

Unavailable

BOLT, FLANGE (6X20)

90015-KA4-710

Unavailable

BOLT, KICK ARM This part replaces 90101-KA4-700.

90101-MAC-680

$5.92

BOLT, KICK ARM

90101-MAC-680

$5.92

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

DUST SEAL (13X18X3)

91272-KA3-712

Unavailable

DUST, SEAL (19X25X3)

91303-KA4-003

Unavailable

NUT, HEX. (6MM)

94001-06080-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
