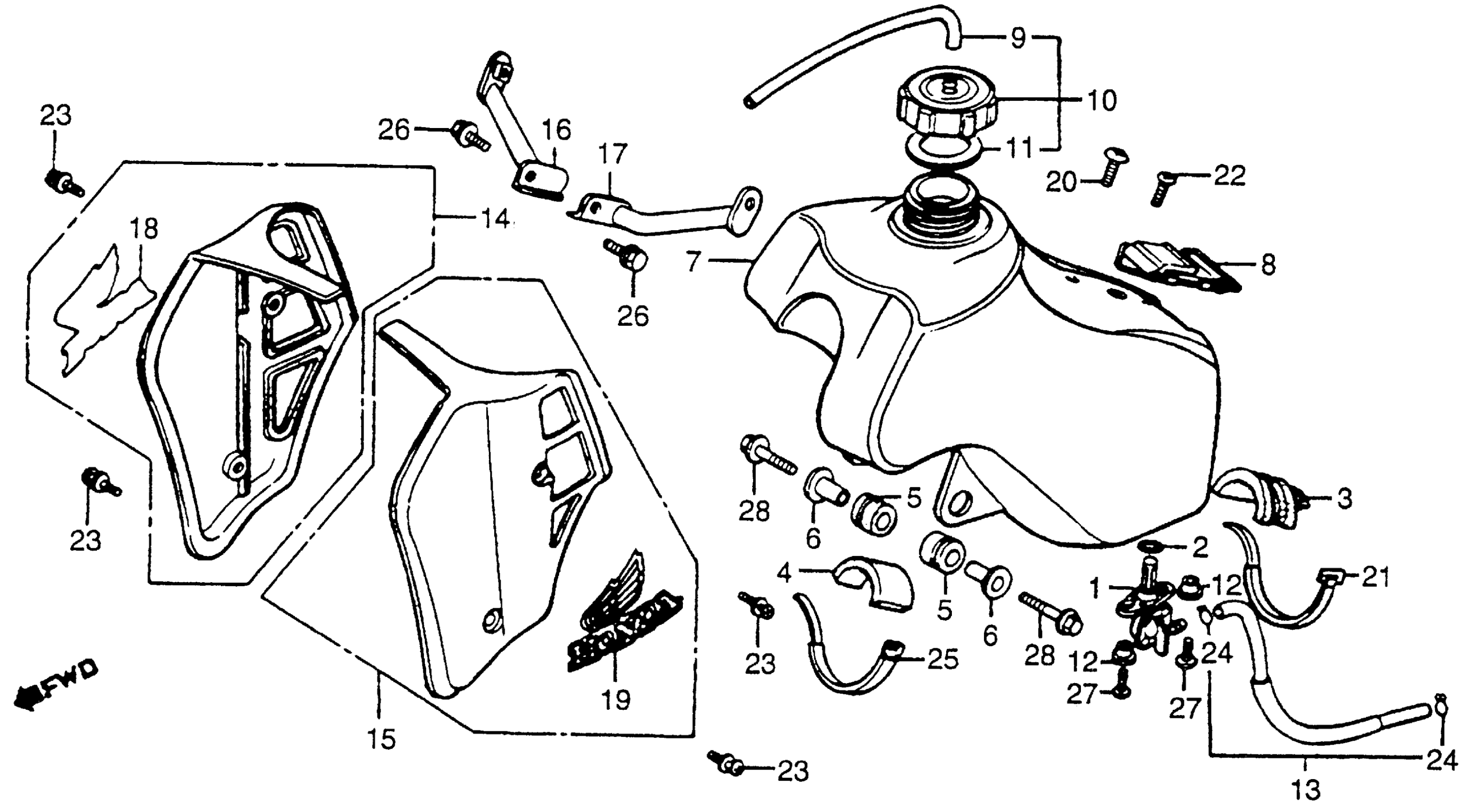

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 FUEL TANK + RADIATOR SHROUD 83 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17504-KA3-710

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK SETTING

17508-KA3-710

$8.75

6

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

7

TANK, FUEL (NOT AVAILABLE) | Use up to Frame SN DC505158 This part replaces 17510-KA4-710.

17510-KA4-711

Unavailable

7

TANK, FUEL (NOT AVAILABLE) | Use up to Frame SN DC505158

17510-KA4-711

Unavailable

8

BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17516-KA3-710

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17620-KA4-710

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

TUBE ASSY., FUEL

17681-KA4-710

Unavailable

14

SHROUD SUB-ASSY., R. RADIATOR (NOT AVAILABLE)

19071-KA4-710

Unavailable

15

SHROUD SUB-ASSY., L. RADIATOR (NOT AVAILABLE)

19072-KA4-710

Unavailable

16

STAY, R. SHROUD (NOT AVAILABLE)

19510-KA4-710

Unavailable

17

STAY, L. SHROUD (NOT AVAILABLE)

19515-KA4-710

Unavailable

18

EMBLEM, R. RADIATOR SHROUD This part replaces 87126-KA3-710.

87126-KA3-730

Unavailable

18

EMBLEM, R. RADIATOR SHROUD

87126-KA3-730

Unavailable

19

EMBLEM, L. RADIATOR SHROUD (NOT AVAILABLE)

87127-KA3-710

Unavailable

20

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-710.

90131-S0X-A00

$1.49

20

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

20

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

21

BAND, WIRE

90130-KA4-000

Unavailable

22

SCREW, PAN (6X16)

93500-06016-0H

$1.49

23

SCREW-WASHER (6X14) (NOT AVAILABLE)

93891-06014-00

Unavailable

24

CLIP, TUBE (B12)

95002-02120

$2.00

25

BAND B3, CABLE HARNESS

95014-62300

$2.25

26

BOLT, FLANGE (8X18) This part replaces 95700-08018-08.

95701-08018-08

$1.58

26

BOLT, FLANGE (8X18)

95701-08018-08

$1.58

27

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

28

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

28

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
