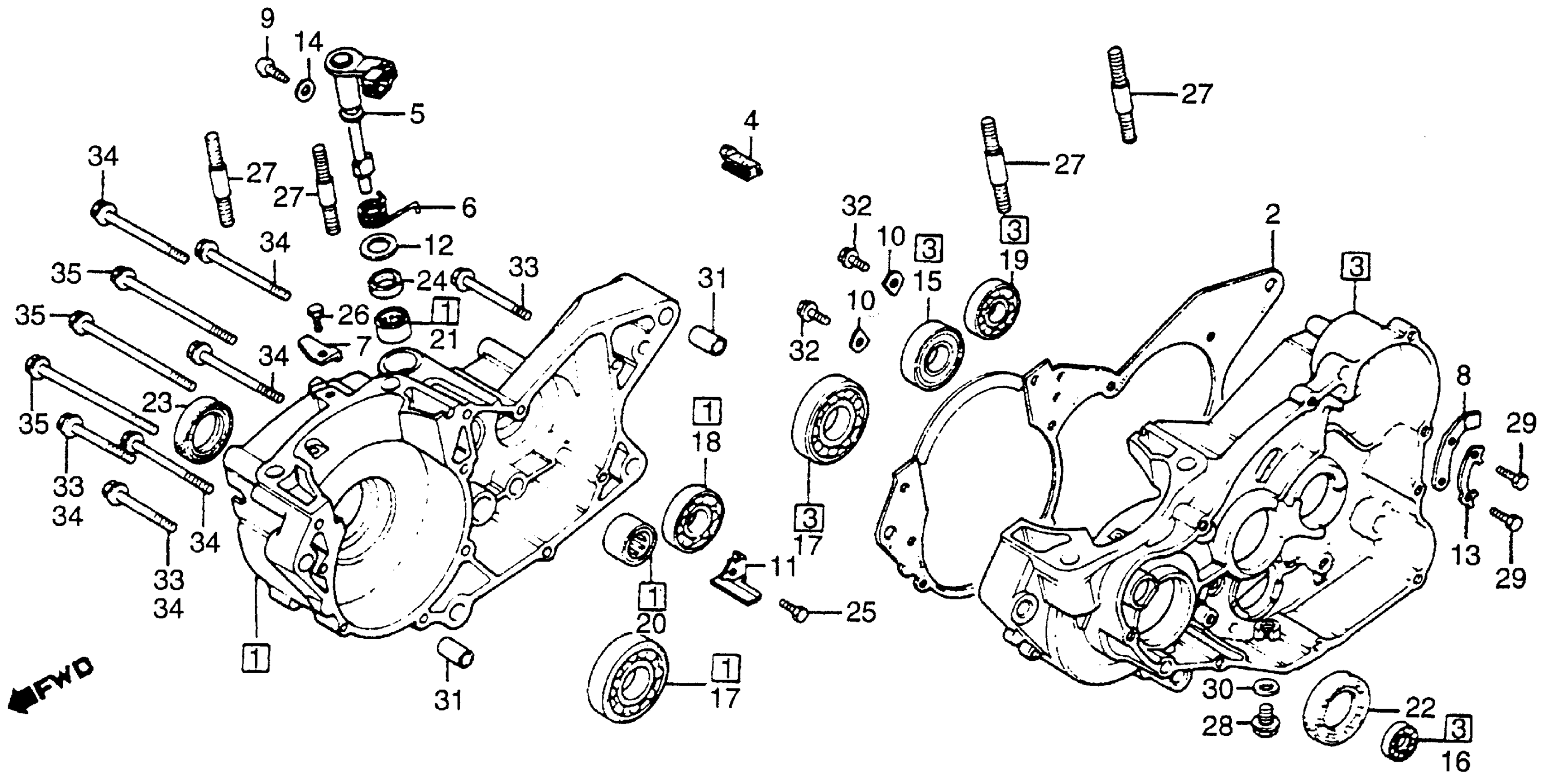

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY., R.

111A0-KA4-710

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KA4-700.

11191-KA4-307

Unavailable

3

CRANKCASE ASSY., L. (NOT AVAILABLE) This part replaces 112A0-KA4-710.

112A0-KA4-711

Unavailable

3

CRANKCASE ASSY., L. (NOT AVAILABLE)

112A0-KA4-711

Unavailable

4

GROMMET, BREATHER (NOT AVAILABLE)

11206-KA4-700

Unavailable

5

LIFTER, CLUTCH (NOT AVAILABLE)

22810-KA4-000

Unavailable

6

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-KA4-710

Unavailable

7

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22861-KA4-000

Unavailable

8

PLATE, KICK STOPPER (NOT AVAILABLE)

28215-KA4-700

Unavailable

9

BOLT, SPECIAL (6MM)

90035-360-000

Unavailable

10

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

11

TRAY, OIL CATCH (NOT AVAILABLE)

90442-KA4-700

Unavailable

12

WASHER, THRUST (16MM) (NOT AVAILABLE)

90451-122-000

Unavailable

13

WASHER, LOCK (6MM) (NOT AVAILABLE)

90453-KA4-700

Unavailable

14

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

15

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

15

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75

16

BEARING, RADIAL BALL (7X19X6) (TOYO)

91002-KA4-003

$21.67

16

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-004.

91002-KA4-003

$21.67

16

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-005.

91002-KA4-003

$21.67

17

BEARING, RADIAL BALL (63/28) This part replaces 91003-KA4-005.

91009-HC0-003

$31.43

17

BEARING, RADIAL BALL (63/28) This part replaces 91003-961-008.

91009-HC0-003

$31.43

17

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

18

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91003-358-004.

91002-KY4-901

$24.38

19

BEARING, RADIAL BALL (17X42X12) (TOYO) This part replaces 91004-357-010.

91005-MG3-003

Unavailable

19

BEARING, RADIAL BALL (17X42X12) (TOYO)

91005-MG3-003

Unavailable

20

BEARING, NEEDLE (20X33X15) (TOYO) (NOT AVAILABLE) This part replaces 91020-430-004.

91020-430-008

$16.43

20

BEARING, NEEDLE (20X33X15) (TOYO) (NOT AVAILABLE)

91020-430-008

$16.43

21

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

22

OIL SEAL (38X58X11) (NIPPON) This part replaces 91201-KA4-003.

91201-KA4-004

$20.36

22

OIL SEAL (38X58X11) (NIPPON)

91201-KA4-004

$20.36

23

OIL SEAL (28X45X8)

91203-444-003

Unavailable

24

DUST SEAL (16X22X3.2) This part replaces 91206-329-000.

91251-964-000

$6.19

24

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

24

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

25

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

27

BOLT 2, STUD (10X45) This part replaces 92700-10070-3B.

92900-10045-3B

$2.15

27

BOLT 2, STUD (10X45)

92900-10045-3B

$2.15

28

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

29

BOLT, HEX. (6X16) This part replaces 93000-06016.

93101-06016-0A

Unavailable

29

BOLT, HEX. (6X16)

93101-06016-0A

Unavailable

29

BOLT, HEX. (6X16) This part replaces 93300-06016.

93101-06016-0A

Unavailable

30

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

31

PIN A, DOWEL (14X20)

94301-14200

$2.28

32

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

32

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

33

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

33

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

34

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

34

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

35

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

35

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
