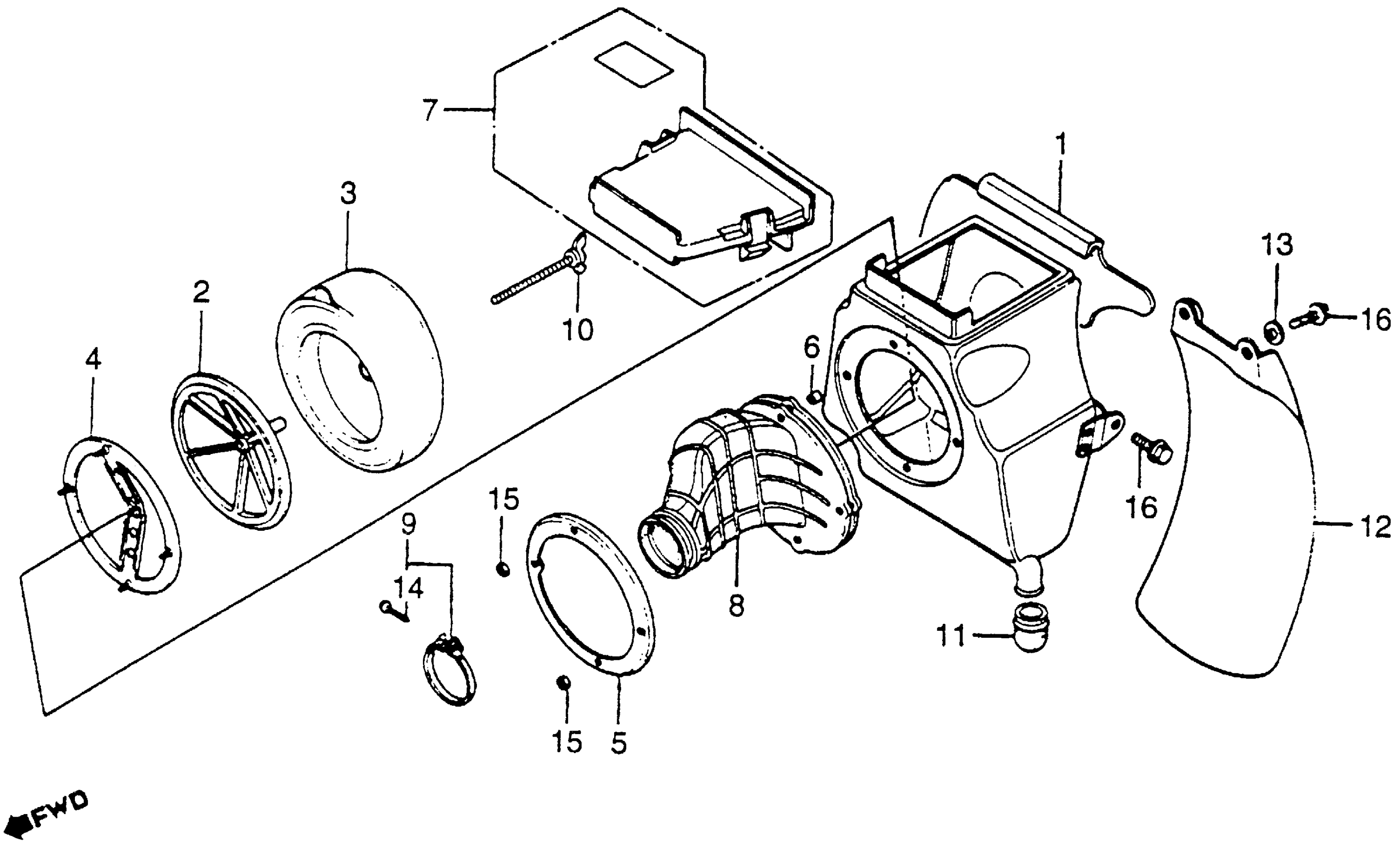

Honda CR250RA (83) MOTORCYCLE, JPN, VIN# JH2ME030-DC500016 TO JH2ME030-DC505429 AIR CLEANER 83 Diagram

HOUSING, AIR CLEANER | Use up to Frame SN DC503036 This part replaces 17210-KA4-710.

17210-KA4-711

Unavailable

HOUSING, AIR CLEANER | Use up to Frame SN DC503036

17210-KA4-711

Unavailable

HOUSING, AIR CLEANER

17210-KA4-711

Unavailable

BASE, ELEMENT

17212-KA4-700

Unavailable

ELEMENT, AIR CLEANER

17213-KA4-700

Unavailable

STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17215-KA4-700

Unavailable

PLATE, FR. AIR CLEANER HOUSING

17217-KA4-700

Unavailable

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.43

COVER SUB-ASSY., AIR CLEANER HOUSING (NOT AVAILABLE)

17224-KA3-680

Unavailable

TUBE, AIR CLEANER CONNECTING

17253-KA4-710

Unavailable

BAND B, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17257-357-000

Unavailable

BOLT, AIR CLEANER ELEMENT SETTING

17291-KA4-700

Unavailable

TUBE, DRAIN (NOT AVAILABLE)

17358-KA3-830

Unavailable

TUBE, DRAIN (NOT AVAILABLE) This part replaces 17358-KA4-000.

17358-KA3-830

Unavailable

SPLASH GUARD, RR. FENDER (NOT AVAILABLE)

80106-KA4-710

Unavailable

WASHER, RR. COVER

90506-425-000

$2.89

SCREW, PAN (4X20)

93500-04020-0H

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
