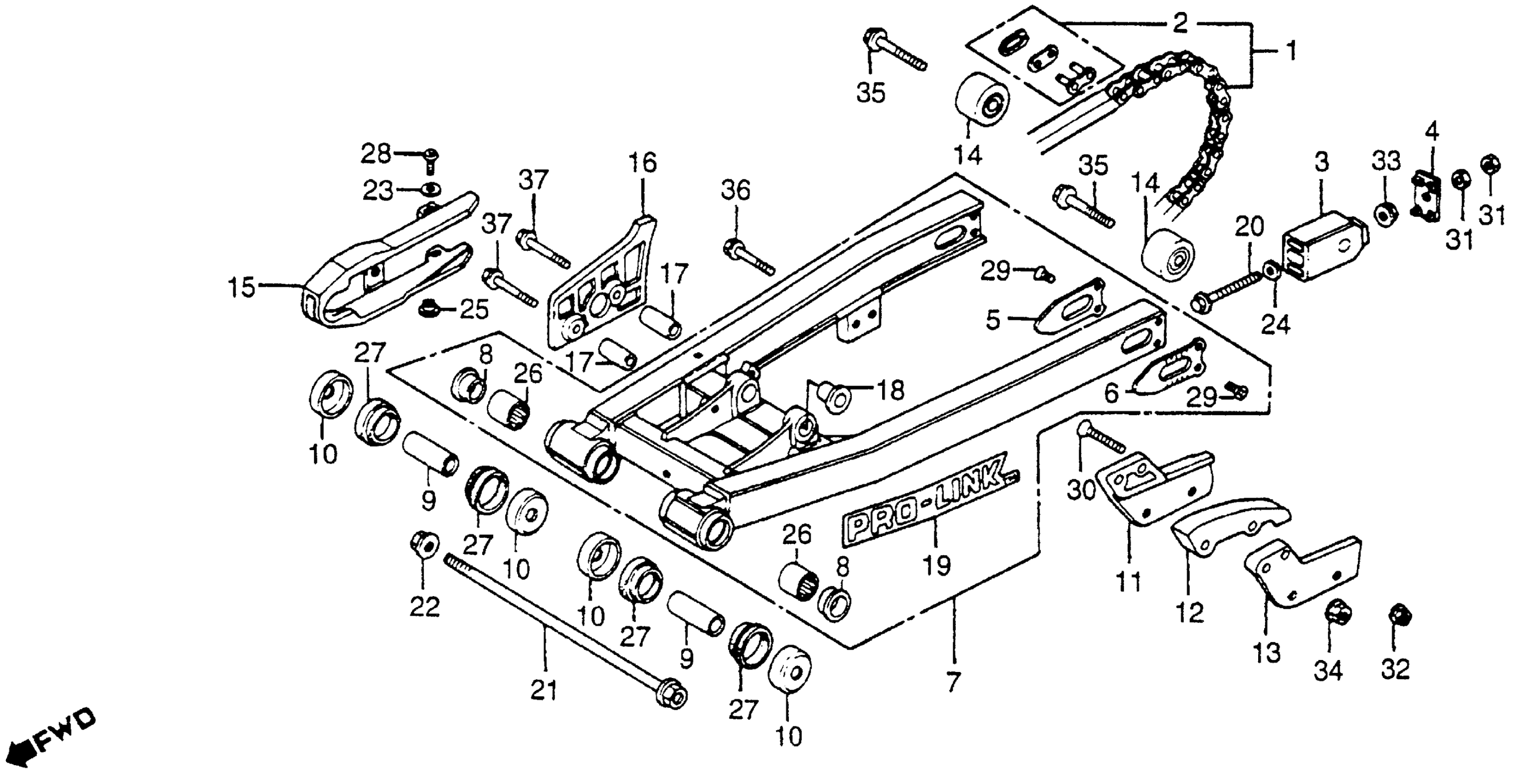

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 SWINGARM + DRIVE CHAIN 82 Diagram

#

Description
Price

1

CHAIN, DRIVE | (Optional).

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-701.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-702.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-444-811.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (520K-Z-114L) | (Optional).

40532-KA4-702

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KS6-315.

405W3-KA4-505

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KA4-702

Unavailable

2

MASTER LINK This part replaces 40531-357-305.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-381-000.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-434-003.

40531-958-003

Unavailable

2

MASTER LINK

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

3

ADJUSTER, CHAIN

40543-KA4-700

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-710

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE) This part replaces 40544-KA4-700.

40544-KA3-710

Unavailable

5

WASHER, SWINGARM INSIDE (NOT AVAILABLE)

42307-KA4-700

Unavailable

6

WASHER, SWINGARM (OUTER) (NOT AVAILABLE)

42308-KA4-700

Unavailable

7

SWINGARM ASSY., RR. | Use up to Frame SN CC401290

52000-KA4-700

Unavailable

7

SWINGARM ASSY., RR. | Use from Frame SN CC401291

52000-KA4-701

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, SWINGARM

52141-KA4-700

Unavailable

10

CAP, DUST SEAL

52144-KA3-731

$14.60

10

CAP, DUST SEAL This part replaces 52144-KA4-701.

52144-KA3-731

$14.60

11

GUIDE, R. CHAIN (NOT AVAILABLE)

52146-KA4-700

Unavailable

12

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-KA4-700

Unavailable

13

GUIDE, L. CHAIN

52156-KA4-700

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA4-700

Unavailable

15

SLIDER, CHAIN (NOT AVAILABLE) | Use up to Frame SN CC401290

52170-KA4-700

Unavailable

15

SLIDER, CHAIN (NOT AVAILABLE) | Use from Frame SN CC401291

52170-KA4-701

Unavailable

16

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA4-701

Unavailable

17

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA4-700

Unavailable

18

WASHER, CUSHION ARM (NOT AVAILABLE)

52464-KA4-700

Unavailable

19

EMBLEM, SWINGARM (NOT AVAILABLE)

87121-MA0-300

Unavailable

20

BOLT, FLANGE (8X72)

90106-KA4-700

Unavailable

21

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA4-000

Unavailable

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

WASHER, STOPPER | Use up to Frame SN CC401290 This part replaces 90483-040-000.

90483-041-000

$1.92

23

WASHER, STOPPER | Use from Frame SN CC401291 This part replaces 90483-040-000.

90483-041-000

$1.92

24

WASHER, CHAIN ADJUSTER

90507-KA4-700

Unavailable

25

WASHER, FR. FENDER SETTING | Use up to Frame SN CC401290

90556-044-000

$3.65

25

WASHER, FR. FENDER SETTING | Use from Frame SN CC401291

90556-044-000

$3.65

26

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

26

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

27

DUST SEAL

91253-KA4-701

$12.86

27

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

28

SCREW, PAN (5X10) | Use up to Frame SN CC401290

93500-05010-0H

$1.49

28

SCREW, PAN (5X10) | Use from Frame SN CC401291

93500-05010-0H

$1.49

29

SCREW, FLAT (5X6) (SOURCE: VINTAGE PARTS INC.)

93600-05006-0A

Unavailable

30

SCREW, FLAT (6X40) (SOURCE: VINTAGE PARTS INC.)

93600-06040-0H

Unavailable

31

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

31

NUT, HEX. (8MM)

94031-08000

$1.49

32

NUT, FLANGE (6MM)

94050-06080

$1.49

33

NUT, FLANGE (8MM)

94050-08000

$1.49

34

NUT, FLANGE (8MM)

94050-08080

$1.49

35

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

35

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

36

BOLT, FLANGE (8X50) This part replaces 95700-08050-08.

95701-08050-08

$2.28

36

BOLT, FLANGE (8X50)

95701-08050-08

$2.28

37

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

37

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
