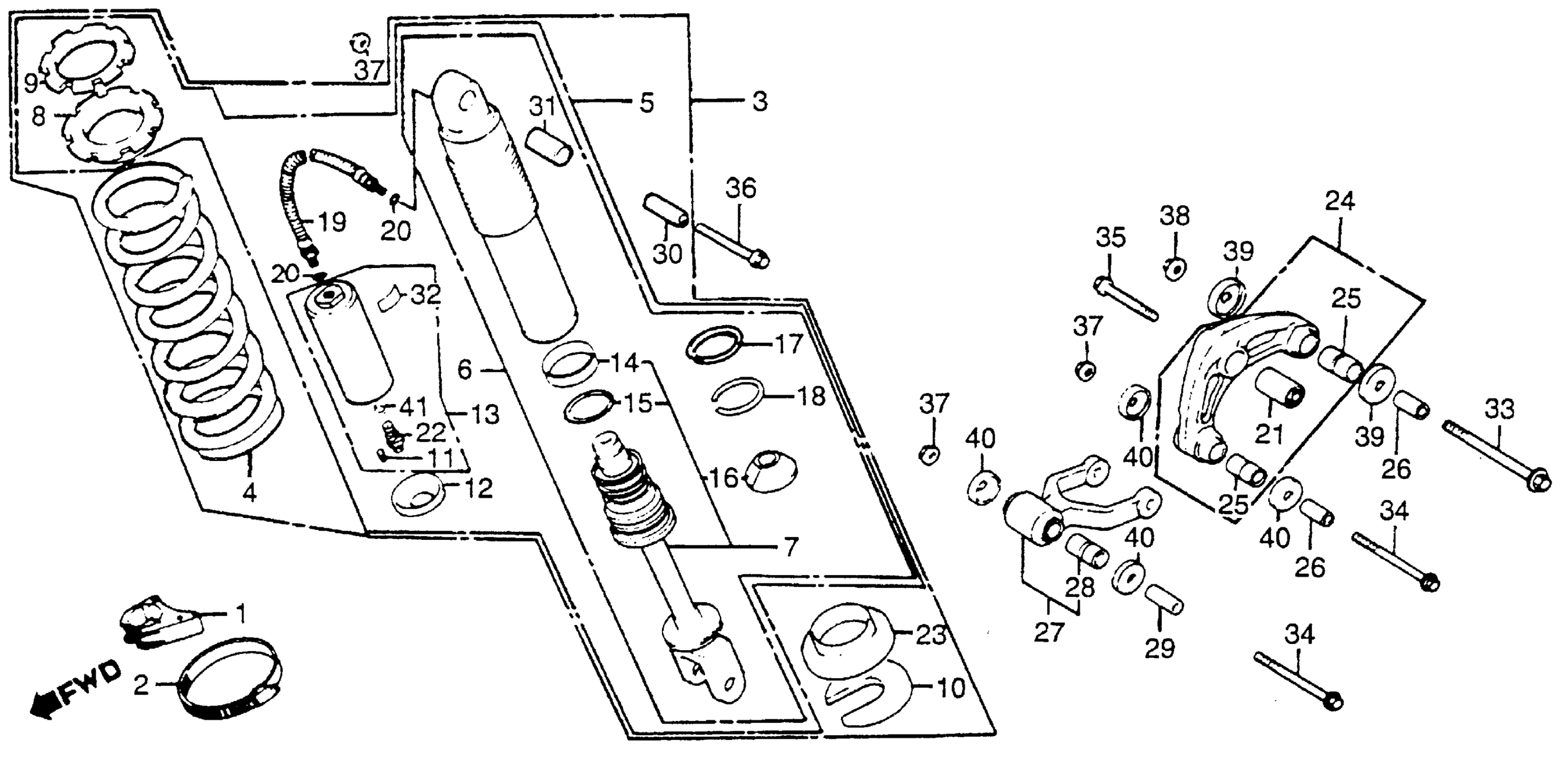

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 REAR SHOCK ABSORBER 82 Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE) This part replaces 50250-KA4-700.

50250-KA3-710

Unavailable

2

BAND, SUB-TANK

50252-KA4-700

Unavailable

3

SHOCK ABSORBER ASSY.

52400-KA4-772

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-KA4-701

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | (Optional).

52402-KA4-701

Unavailable

5

DAMPER, RR. (NOT AVAILABLE)

52410-KA4-772

Unavailable

6

DAMPER UNIT, RR.

52420-KA4-772

Unavailable

7

ROD, PISTON (NOT AVAILABLE)

52421-KA4-771

Unavailable

8

ADJUSTER, SPRING

52422-MA0-003

$39.25

9

NUT, ADJUSTER

52423-MA0-003

Unavailable

10

STOPPER, SPRING SEAT

52424-MA0-003

Unavailable

11

CAP, AIR VALVE

52425-381-771

$5.05

12

CAP, SUB-TANK (NOT AVAILABLE)

52427-MA0-771

Unavailable

13

SUB-TANK ASSY. (NOT AVAILABLE)

52430-KA4-771

Unavailable

14

RING, PISTON

52431-MA0-771

$16.40

15

O-RING (2.0X34.5) (NOT AVAILABLE)

52432-MA0-771

Unavailable

16

RUBBER, STOPPER (NOT AVAILABLE)

52433-MA0-771

Unavailable

17

O-RING (3.5X33.7)

52434-KA3-681

$5.36

17

O-RING (3.5X33.7) This part replaces 52434-MA0-771.

52434-KA3-681

$5.36

18

RING, STOPPER

52435-MA0-771

$4.97

19

HOSE, JOINT

52440-KA4-013

Unavailable

20

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

21

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

22

VALVE ASSY., AIR (NOT AVAILABLE)

52456-KA4-701

Unavailable

23

SEAT C, SPRING

52459-MA0-003

Unavailable

24

ARM ASSY., SHOCK ABSORBER

52460-KA4-700

Unavailable

25

BUSH, DAMPER ARM This part replaces 52462-MA0-003.

52462-MA0-013

Unavailable

25

BUSH, DAMPER ARM

52462-MA0-013

Unavailable

26

COLLAR, DAMPER ARM PIVOT This part replaces 52463-MA0-000.

52463-MA0-010

Unavailable

26

COLLAR, DAMPER ARM PIVOT

52463-MA0-010

Unavailable

27

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52470-KA4-700

Unavailable

28

BUSH, RUBBER CONNECTING ROD This part replaces 52472-MA0-003.

52472-MA0-013

$29.48

28

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

29

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-000.

52473-MA0-020

$16.68

29

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

30

COLLAR, SHOCK ABSORBER (UPPER)

52486-MA0-013

Unavailable

31

BUSH, SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52489-MA0-003

Unavailable

32

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

33

BOLT, FLANGE (12X105)

90128-KA4-003

Unavailable

34

BOLT, FLANGE (10X69)

90129-MA0-003

Unavailable

35

BOLT, FLANGE (10X45) (NOT AVAILABLE)

90153-MA0-003

Unavailable

36

BOLT, SPECIAL FLANGE (10X58) This part replaces 90182-KA4-003.

90153-965-000

$6.87

37

NUT, AXLE (10MM)

90304-GA6-003

$2.89

38

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

38

NUT, FLANGE (12MM)

90306-181-761

$6.08

39

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-003.

91261-964-671

$7.99

39

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-005.

91261-964-671

$7.99

39

SEAL, CUSHION ARM PIVOT

91261-964-671

$7.99

40

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-005.

91262-MA0-015

$11.15

40

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-013.

91262-MA0-015

$11.15

40

SEAL, RR. SHOCK ABSORBER CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

41

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

41

O-RING (5.8X1.9)

91305-323-000

$2.92

41

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67
