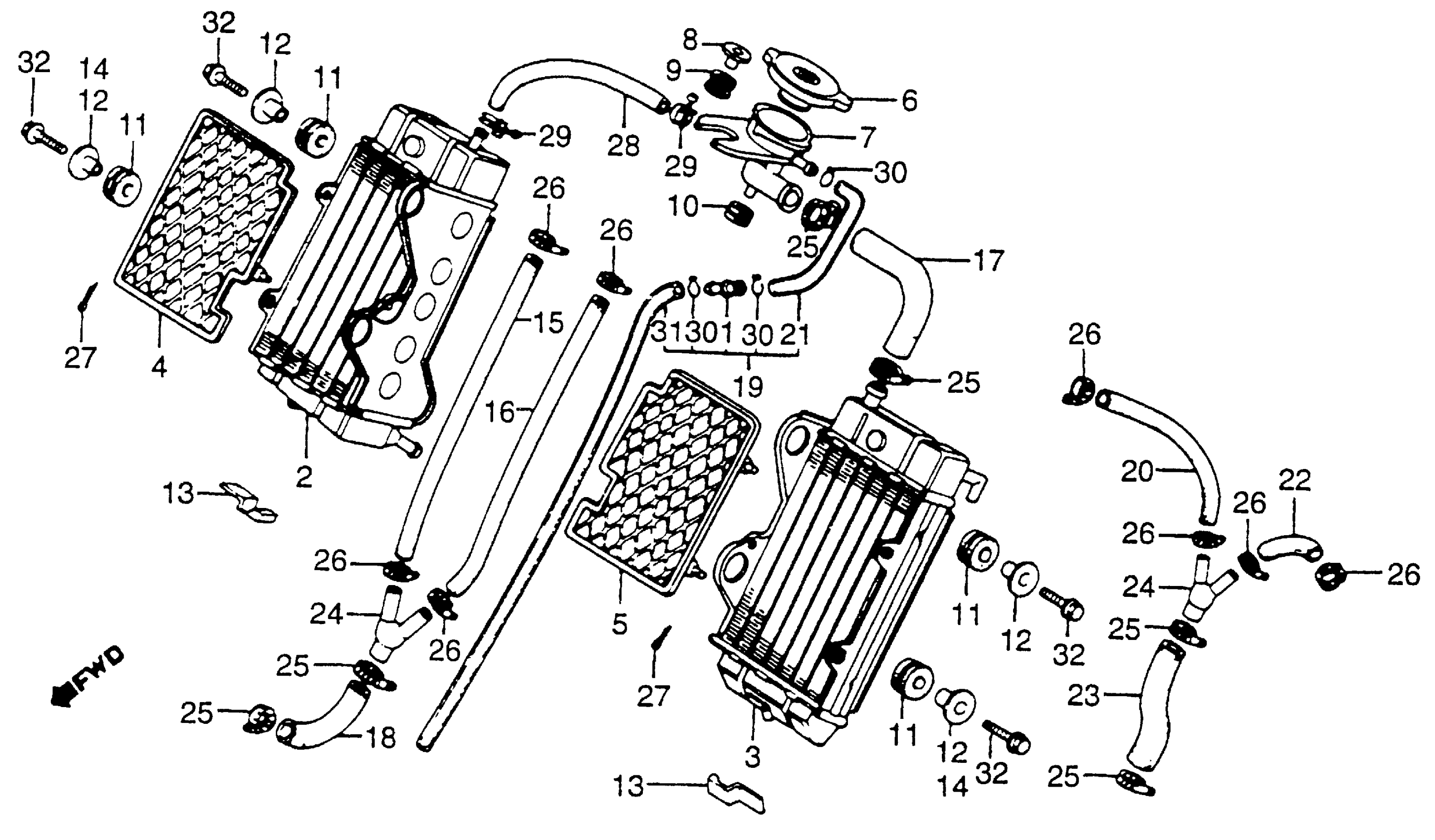

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 RADIATOR 82 Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.95

2

RADIATOR, R. (NOT AVAILABLE)

19010-KA4-701

Unavailable

3

RADIATOR, L. (NOT AVAILABLE)

19015-KA4-701

Unavailable

4

GRILLE, R. RADIATOR | Use up to Frame SN CC300041 This part replaces 19033-KA4-701.

19033-KA4-702

Unavailable

4

GRILLE, R. RADIATOR

19033-KA4-702

Unavailable

5

GRILLE, L. RADIATOR (NOT AVAILABLE) | Use up to Frame SN CC300041 This part replaces 19034-KA4-701.

19034-KA4-702

Unavailable

5

GRILLE, L. RADIATOR (NOT AVAILABLE)

19034-KA4-702

Unavailable

6

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

7

NECK, FILLER (TOYO) (NOT AVAILABLE)

19039-KA4-701

Unavailable

8

COLLAR, RADIATOR CAP MOUNTING (NOT AVAILABLE)

19041-KA4-700

Unavailable

9

RUBBER A, RADIATOR CAP MOUNTING (NOT AVAILABLE)

19042-KA4-700

Unavailable

10

RUBBER B, RADIATOR CAP MOUNTING

19043-KA4-700

Unavailable

11

RUBBER, RADIATOR SETTING

19051-KA4-700

$3.25

12

COLLAR, RADIATOR SETTING (NOT AVAILABLE) | Use up to Frame SN CC400025

19052-KA4-700

$6.57

13

RUBBER, RADIATOR MOUNTING (NOT AVAILABLE)

19054-KA4-700

Unavailable

14

COLLAR B, RADIATOR MOUNTING | Use from Frame SN CC400026

19055-KA4-700

Unavailable

15

HOSE A, WATER (NOT AVAILABLE)

19061-KA4-701

Unavailable

16

HOSE B, WATER (NOT AVAILABLE)

19062-KA4-701

$22.64

17

HOSE C, WATER (NOT AVAILABLE)

19063-KA4-701

Unavailable

18

HOSE D, WATER (NOT AVAILABLE)

19064-KA4-701

Unavailable

19

TUBE ASSY., RADIATOR (NOT AVAILABLE)

19065-KA3-000

Unavailable

20

HOSE E, WATER

19065-KA4-700

$11.00

21

TUBE, OVERFLOW

19066-KA3-000

Unavailable

22

HOSE F, WATER (NOT AVAILABLE)

19066-KA4-701

Unavailable

23

HOSE, WATER (G) (NOT AVAILABLE)

19067-KA4-701

Unavailable

24

JOINT, WATER HOSE (NOT AVAILABLE)

19069-KA4-700

Unavailable

25

CLAMP, WATER HOSE

19506-KA4-000

$9.18

26

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

26

CLAMP A, WATER HOSE This part replaces 19507-KA4-700.

19505-KS6-700

$11.06

27

PIN, LOCK (6MM) | Use from Frame SN CC300042

94251-06000

$1.49

28

BULK HOSE, FUEL (7.5X8000) (7.3X100)

95001-75008-60M

$103.82

29

CLIP, TUBE (A13)

95002-01130

$4.17

30

CLIP, TUBE (B12)

95002-02120

$2.00

31

TUBE, VINYL (8X12X3000) (8X12X600)

95003-23003-10M

$14.69

32

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

32

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
