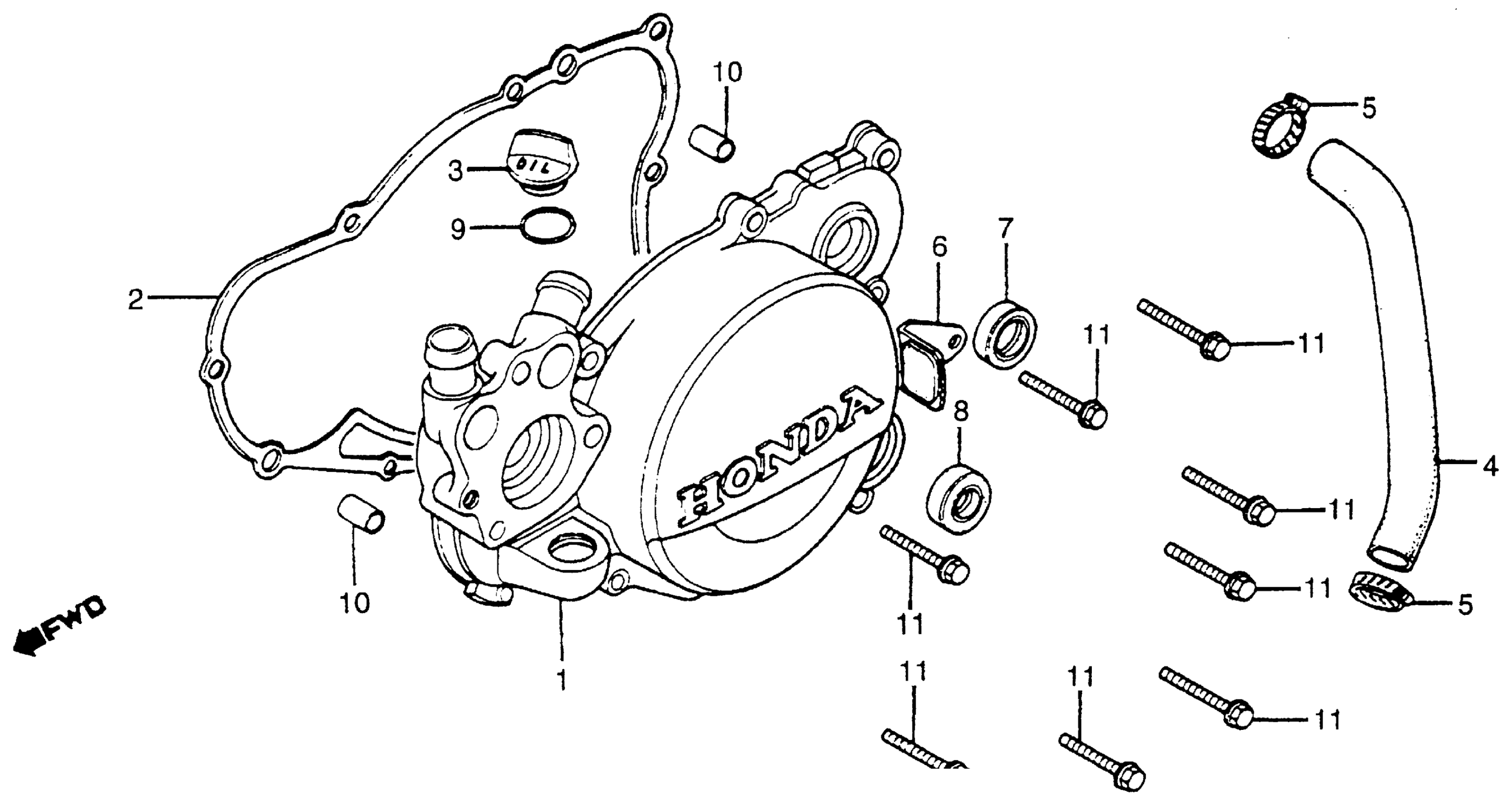

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-KA4-700

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-KA4-000.

11395-KA4-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-KA4-306

Unavailable

3

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

4

HOSE, WATER (NOT AVAILABLE)

19501-KA4-000

Unavailable

5

CLAMP, WATER HOSE

19506-KA4-000

$9.18

6

PROTECTOR, L. CRANKCASE COVER (NOT AVAILABLE) | (Optional).

28283-KA4-305

Unavailable

7

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

7

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

8

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

9

O-RING (16MM)

91303-800-000

$2.23

9

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

10

PIN A, DOWEL (10X14)

94301-10140

$2.28

11

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

11

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
