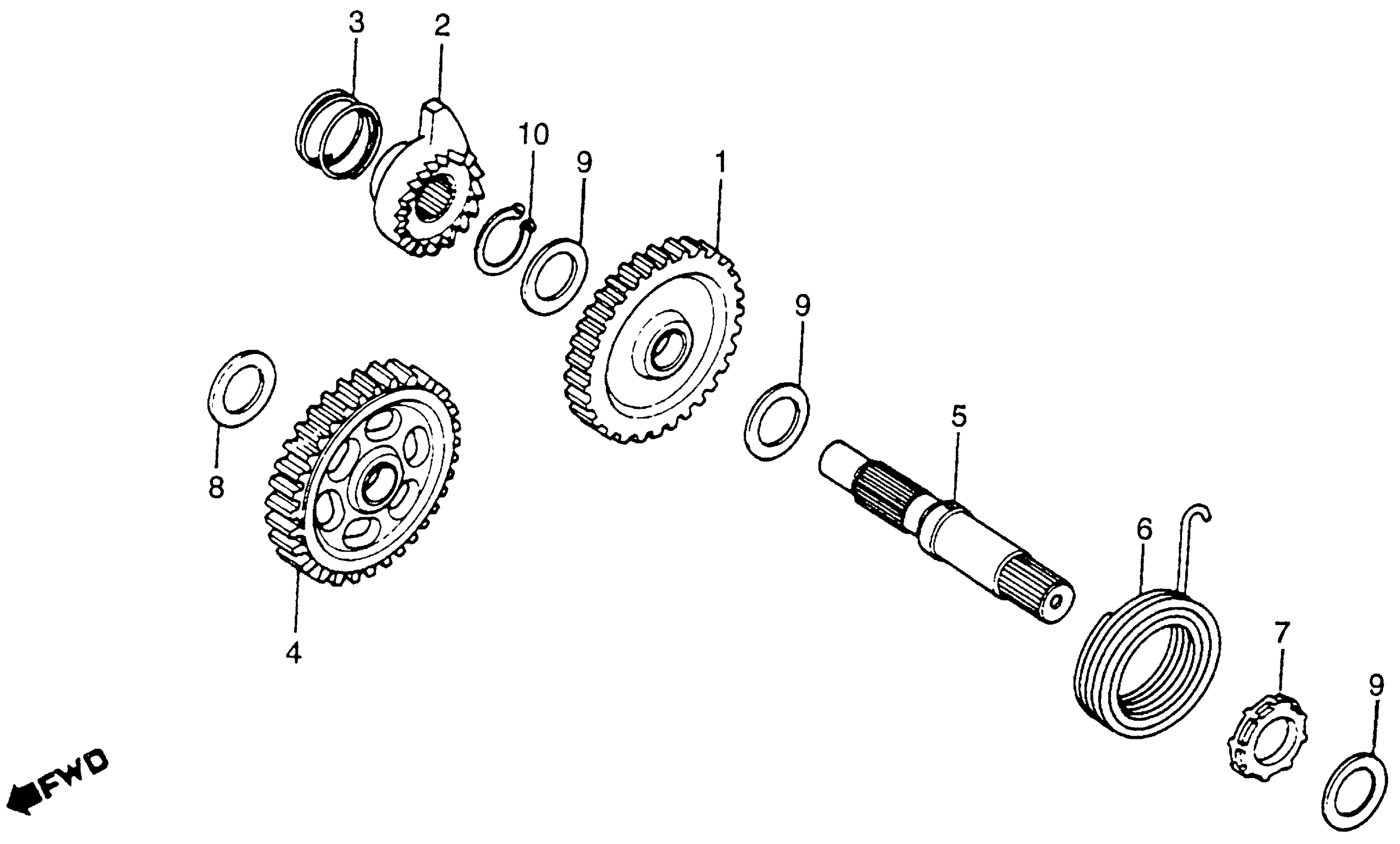

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 KICK STARTER SPINDLE 82-83 Diagram

PINION, KICK STARTER (27T) (NOT AVAILABLE)

28210-KA4-700

Unavailable

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-KA4-700

Unavailable

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-KA4-000

Unavailable

IDLER, KICK (30T) (NOT AVAILABLE)

28230-KA4-700

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-KA4-700

Unavailable

SPRING, KICK RETURN (NOT AVAILABLE)

28261-KA4-000

Unavailable

COLLAR, KICK SPRING This part replaces 28282-KA4-000.

28282-KA4-505

Unavailable

WASHER, THRUST (17MM)

90452-178-000

$4.17

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49
