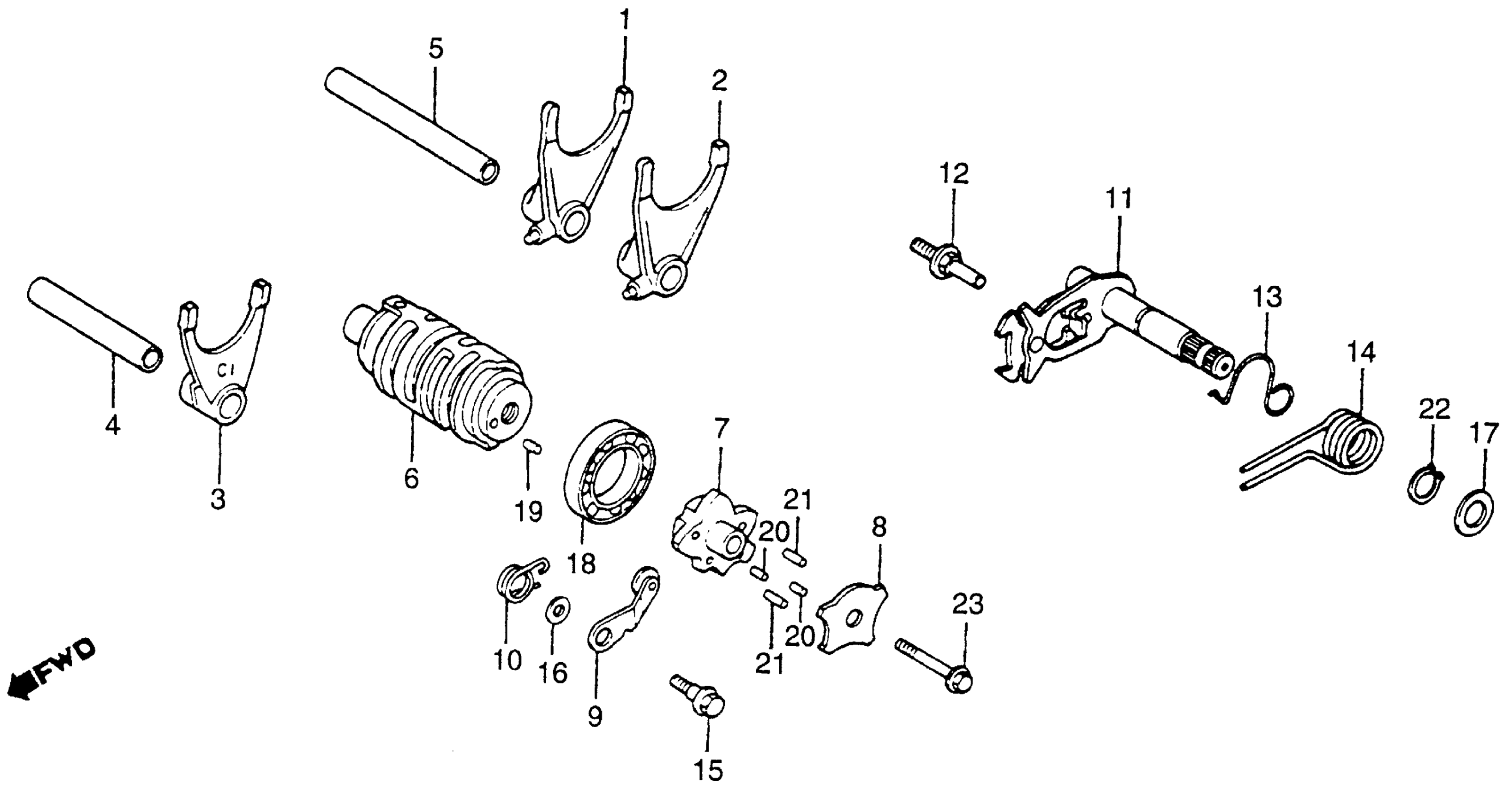

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-KA4-700

Unavailable

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-KA4-700

Unavailable

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24231-KA4-700

Unavailable

SHAFT A, GEARSHIFT FORK (NOT AVAILABLE)

24265-430-000

Unavailable

SHAFT B, GEARSHIFT FORK

24266-430-000

Unavailable

DRUM, GEARSHIFT (NOT AVAILABLE)

24311-KA4-700

Unavailable

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

24312-KA4-013

Unavailable

PLATE, DRUM STOPPER CAM

24313-KA4-000

Unavailable

STOPPER, DRUM (NOT AVAILABLE)

24430-KA4-000

Unavailable

SPRING, DRUM STOPPER (NOT AVAILABLE)

24436-KA4-000

Unavailable

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-KA4-010

Unavailable

PIN, RETURN SPRING (NOT AVAILABLE)

24615-KA4-000

Unavailable

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-329-000

Unavailable

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14.2MM)

90451-115-000

$2.92

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$27.55

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-004.

91004-GC4-731

$27.55

ROLLER (4X8) This part replaces 91041-KA4-003.

96220-40080

$1.49

ROLLER (4X8)

96220-40080

$1.49

ROLLER (4X11.8) (NOT AVAILABLE)

91042-KA4-003

Unavailable

ROLLER (4X15.8) (NOT AVAILABLE)

91043-KA4-003

$2.26

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (8X40) This part replaces 95800-08040-00.

95801-08040-00

$1.49

BOLT, FLANGE (8X40)

95801-08040-00

$1.49
