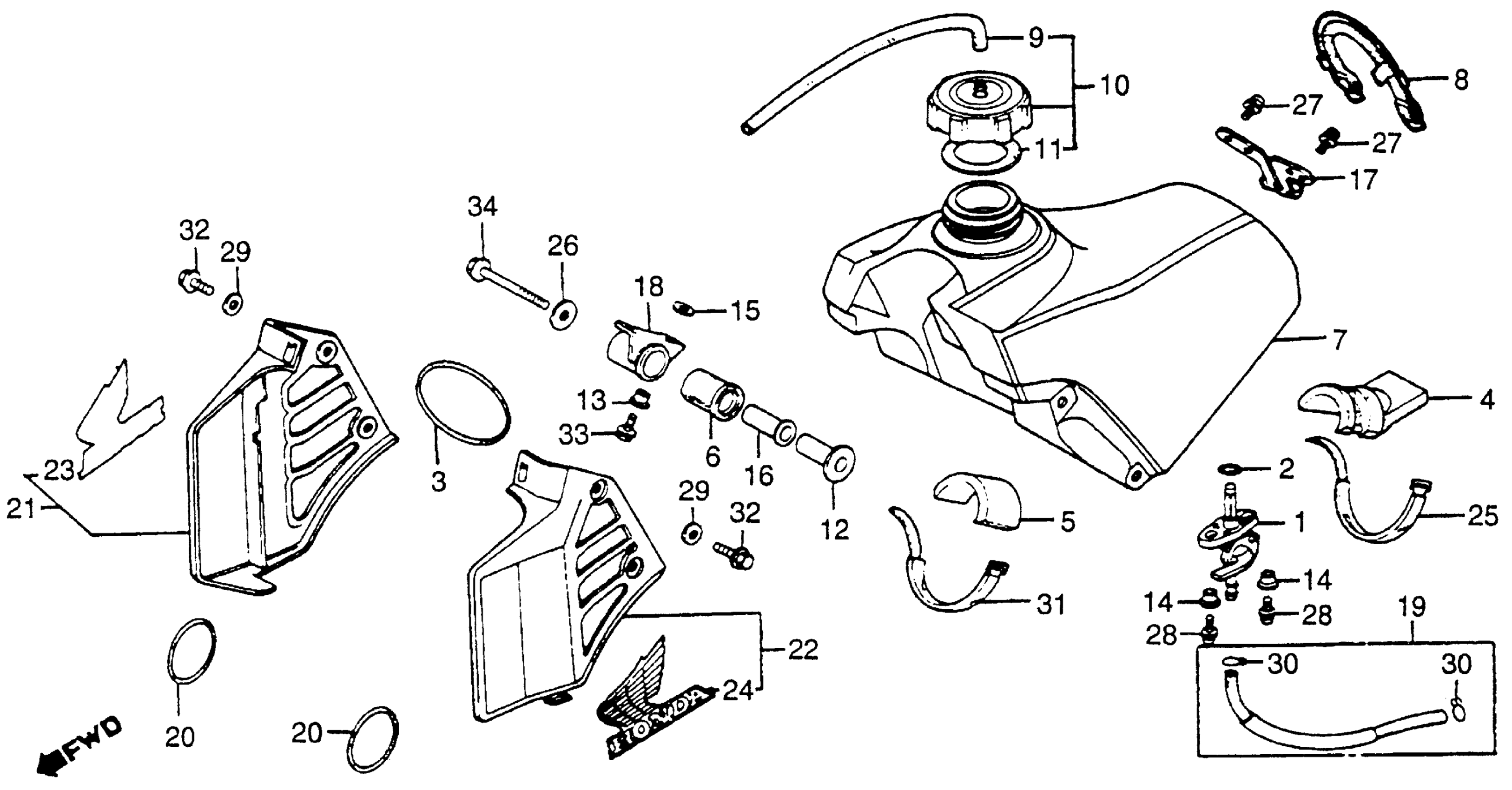

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 FUEL TANK + RADIATOR SHROUD 82 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-005.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

BAND, AIR CLEANER CAP (NOT AVAILABLE) | Use from Frame SN CC400026

17215-444-000

Unavailable

4

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17504-KA4-000

Unavailable

5

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

6

RUBBER, FUEL TANK SETTING (NOT AVAILABLE)

17508-KA4-000

Unavailable

7

TANK, FUEL (NOT AVAILABLE)

17510-KA4-700

Unavailable

8

BAND, RR. FUEL TANK (NOT AVAILABLE)

17516-KA4-000

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17620-KA4-000.

17620-KA4-710

Unavailable

10

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17620-KA4-710

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17625-KA4-700

Unavailable

13

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

14

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

15

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

16

COLLAR, SLIDER (NOT AVAILABLE)

17628-KA4-000

Unavailable

17

BRACKET, RR. FUEL TANK (NOT AVAILABLE)

17629-KA4-700

Unavailable

18

BRACKET, FR. FUEL TANK (NOT AVAILABLE)

17634-KA5-770

Unavailable

19

TUBE ASSY., FUEL (NOT AVAILABLE)

17681-KA4-700

Unavailable

20

BAND, RADIATOR SHROUD (NOT AVAILABLE)

19053-KA4-700

Unavailable

21

SHROUD SUB-ASSY., R. RADIATOR (NOT AVAILABLE) | Use up to Frame SN CC400025 This part replaces 19071-KA4-700.

19071-KA4-701

Unavailable

21

SHROUD SUB-ASSY., R. RADIATOR (NOT AVAILABLE)

19071-KA4-701

Unavailable

22

SHROUD SUB-ASSY., L. RADIATOR (NOT AVAILABLE) | Use up to Frame SN CC400025 This part replaces 19072-KA4-700.

19072-KA4-701

Unavailable

22

SHROUD SUB-ASSY., L. RADIATOR (NOT AVAILABLE)

19072-KA4-701

Unavailable

23

EMBLEM, R. RADIATOR SHROUD (NOT AVAILABLE)

87126-KA4-700

Unavailable

24

EMBLEM, L. RADIATOR SHROUD (NOT AVAILABLE)

87127-KA4-700

Unavailable

25

BAND, WIRE

90130-KA4-000

Unavailable

26

WASHER, FENDER SETTING

90506-430-000

$2.92

27

SCREW, PAN (6X12)

93500-06012-0H

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012-08.

93500-06012-0H

$1.49

28

SCREW, PAN (6X16)

93500-06016-0H

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

CLIP, TUBE (B12)

95002-02120

$2.00

31

BAND B3, CABLE HARNESS

95014-62300

$2.25

32

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

32

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

33

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

33

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

34

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

34

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
