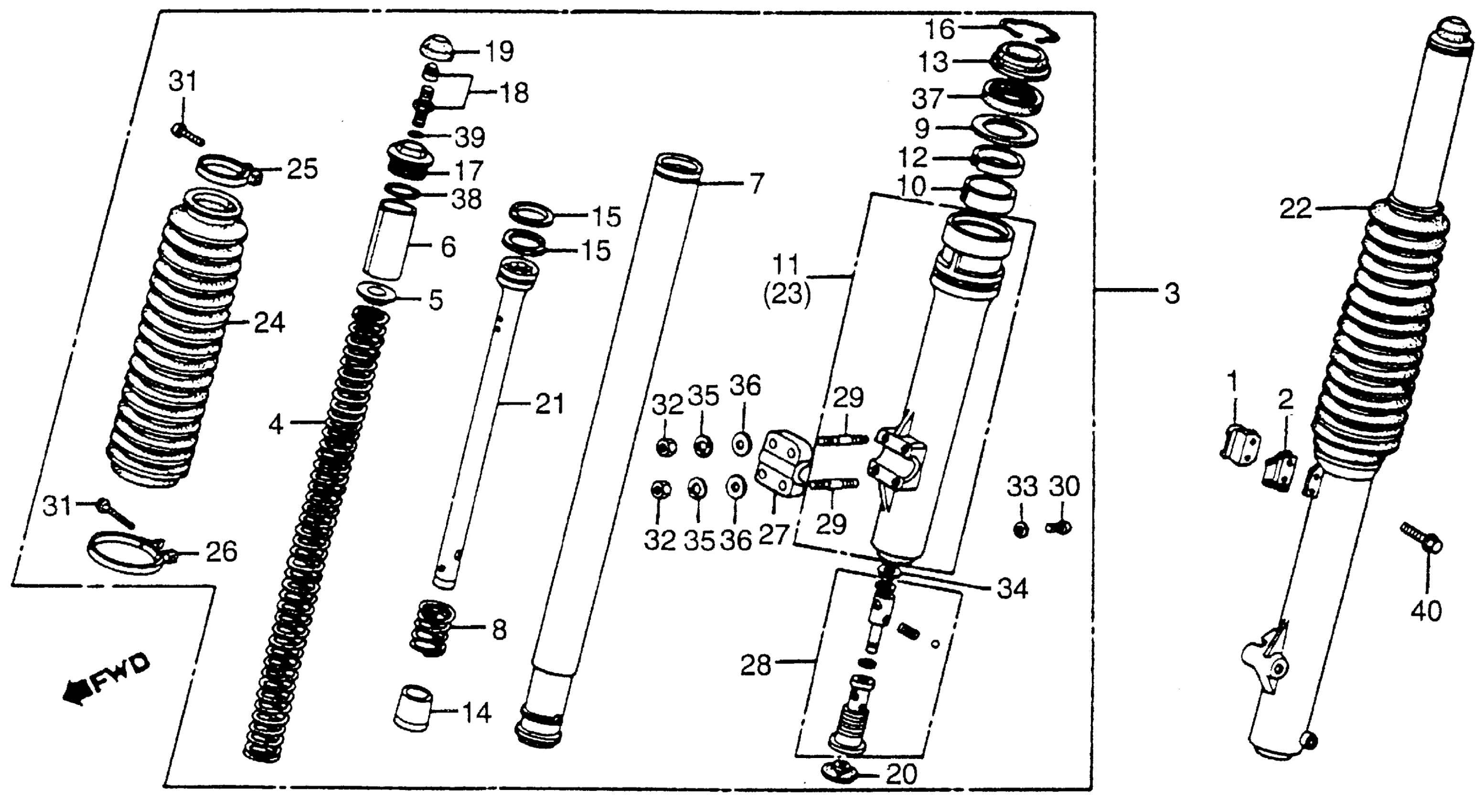

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 FRONT FORK 82 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

1

CLAMP A, FR. BRAKE CABLE This part replaces 45461-KA4-701.

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE (NOT AVAILABLE)

45462-KA4-700

Unavailable

3

FORK ASSY., R. FR. (KAYABA)

51400-KA4-701

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-KA4-701

Unavailable

5

GUIDE, SPRING (NOT AVAILABLE)

51403-KA4-701

Unavailable

6

SPACER, SPRING (NOT AVAILABLE)

51404-KA4-701

Unavailable

7

PIPE, FR. FORK

51410-KA4-701

Unavailable

8

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51411-KA4-701

Unavailable

9

WASHER (NOT AVAILABLE)

51412-KA4-701

Unavailable

10

SLEEVE, FORK PIPE

51415-KA3-731

Unavailable

10

SLEEVE, FORK PIPE This part replaces 51415-KA4-701.

51415-KA3-731

Unavailable

11

CASE, R. (LOWER)

51421-KA4-701

Unavailable

12

BUSH, FORK PIPE

51424-KA4-701

Unavailable

13

DUST SEAL, FR. FORK

51425-KA3-731

Unavailable

13

DUST SEAL, FR. FORK This part replaces 51425-KA4-701.

51425-KA3-731

Unavailable

14

PIECE, OIL LOCK (NOT AVAILABLE)

51432-KA4-701

Unavailable

15

RING, PISTON (NOT AVAILABLE)

51437-KA4-701

Unavailable

16

RING, OIL SEAL STOP This part replaces 51447-KA4-701.

51447-KZ4-711

$5.04

16

RING, OIL SEAL STOP

51447-KZ4-711

$5.04

17

BOLT, FR. FORK (NOT AVAILABLE)

51455-KA4-701

Unavailable

18

VALVE ASSY., AIR (NOT AVAILABLE)

51456-KA4-004

Unavailable

19

CAP, FORK BOLT (NOT AVAILABLE)

51457-KA4-004

Unavailable

20

CAP, ADJUSTING BOLT (NOT AVAILABLE)

51461-KA4-701

Unavailable

21

PIPE, SEAT

51470-KA4-701

Unavailable

22

FORK ASSY., L. FR. (KAYABA)

51500-KA4-701

Unavailable

23

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-KA4-701

Unavailable

24

BOOT, FR. FORK (NOT AVAILABLE)

51611-KA4-701

Unavailable

25

BAND, FR. FORK BOOT (NOT AVAILABLE)

51612-KA4-701

Unavailable

26

BAND, BOOT (LOWER) (NOT AVAILABLE)

51613-KA4-701

Unavailable

27

HOLDER, AXLE This part replaces 51634-KA3-731.

51634-KT0-671

Unavailable

27

HOLDER, AXLE This part replaces 51634-KA4-004.

51634-KT0-671

Unavailable

27

HOLDER, AXLE

51634-KT0-671

Unavailable

28

BOLT, SOCKET (NOT AVAILABLE)

90116-KA4-701

Unavailable

29

BOLT, STUD (6X34)

90136-KA3-831

$4.51

29

BOLT, STUD (6X34) This part replaces 90136-KA4-004.

90136-KA3-831

$4.51

30

SCREW, PAN (4X8) (NOT AVAILABLE)

90201-KA4-004

Unavailable

30

SCREW, PAN (4X8)

93500-04008-0A

$1.49

31

SCREW, PAN (4X16)

90202-KA4-004

$2.48

31

SCREW, PAN (4X26)

93500-04016-0A

$1.49

32

NUT, HEX. (6MM) (NOT AVAILABLE)

90310-KA4-004

Unavailable

32

NUT, HEX. (6MM) This part replaces 94001-06020.

94001-06020-0S

$1.49

32

NUT, HEX. (6MM)

94001-06020-0S

$1.49

33

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

34

WASHER

90544-KA4-701

Unavailable

35

WASHER, SPRING (6MM) (NOT AVAILABLE)

90545-KA4-004

Unavailable

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

WASHER, PLAIN (6MM)

90546-KA4-004

$2.48

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

OIL SEAL (43X55X10.5)

91255-KA4-701

Unavailable

38

O-RING (33.7X3.5) (NOT AVAILABLE)

91356-KA4-701

Unavailable

39

O-RING (5.8X1.9)

91357-KA4-004

$2.48

40

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

40

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
