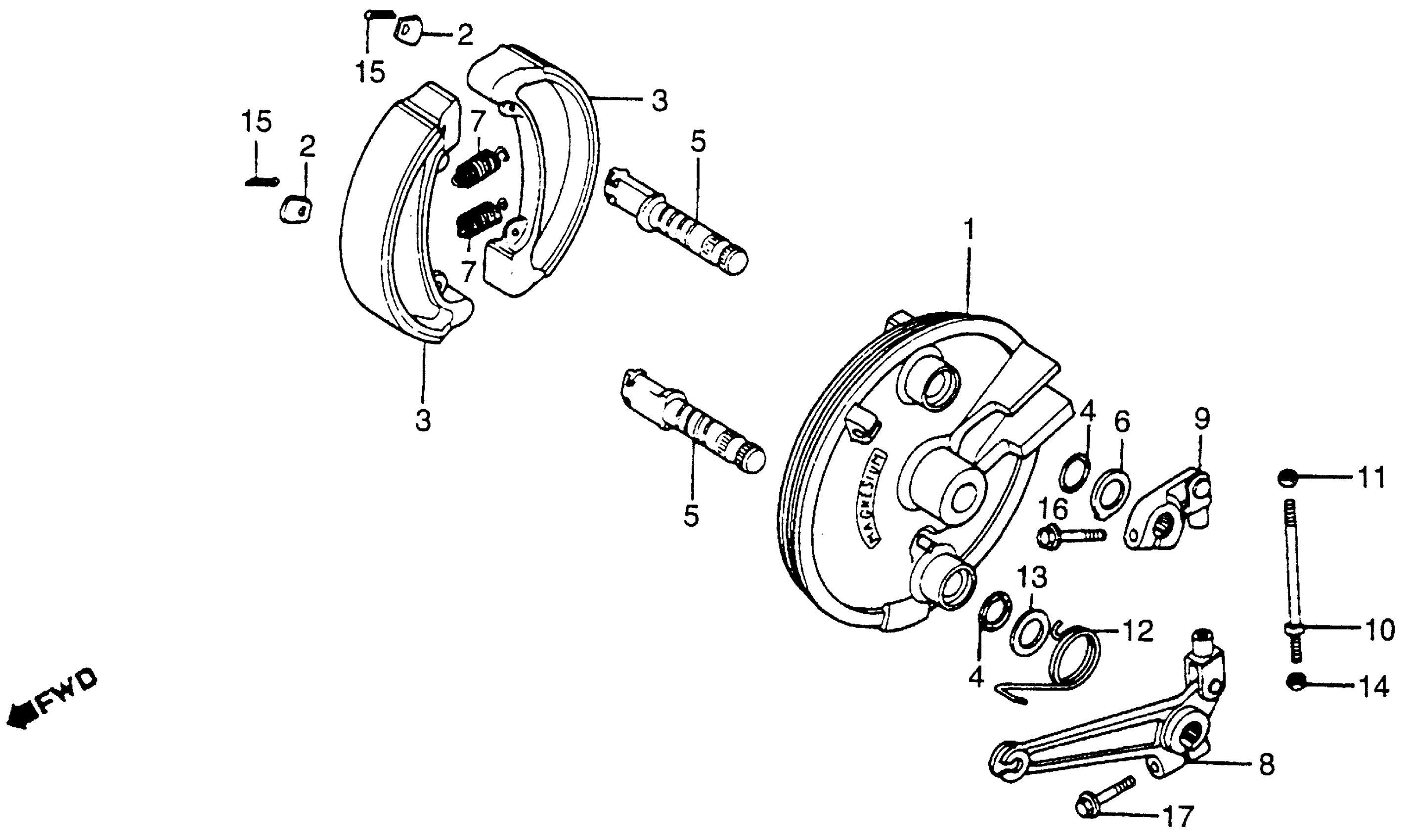

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 FRONT BRAKE PANEL 82 Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06450-KA4-405.

06450-MA0-406

Unavailable

NI

SHOE KIT, BRAKE

06450-MA0-406

Unavailable

NI

SHOE KIT, BRAKE This part replaces 451A2-KA4-701.

06450-MA0-406

Unavailable

1

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-MA0-771

Unavailable

2

WASHER, ANCHOR PIN (NOT AVAILABLE)

45106-MA0-000

Unavailable

3

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KA4-701

Unavailable

4

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

5

CAM, FR. BRAKE (NOT AVAILABLE)

45141-MA0-771

Unavailable

6

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-413-670

Unavailable

7

SPRING, FR. BRAKE SHOE (NOT AVAILABLE)

45151-MA0-770

Unavailable

8

ARM A, FR. BRAKE (NOT AVAILABLE)

45410-KA4-700

Unavailable

9

ARM B, FR. BRAKE (NOT AVAILABLE)

45420-KA4-700

Unavailable

10

ROD, BRAKE ARM CONNECTING (NOT AVAILABLE)

45422-KA4-700

Unavailable

11

NUT, HEX. (6MM)

45423-KA4-700

$1.55

12

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-KA4-700

Unavailable

13

WASHER (14MM)

90509-169-000

Unavailable

13

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

14

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

14

NUT, HEX. (6MM)

94002-06000-0S

$1.49

15

PIN, COTTER (2.0X12)

94201-20120

$1.49

16

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

16

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

17

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

17

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
