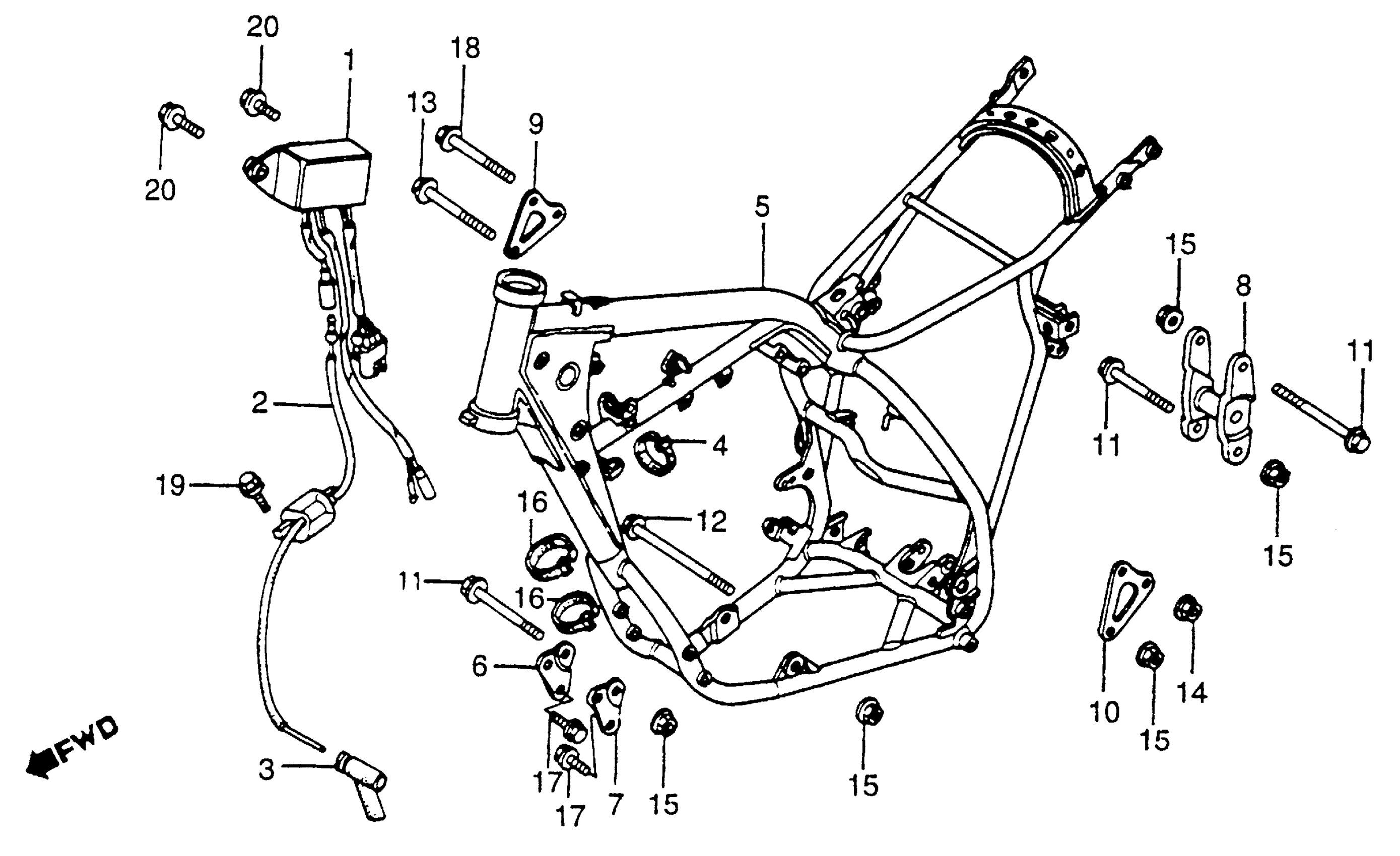

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 FRAME + IGNITION COIL + C.D.I. UNIT 82 Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI)

30400-KA4-701

Unavailable

2

COIL, IGNITION (NOT AVAILABLE) This part replaces 30500-KA4-003.

30500-KA4-710

Unavailable

2

COIL, IGNITION (NOT AVAILABLE)

30500-KA4-710

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$27.87

4

BAND B1, CABLE

32161-404-000

$2.13

5

FRAME *R23* (TAHITIAN RED)

50100-KA4-701ZA

Unavailable

6

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50351-KA4-700

Unavailable

7

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50352-KA4-700

Unavailable

8

BRACKET, RR. ENGINE

50354-KA4-700

Unavailable

9

BRACKET, R. HEAD HANGER (NOT AVAILABLE)

50401-KA4-701

Unavailable

10

BRACKET, L. HEAD HANGER

50402-KA4-701

Unavailable

11

BOLT, FLANGE (10X90) This part replaces 90016-PA9-000.

95801-10090-08

$3.90

12

BOLT, FLANGE (10X120) (NOT AVAILABLE)

90107-KA4-700

Unavailable

13

BOLT, FLANGE (10X53) (NOT AVAILABLE)

90131-KA4-000

Unavailable

14

NUT, FLANGE (8MM)

94050-08080

$0.86

15

NUT, FLANGE (10MM)

94050-10080

$2.93

16

BAND B1, CABLE

32161-404-000

$2.13

16

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.13

17

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.59

17

BOLT, FLANGE (8X16)

95701-08016-08

$1.59

17

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.59

17

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.59

17

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.59

18

BOLT, FLANGE (8X45) This part replaces 95800-08045-08.

95801-08045-08

$1.28

18

BOLT, FLANGE (8X45)

95801-08045-08

$1.28

19

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

19

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

20

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.64

20

BOLT, FLANGE (6X18)

96001-06018-00

$1.64
