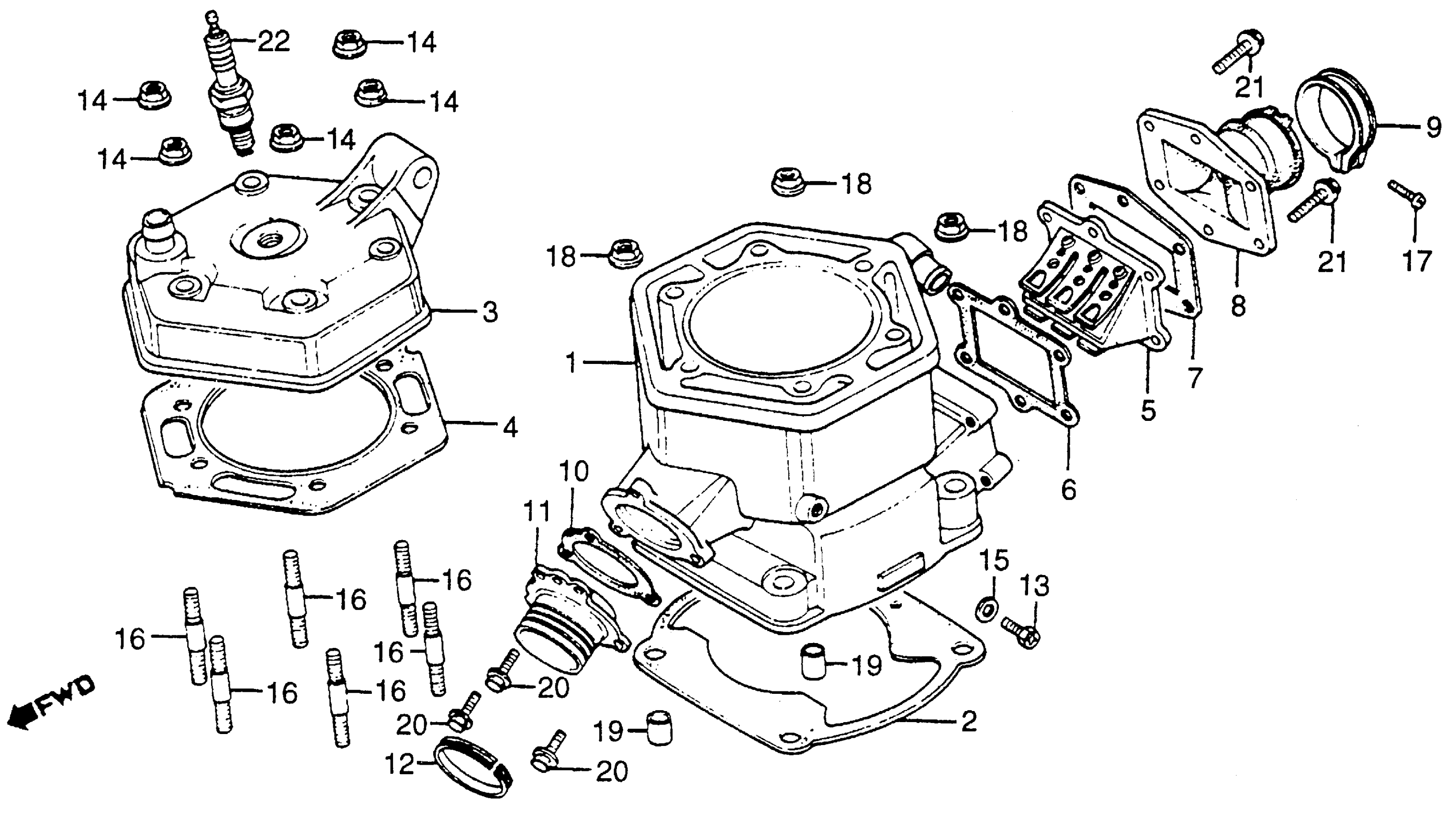

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 CYLINDER HEAD + CYLINDER + REED VALVE 81-82 Diagram

#

Description
Price

1

CYLINDER

12100-KA4-700

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KA4-000.

12191-KA4-306

$5.68

2

GASKET, CYLINDER

12191-KA4-306

$5.68

3

CYLINDER HEAD

12200-KA4-700

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12254-KA4-004.

12254-KA4-306

Unavailable

4

GASKET, CYLINDER HEAD

12254-KA4-306

Unavailable

5

VALVE, REED (ARAI)

14100-467-003

Unavailable

6

GASKET A, REED VALVE

14132-KAE-000

$4.06

6

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

7

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

7

GASKET B, REED VALVE

14133-430-306

$7.64

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16221-KA4-000

Unavailable

9

BAND, INSULATOR This part replaces 16223-KA4-000.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

GASKET, EX. PIPE This part replaces 18291-430-000.

18291-430-306

$4.92

10

GASKET, EX. PIPE

18291-430-306

$4.92

11

JOINT, EX. PIPE

18351-KA4-700

Unavailable

12

SEAL, EX. JOINT

18359-KA4-700

Unavailable

13

BOLT, OIL CHECK

90037-360-000

$3.26

14

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

14

NUT, FLANGE (8MM)

94050-08000

$1.49

15

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

16

BOLT, STUD (8X68) (NOT AVAILABLE)

90031-KA4-000

Unavailable

17

SCREW, PAN (5X20)

93500-05020-0A

$1.49

18

NUT, FLANGE (10MM)

94050-10000

$1.59

19

PIN A, DOWEL (12X20)

94301-12200

$2.29

20

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

20

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

21

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

22

SPARK PLUG (B8EV) (NGK)

98079-58644

$5.80

22

SPARK PLUG (B8EV) (NGK) This part replaces 98079-58654.

98079-58644

$5.80

22

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80

22

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59560.

98079-59679

$5.80

22

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

22

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59654.

98079-59679

$5.80

22

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80

22

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

22

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

22

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80
