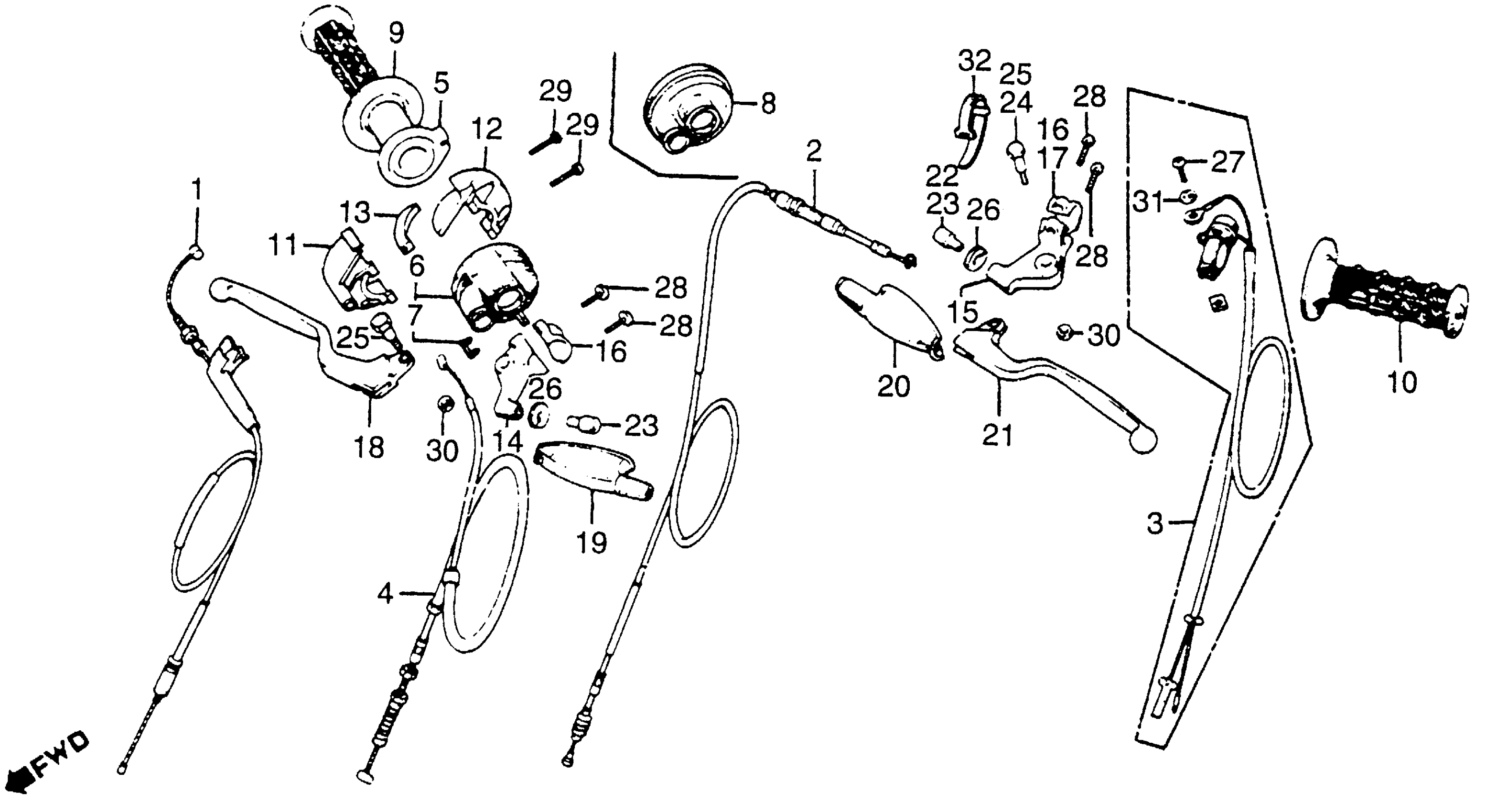

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 CONTROL LEVERS + SWITCHES + CALBES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-KA4-700

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KA4-700.

22870-KA4-710

Unavailable

2

CABLE, CLUTCH

22870-KA4-710

Unavailable

3

SWITCH ASSY., STOP This part replaces 35130-KA4-000.

35130-KZ3-860

$44.30

3

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

3

SWITCH ASSY., STOP This part replaces 35130-444-000.

35130-KZ3-860

$44.30

4

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-KA4-700

Unavailable

5

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-KA4-700

Unavailable

8

COVER, THROTTLE HOUSING (NOT AVAILABLE) | (Optional).

53164-KA4-810

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

10

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

11

HOUSING A, GRIP (NOT AVAILABLE)

53167-KA4-700

Unavailable

12

HOUSING B, GRIP (NOT AVAILABLE)

53168-KA4-700

Unavailable

13

SLIDER, THROTTLE CABLE (NOT AVAILABLE)

53169-KA4-000

Unavailable

14

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-KA4-003

Unavailable

15

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-KA4-003

Unavailable

16

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

16

HOLDER, LEVER BRACKET

53173-376-000

$10.95

18

CONTROL LEVER, R. HANDLEBAR

53175-KA5-770

Unavailable

19

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

20

COVER, L. HANDLEBAR

53177-430-000

$11.00

21

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-KA5-770.

53178-KA3-840

$29.80

21

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-KA3-741.

53178-KA3-840

$29.80

21

CONTROL LEVER, L. HANDLEBAR

53178-KA3-840

$29.80

23

BOLT, WIRE ADJUSTING This part replaces 53192-KA4-700.

53192-KA4-710

$10.51

23

BOLT, CABLE ADJUSTING

53192-KA4-710

$10.51

25

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

26

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

26

NUT, FIXING

90321-KF0-000

$9.76

27

SCREW, PAN (4X12)

93500-04012-0A

$1.49

27

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

28

SCREW, PAN (5X16)

93500-05016-0H

$1.49

29

SCREW, PAN (5X20)

93500-05020-0H

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

WASHER, SPRING (4MM)

94111-04000

$1.49

32

BAND B1, CABLE

95014-62100

$1.64
