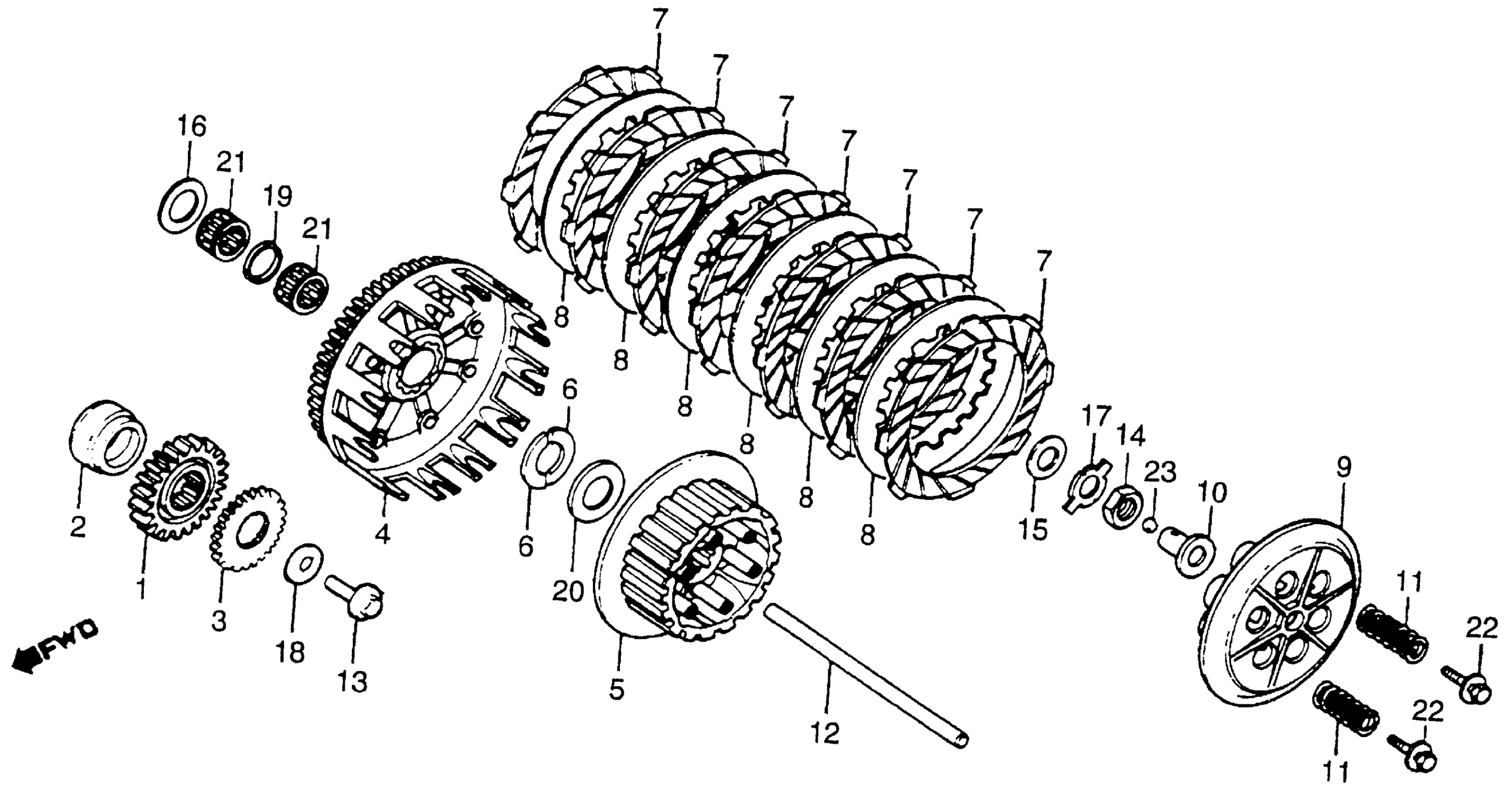

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 CLUTCH 82-83 Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (20T) (NOT AVAILABLE)

13615-KA4-700

Unavailable

2

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-KA4-700

Unavailable

3

GEAR, PUMP DRIVE (NOT AVAILABLE)

19231-KA4-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KA4-700

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE)

22120-KA4-700

Unavailable

6

COTTER, CLUTCH CENTER

22125-KA4-700

Unavailable

7

DISK, CLUTCH FRICTION

22201-286-010

$19.81

7

DISK, CLUTCH FRICTION This part replaces 22201-357-020.

22201-286-010

$19.81

7

DISK, CLUTCH FRICTION This part replaces 22201-369-000.

22201-286-010

$19.81

7

DISK, CLUTCH FRICTION This part replaces 22201-376-000.

22201-286-010

$19.81

8

PLATE B, CLUTCH

22321-KA4-700

$21.59

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22351-KA4-700

Unavailable

10

PIECE, CLUTCH LIFTER

22352-KA4-000

Unavailable

11

SPRING, CLUTCH

22401-KA4-700

Unavailable

12

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22851-KA4-000

Unavailable

13

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

14

NUT (18MM)

90235-KA4-000

$11.09

16

WASHER, THRUST (24X36)

90457-KA4-700

Unavailable

17

WASHER, LOCK (18MM) This part replaces 90461-KA4-000.

90461-MAC-740

$7.77

17

WASHER, LOCK (18MM)

90461-MAC-740

$7.77

18

WASHER, SPRING (10MM)

90481-430-000

$6.19

19

COLLAR (25.5MM) (NOT AVAILABLE)

90502-KA4-700

Unavailable

20

RETAINER (44.5MM) (NOT AVAILABLE)

90503-KA4-700

Unavailable

21

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-004.

91021-430-006

Unavailable

21

BEARING, NEEDLE (24X28X13) (TOMUSON)

91021-430-006

Unavailable

21

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-008.

91021-430-006

Unavailable

22

BOLT-WASHER (6X16)

93404-06016-08

$1.55

22

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

23

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
