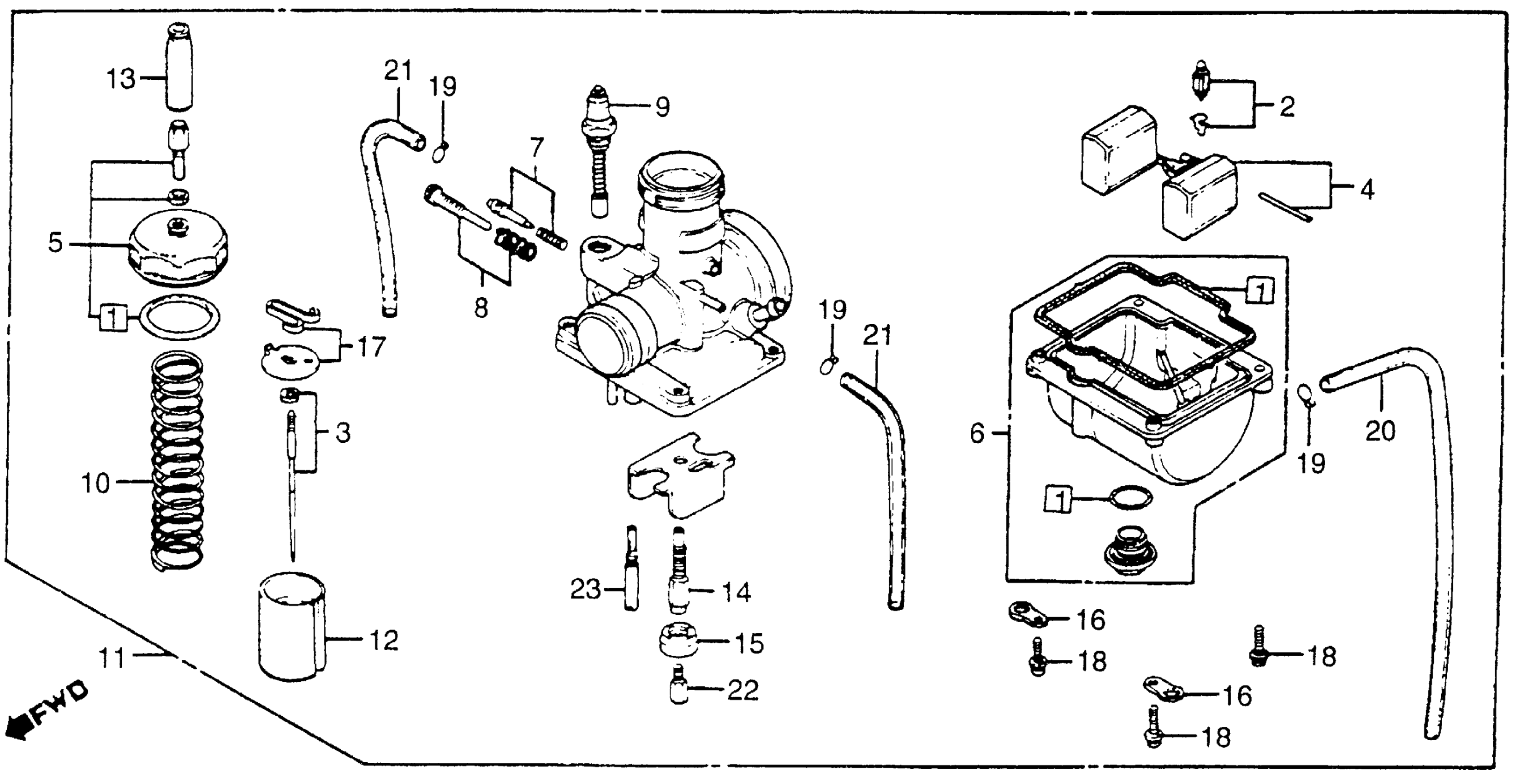

Honda CR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME030-CC400021 TO JH2ME030-CC406212 CARBURETOR Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-KA5-004

Unavailable

2

VALVE SET, FLOAT

16011-HE0-003

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-KA5-004.

16011-HE0-003

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-KA4-004

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-KA4-004

Unavailable

5

TOP SET

16014-KA5-771

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KA5-004

Unavailable

7

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

8

SCREW SET B (NOT AVAILABLE)

16028-KA5-004

Unavailable

9

VALVE SET, STARTER

16046-KA5-771

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-KA5-004

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KA4-701

Unavailable

12

VALVE, THROTTLE

16111-KA4-701

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

NEEDLE, JET (NOT AVAILABLE) This part replaces 16164-KA5-004.

16164-HE0-670

Unavailable

15

HOLDER, JET

16168-KA5-004

Unavailable

16

BINDER

16179-428-671

Unavailable

17

PLATE SET

16212-KA5-004

Unavailable

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X270)

95003-05008-60M

$19.34

21

BULK HOSE, VINYL (4X7X8000) (4X7X100)

95003-07008-60M

$24.47

21

BULK HOSE, VINYL (4X7X8000) (4X7X100)

95003-07008-60M

$24.47

22

JET, MAIN (#160) This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

22

JET, MAIN (#160)

99113-GHB-1600

$9.44

23

JET, SLOW (#72)

99103-441-0720

Unavailable
