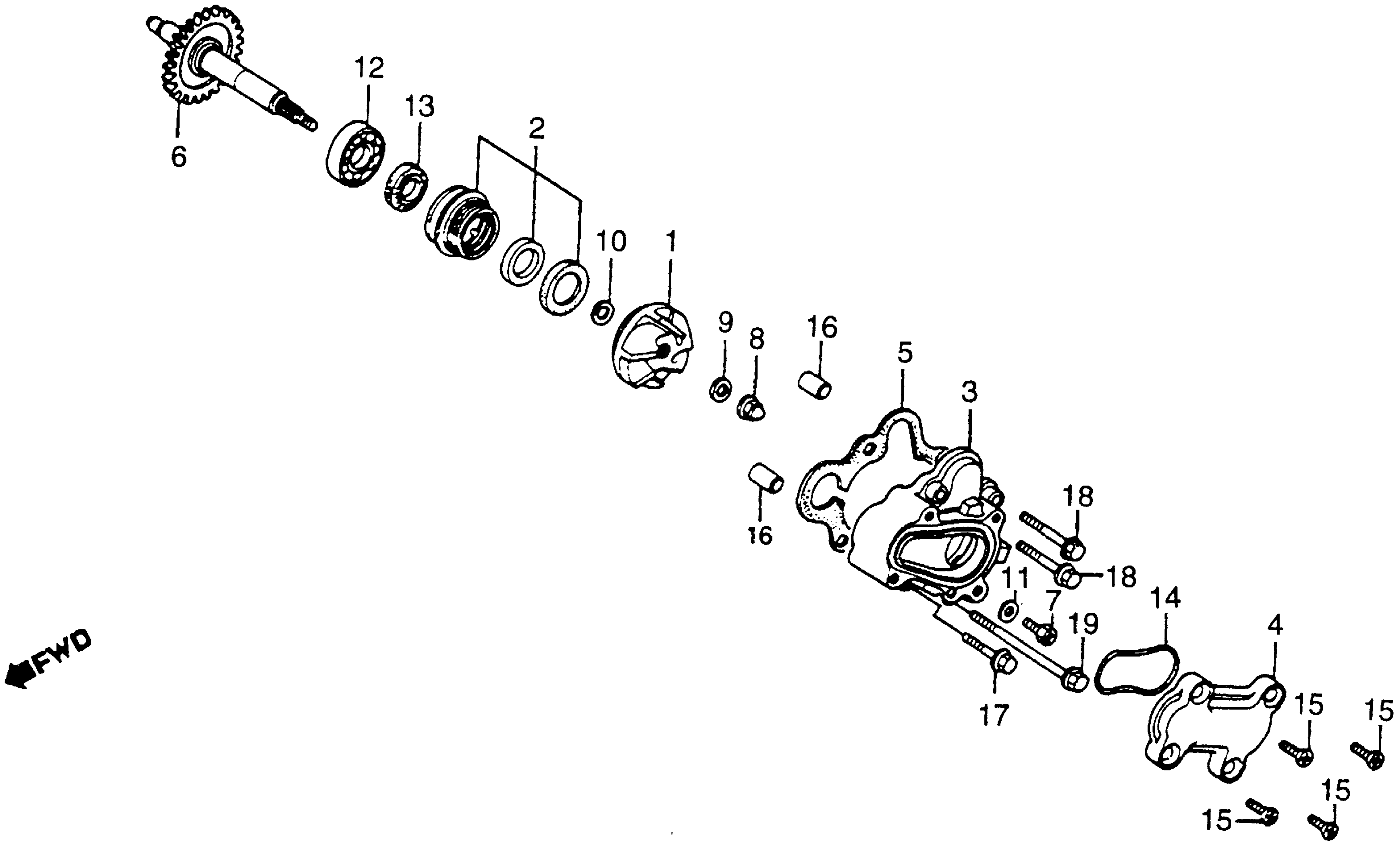

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 WATER PUMP 81 Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KA4-000

Unavailable

2

SEAL, MECHANICAL This part replaces 19217-657-003.

19217-657-023

$47.84

2

SEAL, MECHANICAL This part replaces 19217-657-013.

19217-657-023

$47.84

2

SEAL, MECHANICAL

19217-657-023

$47.84

3

COVER, WATER PUMP (NOT AVAILABLE)

19221-KA4-300

Unavailable

4

CAP, WATER PUMP (NOT AVAILABLE)

19222-KA4-300

Unavailable

5

GASKET, WATER PUMP COVER This part replaces 19229-KA4-000.

19229-KA4-307

Unavailable

5

GASKET, WATER PUMP COVER

19229-KA4-307

Unavailable

5

GASKET, WATER PUMP COVER This part replaces 19229-KA4-710.

19229-KA4-307

Unavailable

6

SHAFT, WATER PUMP (NOT AVAILABLE)

19240-KA4-000

Unavailable

7

BOLT, OIL CHECK

90037-360-000

$3.04

8

NUT, CAP (6MM)

90201-415-000

$1.96

9

WASHER, SEALING (6MM)

90441-706-000

$1.06

10

WASHER (8X13)

90454-KA4-000

$2.85

11

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

12

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$15.33

12

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$15.33

13

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

13

OIL SEAL (12X22X5)

91201-965-000

$3.77

14

O-RING (2MM) (NOT AVAILABLE)

91302-KA4-003

Unavailable

15

SCREW, OVAL (5X16)

93700-05016-0A

$0.90

15

SCREW, OVAL (5X16) This part replaces 93700-05016-1A.

93700-05016-0A

$0.90

16

PIN A, DOWEL (8X14)

94301-08140

$2.04

17

BOLT, FLANGE (6X25)

96000-06025-00

$1.91

17

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

18

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.28

18

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

19

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.78

19

BOLT, FLANGE (6X70)

96001-06070-00

$1.78
