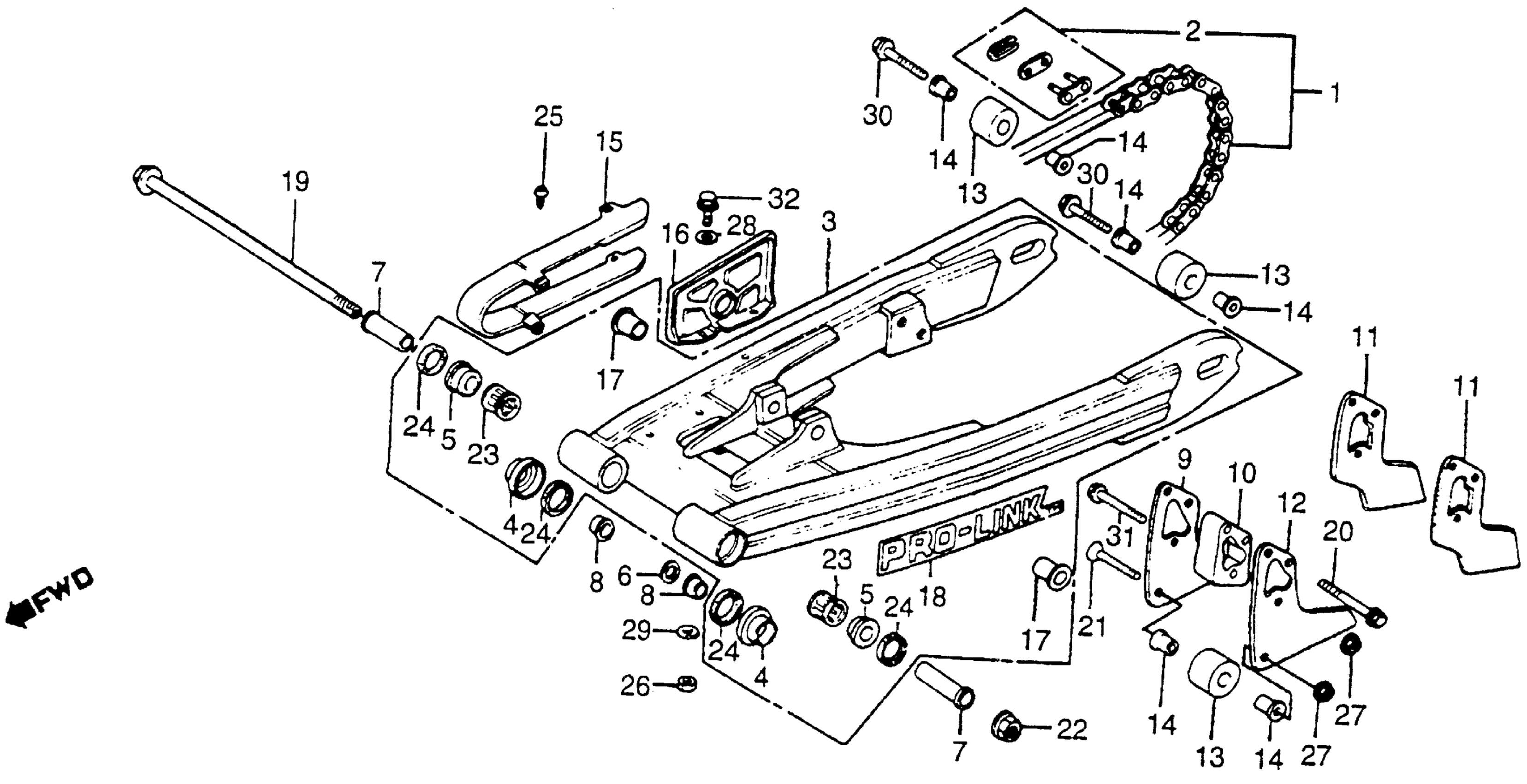

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 SWINGARM + DRIVE CHAIN 81 Diagram

#

Description
Price

1

CHAIN, DRIVE | (Optional).

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (520TR-114L) (DAIDO) (NOT AVAILABLE)

40530-KA4-003

Unavailable

1

CHAIN, DRIVE (520TR-114L) (DAIDO) (NOT AVAILABLE) This part replaces 40530-KA4-004.

40530-KA4-003

Unavailable

1

CHAIN, DRIVE (520MK-112L) (TAKASAGO) | (Optional).

40530-KA4-812

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-444-811.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KS6-315.

405W3-KA4-505

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KA4-004

Unavailable

2

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

2

MASTER LINK

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

3

SWINGARM ASSY., RR. (NOT AVAILABLE) This part replaces 52000-KA4-000.

52000-KA4-010

Unavailable

3

SWINGARM ASSY., RR. (NOT AVAILABLE)

52000-KA4-010

Unavailable

4

HOLDER, DISTANCE SEAL (NOT AVAILABLE)

52108-KA4-000

Unavailable

5

BUSH, PIVOT THRUST (NOT AVAILABLE)

52109-KA4-003

Unavailable

6

SHIM A, RUBBER ARM PIVOT (NOT AVAILABLE)

52125-KA4-000

Unavailable

6

SHIM B, RUBBER ARM PIVOT (NOT AVAILABLE)

52126-KA4-000

Unavailable

6

SHIM C, RUBBER ARM PIVOT (NOT AVAILABLE)

52127-KA4-000

Unavailable

6

SHIM D, RUBBER ARM PIVOT (NOT AVAILABLE)

52128-KA4-000

Unavailable

7

COLLAR A, SWINGARM (NOT AVAILABLE)

52141-KA4-000

Unavailable

8

COLLAR B, SWINGARM (NOT AVAILABLE)

52142-KA4-000

Unavailable

9

GUIDE, R. CHAIN (NOT AVAILABLE)

52146-KA4-000

Unavailable

10

SLIDER, CHAIN GUIDE

52147-KA4-010

Unavailable

11

SLIDER, CHAIN GUIDE SIDE (NOT AVAILABLE)

52148-KA4-000

Unavailable

12

GUIDE, L. CHAIN (NOT AVAILABLE)

52156-KA4-000

Unavailable

13

ROLLER, RR. CHAIN GUIDE

52158-MA0-000

Unavailable

14

COLLAR, CHAIN GUIDE

52159-MA0-000

Unavailable

15

SLIDER, CHAIN (NOT AVAILABLE)

52170-KA4-000

Unavailable

16

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA4-000

Unavailable

17

WASHER, CUSHION ARM (NOT AVAILABLE)

52464-KA4-000

Unavailable

18

EMBLEM, SWINGARM (NOT AVAILABLE)

87121-MA0-300

Unavailable

19

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA4-000

Unavailable

20

BOLT, FLANGE (8X55) (NOT AVAILABLE)

90123-400-000

Unavailable

21

SCREW, FLAT (8X45)

90126-KA4-000

$2.22

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

23

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

24

DUST SEAL (26X36X4)

91253-KA4-000

Unavailable

25

SCREW, TAPPING (6X16)

93901-16210

Unavailable

26

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

26

NUT, HEX. (6MM)

94001-06080-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

27

NUT, FLANGE (8MM)

94050-08000

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, SPRING (6MM)

94111-06800

$1.49

30

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

30

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

31

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

31

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

32

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

32

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

32

BOLT, FLANGE (6X16) This part replaces 95800-06016-08.

95701-06016-08

$1.49
