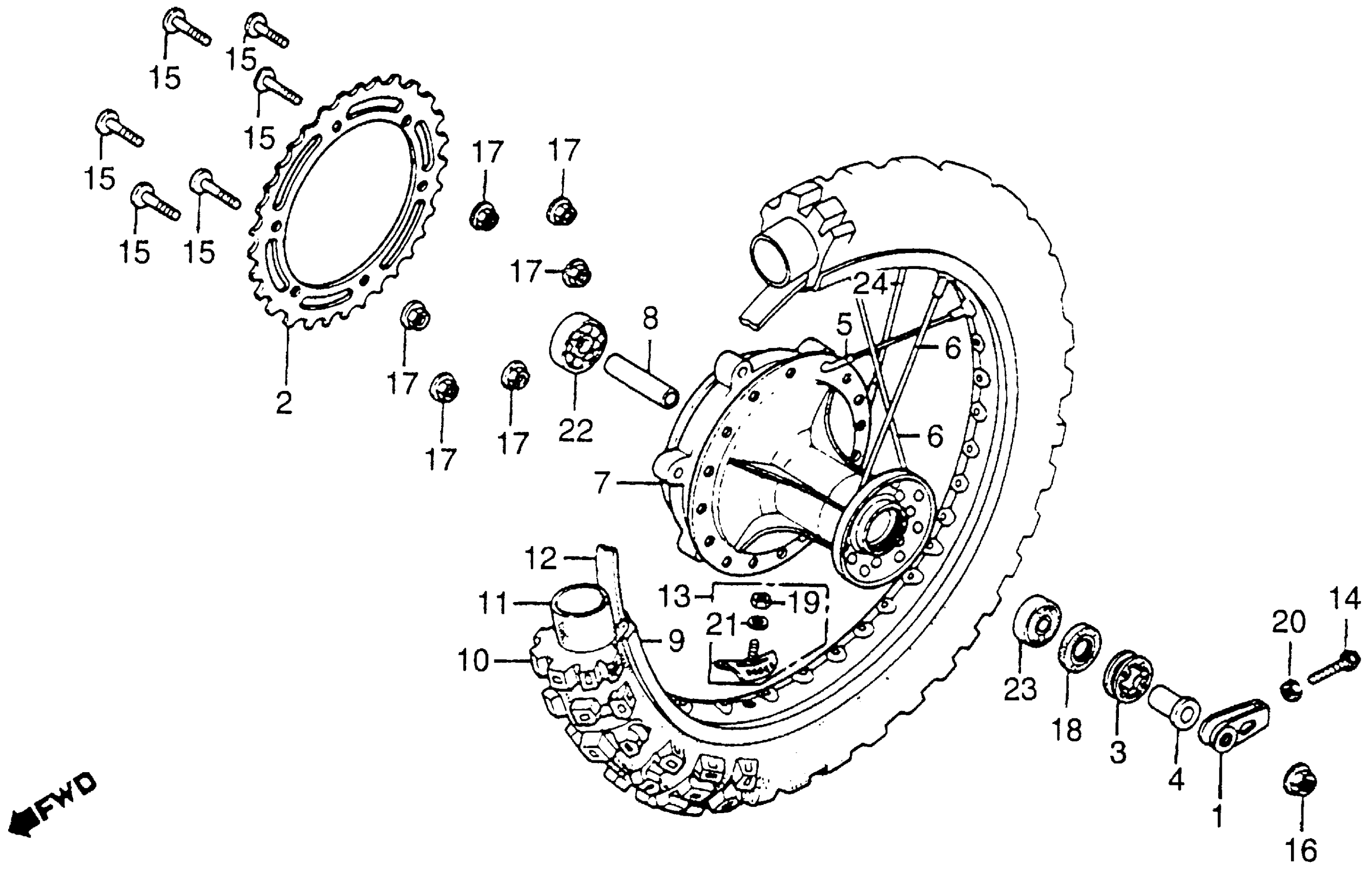

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 REAR WHEEL 81 Diagram

#

Description
Price

1

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-KA4-010

Unavailable

2

SPROCKET, FINAL DRIVEN (52T) (ALUMINUM) | (Optional).

41202-KA4-000

Unavailable

2

SPROCKET, FINAL DRIVEN (54T) (STEEL) (NOT AVAILABLE) This part replaces 41203-KA4-000.

41203-KA4-810

Unavailable

2

SPROCKET, FINAL DRIVEN (54T) (STEEL) (NOT AVAILABLE) | (Optional).

41203-KA4-810

Unavailable

2

SPROCKET, FINAL DRIVEN (56T) (ALUMINUM) (NOT AVAILABLE) | (Optional).

41204-KA4-000

Unavailable

3

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-430-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-KA4-000

Unavailable

5

SPOKE SET A, RR.

426A0-KA4-000

Unavailable

6

SPOKE SET B, RR.

426B0-KA4-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KA4-000

Unavailable

8

COLLAR, RR. WHEEL DISTANCE (NOT AVAILABLE)

42620-430-000

Unavailable

9

RIM, RR. WHEEL (NOT AVAILABLE)

42701-KA4-003

Unavailable

10

TIRE, RR. (110/100-18) (64M M22) (BS) This part replaces 42711-KA4-003.

42711-KS7-771

Unavailable

10

TIRE, RR. (110/100-18) (64M M22) (BS)

42711-KS7-771

Unavailable

11

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

12

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

13

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-357-000.

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-428-000.

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-467-000.

42715-MA0-770

$37.88

14

BOLT, CHAIN ADJUSTING

90119-KA4-000

Unavailable

15

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

16

NUT, AXLE (18MM)

90305-KA4-003

Unavailable

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

18

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

18

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

NUT, HEX. (8MM)

94002-08000-0S

$1.49

20

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

23

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

24

SPOKE SET (7X160)

97820-79160-U0

Unavailable
