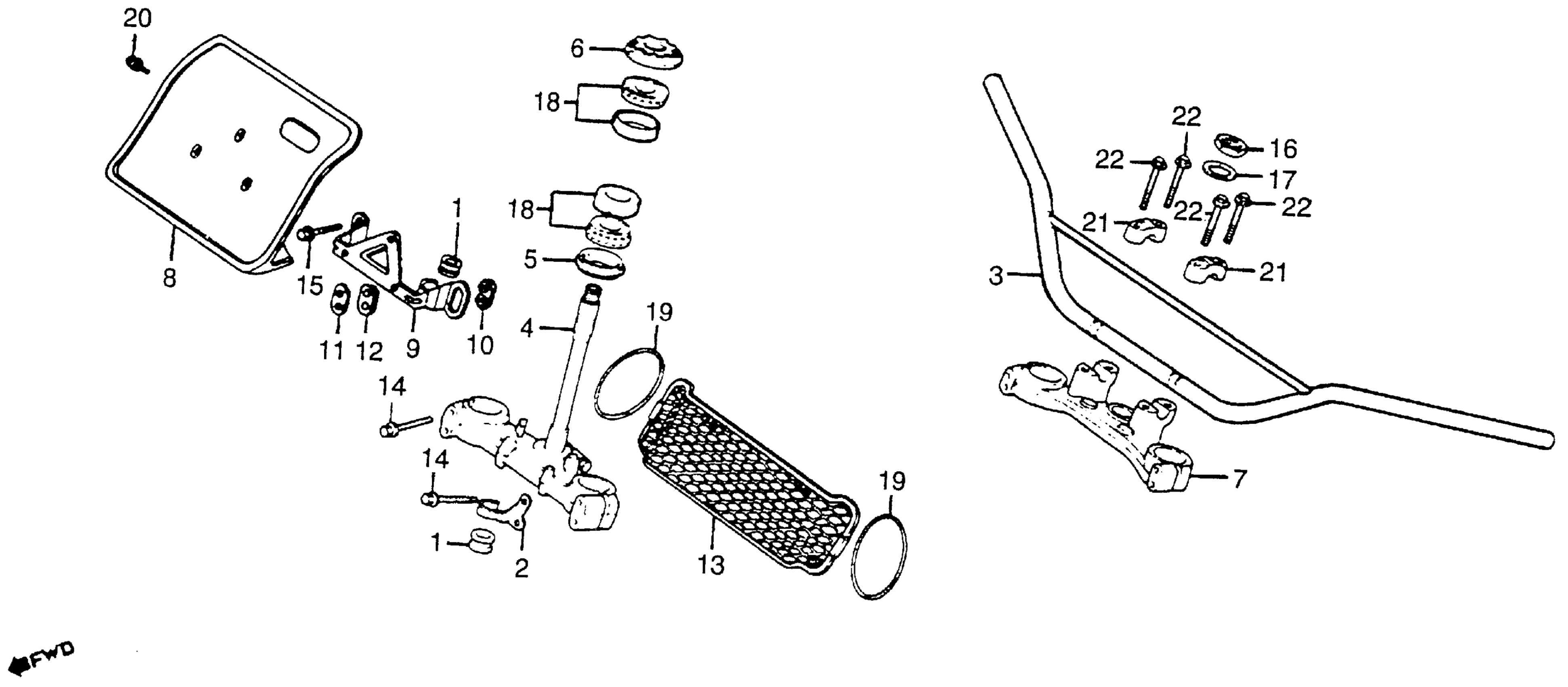

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 HANDLEBAR + TOP BRIDGE 81 Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

2

GUIDE, BRAKE CABLE (LOWER) (NOT AVAILABLE)

45468-KA4-000

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-KA4-000

Unavailable

4

STEM, STEERING (NOT AVAILABLE)

53200-KA4-000

Unavailable

5

DUST SEAL, STEERING HEAD

53214-430-003

Unavailable

6

THREAD, STEERING HEAD (UPPER) (NOT AVAILABLE)

53220-KA4-000

Unavailable

7

BRIDGE, FORK (UPPER) (NOT AVAILABLE)

53230-KA4-000

Unavailable

8

PLATE, FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

61136-KA4-670ZA

Unavailable

9

STAY, FR. NUMBER PLATE (NOT AVAILABLE)

61137-KA4-670

Unavailable

10

COLLAR, NUMBER PLATE STAY (NOT AVAILABLE)

61142-KA4-000

Unavailable

11

WASHER, NUMBER PLATE STAY (NOT AVAILABLE)

61143-KA4-000

Unavailable

12

RUBBER, NUMBER PLATE STAY (NOT AVAILABLE)

61144-KA4-000

Unavailable

13

GRILLE, FR. (NOT AVAILABLE)

61150-KA4-000

Unavailable

14

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

15

BOLT, FLANGE (8X55) (NOT AVAILABLE)

90105-KA4-000

Unavailable

16

NUT, STEERING STEM

90304-425-000

$9.69

17

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$4.21

17

WASHER, STEERING STEM

90503-425-000

$4.21

17

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$4.21

18

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-371-000

Unavailable

19

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.69

19

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.69

19

O-RING (63X3.0)

91359-371-003

$5.69

20

SCREW-WASHER (6X14) (NOT AVAILABLE)

93891-06014-07

Unavailable

21

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

22

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

22

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
