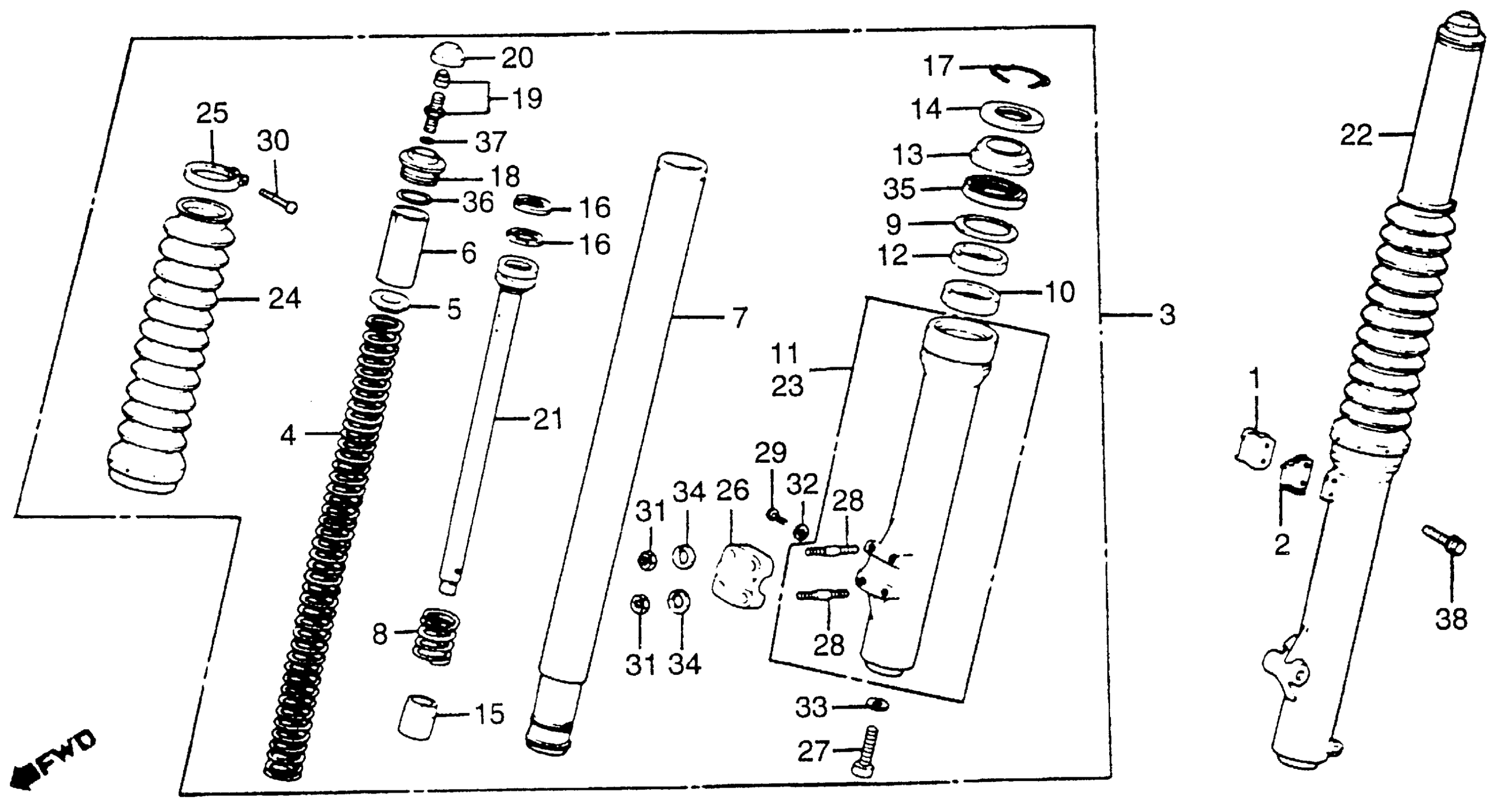

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 FRONT FORK 81 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE (NOT AVAILABLE)

45461-KA4-000

Unavailable

2

CLAMP B, FR. BRAKE CABLE (NOT AVAILABLE)

45462-KA4-000

Unavailable

3

FORK ASSY., R. FR. This part replaces 51400-KA4-004.

51400-KA4-014

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-KA4-004

Unavailable

5

GUIDE, SPRING (NOT AVAILABLE)

51403-KA4-004

Unavailable

6

SPACER, SPRING (NOT AVAILABLE)

51404-KA4-004

Unavailable

7

PIPE, FR. FORK (NOT AVAILABLE)

51410-KA4-004

Unavailable

8

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51411-KA4-004

Unavailable

9

WASHER

51412-KA4-004

$6.75

10

SLEEVE, FORK PIPE

51415-KA4-004

Unavailable

11

CASE, R. (LOWER) (NOT AVAILABLE)

51421-KA4-004

Unavailable

12

BUSH, FORK PIPE

51424-KA4-004

Unavailable

13

DUST SEAL, FR. FORK This part replaces 51425-KA4-004.

51425-KT1-671

Unavailable

13

DUST SEAL, FR. FORK

51425-KT1-671

Unavailable

14

DUST SEAL, FR. FORK

51425-KT1-671

Unavailable

14

DUST SEAL, FR. FORK This part replaces 51426-KA4-004.

51425-KT1-671

Unavailable

15

PIECE, OIL LOCK (NOT AVAILABLE)

51432-KA4-004

Unavailable

16

RING, PISTON (NOT AVAILABLE)

51437-KA4-004

Unavailable

17

RING, SNAP

51447-KA4-004

$4.24

18

BOLT, FR. FORK (NOT AVAILABLE)

51455-KA4-004

Unavailable

19

VALVE ASSY., AIR (NOT AVAILABLE)

51456-KA4-004

Unavailable

20

CAP, FORK BOLT (NOT AVAILABLE)

51457-KA4-004

Unavailable

21

PIPE, SEAT (NOT AVAILABLE)

51470-KA4-004

Unavailable

22

FORK ASSY., L. FR. This part replaces 51500-KA4-004.

51500-KA4-014

Unavailable

23

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-KA4-004

Unavailable

24

BOOT, FR. FORK (NOT AVAILABLE)

51611-KA4-004

Unavailable

25

BAND, FR. FORK BOOT

51612-KA3-831

Unavailable

25

BAND, FR. FORK BOOT This part replaces 51612-KA4-004.

51612-KA3-831

Unavailable

26

HOLDER, AXLE This part replaces 51634-KA3-731.

51634-KT0-671

Unavailable

26

HOLDER, AXLE This part replaces 51634-KA4-004.

51634-KT0-671

Unavailable

26

HOLDER, AXLE

51634-KT0-671

Unavailable

27

BOLT, SOCKET (14MM) (NOT AVAILABLE)

90116-KA4-004

Unavailable

28

BOLT, STUD (6X34)

90136-KA3-831

$4.51

28

BOLT, STUD (6X34) This part replaces 90136-KA4-004.

90136-KA3-831

$4.51

29

SCREW, PAN (4X8) (NOT AVAILABLE)

90201-KA4-004

Unavailable

30

SCREW, PAN (4X16)

90202-KA4-004

$2.48

31

NUT, HEX. (6MM) (NOT AVAILABLE)

90310-KA4-004

Unavailable

32

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

33

WASHER, SEALING (14MM) This part replaces 90544-KA4-004.

90544-KF0-000

$3.26

33

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

34

WASHER, SPRING (6MM) (NOT AVAILABLE)

90545-KA4-004

Unavailable

35

OIL SEAL (41X53X10.5)

91255-KA4-004

Unavailable

36

O-RING (31.34X3.53)

91356-KA4-004

Unavailable

37

O-RING (5.8X1.9)

91357-KA4-004

$2.48

38

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

38

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
