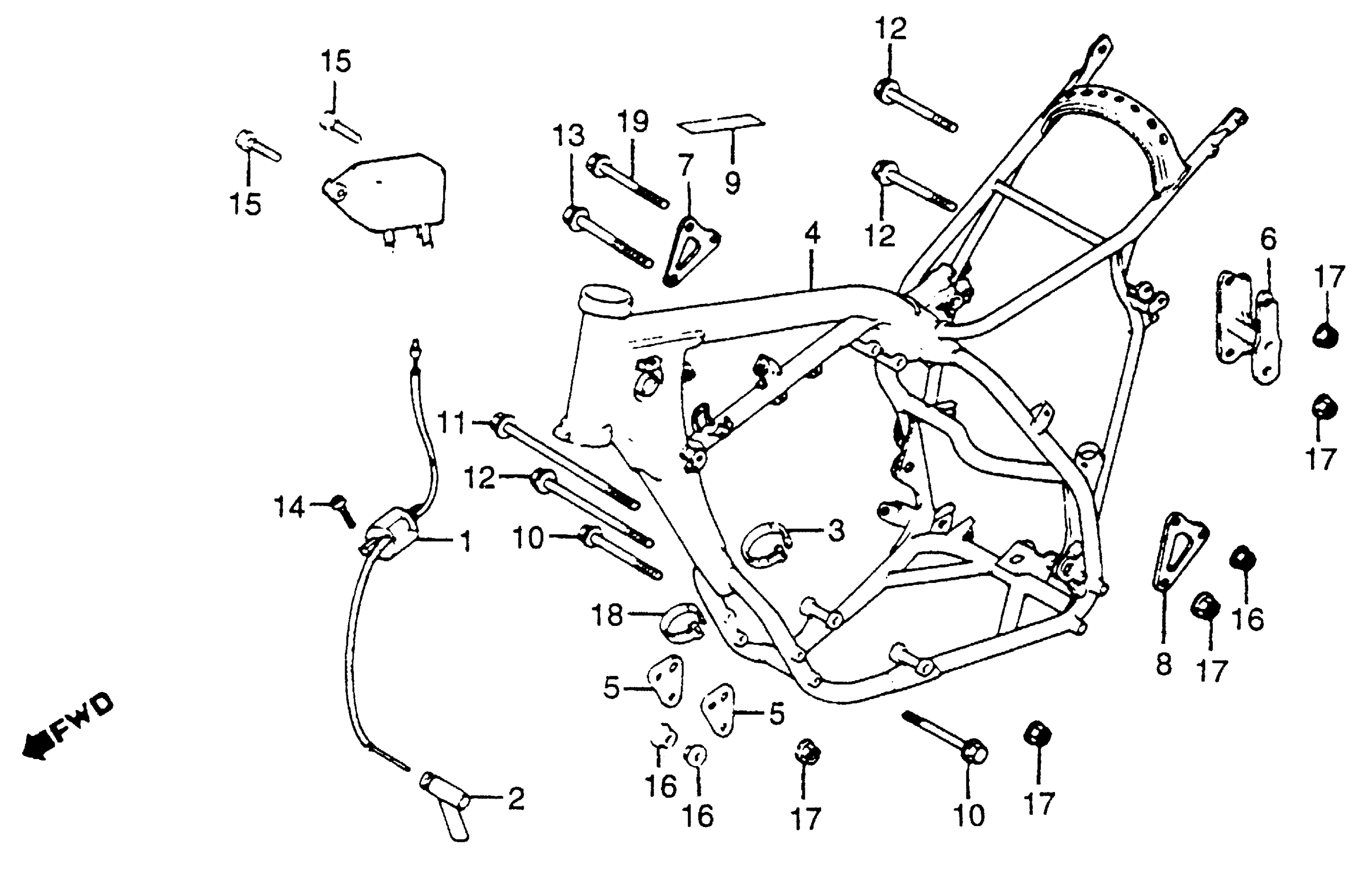

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 FRAME + IGNITION COIL 81 Diagram

#

Description
Price

1

COIL, IGNITION (NOT AVAILABLE) This part replaces 30500-KA4-003.

30500-KA4-710

Unavailable

1

COIL, IGNITION (NOT AVAILABLE)

30500-KA4-710

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA3-003.

30700-KA5-771

$31.04

2

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-169-153.

30700-KA5-771

$31.04

3

BAND B1, CABLE

32161-404-000

$2.23

4

FRAME *R23* (TAHITIAN RED) (NOT AVAILABLE)

50100-KA4-000ZA

Unavailable

5

PLATE, ENGINE HANGER (NOT AVAILABLE)

50351-KA4-000

Unavailable

6

BRACKET, RR. ENGINE *R23* (TAHITIAN RED) (NOT AVAILABLE)

50354-KA4-000ZA

Unavailable

7

BRACKET, R. HEAD HANGER (NOT AVAILABLE)

50401-KA4-000

Unavailable

8

BRACKET, L. HEAD HANGER (NOT AVAILABLE)

50402-KA4-000

Unavailable

9

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

87508-KA4-670

Unavailable

10

BOLT, FLANGE (8X55) (NOT AVAILABLE)

90105-KA4-000

Unavailable

11

BOLT, FLANGE (10X182) (NOT AVAILABLE)

90107-KA4-000

Unavailable

12

BOLT, FLANGE (NOT AVAILABLE)

90108-KA4-000

Unavailable

13

BOLT, FLANGE (10X53) (NOT AVAILABLE)

90131-KA4-000

Unavailable

14

SCREW, PAN (5X16)

93500-05016-0H

$1.49

15

SCREW, PAN (6X20)

93500-06020-0H

$1.49

16

NUT, FLANGE (8MM)

94050-08080

$1.49

17

NUT, FLANGE (10MM)

94050-10080

$3.24

18

BAND B1, CABLE

32161-404-000

$2.23

18

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

19

BOLT, FLANGE (8X45) This part replaces 95800-08045-08.

95801-08045-08

$1.49

19

BOLT, FLANGE (8X45)

95801-08045-08

$1.49
