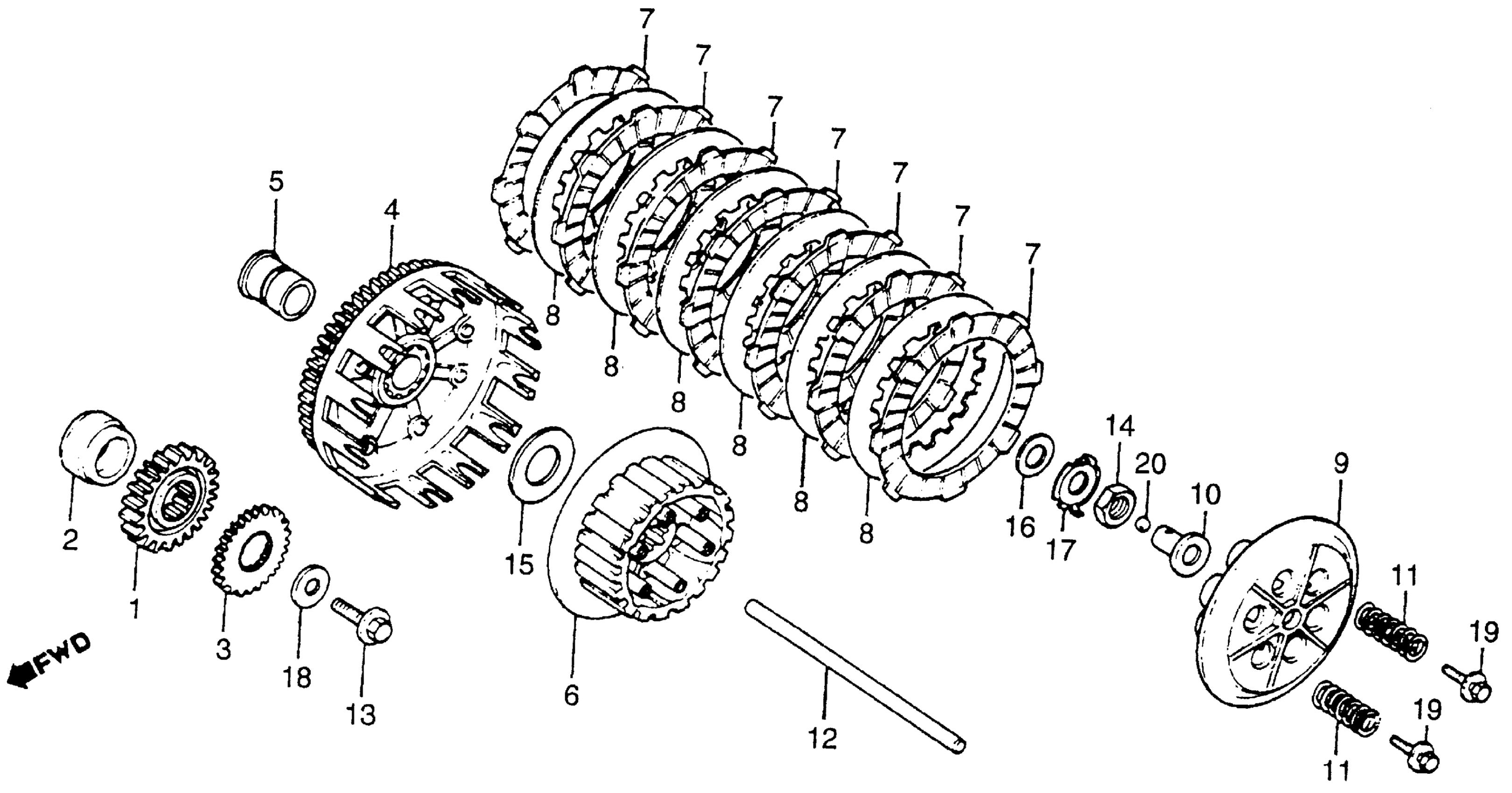

Honda CR250RA (81) ELSINORE, JPN, VIN# JH2ME030-BC300025 TO JH2ME030-BC305412 CLUTCH 81 Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (20T) (NOT AVAILABLE)

13615-KA4-000

Unavailable

2

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-KA4-000

Unavailable

3

GEAR, PUMP DRIVE (NOT AVAILABLE)

19231-KA4-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KA4-000

Unavailable

5

GUIDE, CLUTCH (OUTER) This part replaces 22116-KA4-000.

22116-KA4-305

Unavailable

5

GUIDE, CLUTCH (OUTER)

22116-KA4-305

Unavailable

6

CENTER, CLUTCH (NOT AVAILABLE)

22120-KA4-000

Unavailable

7

DISK, CLUTCH FRICTION

22201-286-010

$19.81

8

PLATE B, CLUTCH

22321-KA4-700

$21.59

8

PLATE B, CLUTCH This part replaces 22321-357-010.

22321-KA4-700

$21.59

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) This part replaces 22351-KA4-000.

22351-KA4-700

Unavailable

10

PIECE, CLUTCH LIFTER

22352-KA4-000

Unavailable

11

SPRING, CLUTCH This part replaces 22401-KA4-000.

22401-KA4-700

Unavailable

11

SPRING, CLUTCH

22401-KA4-700

Unavailable

12

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22851-KA4-000

Unavailable

13

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

14

NUT (18MM)

90235-KA4-000

$11.09

15

WASHER, THRUST (21X46) (NOT AVAILABLE)

90451-KA4-000

Unavailable

16

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

17

WASHER, LOCK (18MM) This part replaces 90461-KA4-000.

90461-MAC-740

$7.77

17

WASHER, LOCK (18MM)

90461-MAC-740

$7.77

18

WASHER, SPRING (10MM)

90481-430-000

$6.19

19

BOLT-WASHER (6X16)

93404-06016-08

$1.55

19

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

20

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
