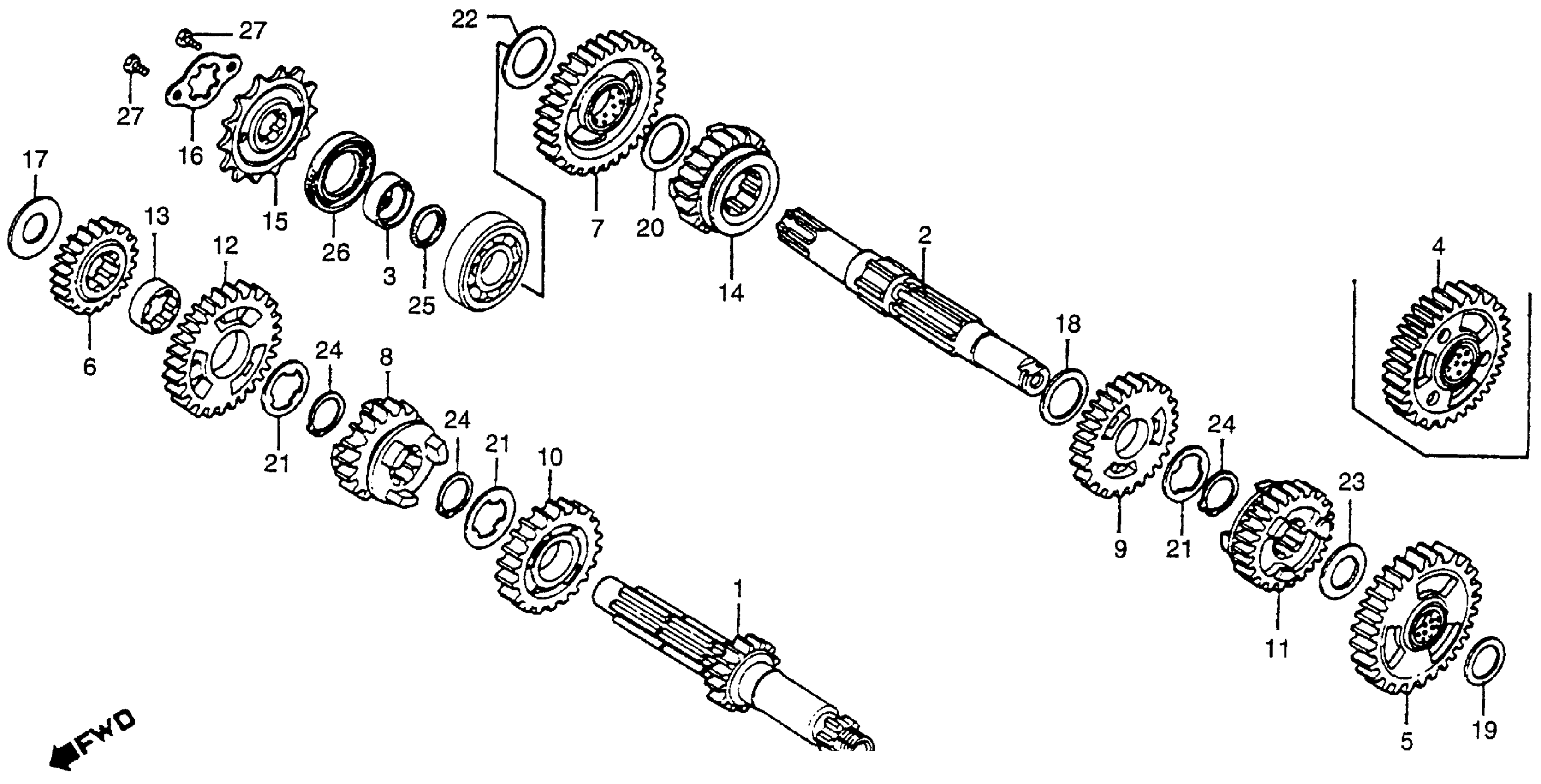

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (20T)

23210-430-000

Unavailable

2

COUNTERSHAFT (NOT AVAILABLE)

23220-430-000

Unavailable

3

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

5

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23410-467-010

Unavailable

6

GEAR, MAINSHAFT SECOND (22T) (NOT AVAILABLE)

23421-430-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (35T) (NOT AVAILABLE)

23430-430-010

Unavailable

8

GEAR, MAINSHAFT THIRD (25T) (NOT AVAILABLE)

23441-430-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (31T)

23451-430-000

Unavailable

10

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-430-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (28T) (NOT AVAILABLE)

23471-430-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (31T) (NOT AVAILABLE)

23481-430-000

Unavailable

13

COLLAR, SPLINE (25MM) (NOT AVAILABLE)

23482-430-000

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (26T) (NOT AVAILABLE)

23491-430-000

Unavailable

15

SPROCKET, DRIVE (14T)

23802-467-000

Unavailable

15

SPROCKET, DRIVE (15T) | (Optional).

23803-430-000

Unavailable

15

SPROCKET, DRIVE (15T) | (Optional). This part replaces 23803-467-810.

23803-430-000

Unavailable

16

PLATE, FIXING

23811-HA5-670

$4.96

16

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

17

WASHER, THRUST (20X31.5)

90443-430-000

$7.22

18

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

19

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

20

WASHER, THRUST (25.2X34) (NOT AVAILABLE)

90446-430-000

Unavailable

21

WASHER, SPLINE (25MM)

90463-430-000

$5.89

22

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

22

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

23

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

23

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

24

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

25

O-RING (22X1.5)

91201-430-003

$2.94

26

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

26

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

26

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

27

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

27

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
