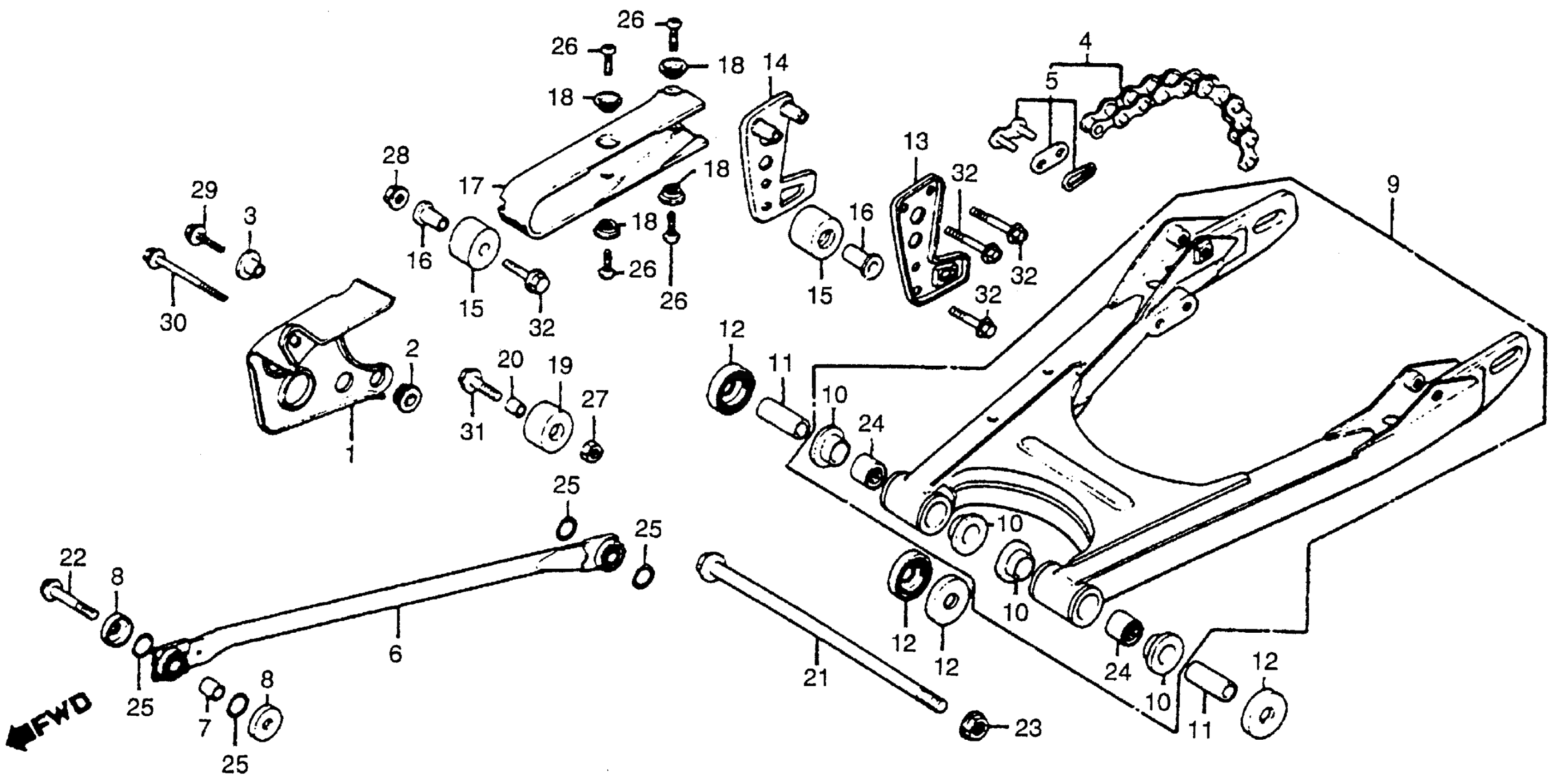

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 SWINGARM + DRIVE CHAIN 80 Diagram

COVER, DRIVE SPROCKET (NOT AVAILABLE)

23810-430-010

Unavailable

COVER, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23810-467-670.

23810-430-010

Unavailable

GROMMET, WIRE HARNESS

32983-028-000

$1.49

COLLAR, CHAIN CASE

40514-310-000

$6.26

CHAIN, DRIVE CHAIN, DRIVE (520TR-110L) | (Optional).

405W3-KA4-505

Unavailable

CHAIN, DRIVE (520TR-110L) (DAIDO) (NOT AVAILABLE) CHAIN, DRIVE (520KM-110L)

40530-430-811

Unavailable

CHAIN, DRIVE (520TR-110L) (DAIDO) (NOT AVAILABLE) CHAIN, DRIVE (520KM-110L) This part replaces 40530-430-812.

40530-430-811

Unavailable

CHAIN, DRIVE | (Optional). This part replaces 40530-444-811.

405W3-KA4-505

Unavailable

CHAIN, DRIVE | (Optional). This part replaces 40530-444-812.

405W3-KA4-505

Unavailable

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-831.

405W3-KA4-505

Unavailable

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-832.

405W3-KA4-505

Unavailable

CHAIN, DRIVE | (Optional). This part replaces 40532-KS6-315.

405W3-KA4-505

Unavailable

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

MASTER LINK

40531-958-003

Unavailable

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

ARM, RR. BRAKE STOPPER

43431-467-000

Unavailable

COLLAR, FR. STOPPER ARM (NOT AVAILABLE)

43436-430-000

Unavailable

CAP, FR. STOPPER ARM DUST (NOT AVAILABLE)

43437-430-000

Unavailable

SWINGARM ASSY., RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

52000-467-000ZA

Unavailable

BUSH, PIVOT THRUST

52109-430-300

$16.01

COLLAR, RR. SWINGARM

52141-430-000

Unavailable

CAP, DUST SEAL (NIPPON) CAP, DUST SEAL (ARAI)

52144-KR8-005

$13.52

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-003.

52144-KR8-005

$13.52

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-005.

52144-KR8-005

$13.52

GUIDE A, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52156-430-700ZA

Unavailable

GUIDE B, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52157-430-700ZA

Unavailable

ROLLER, CHAIN (NOT AVAILABLE)

52158-467-000

Unavailable

COLLAR, CHAIN ROLLER

52159-467-000

$11.56

RUBBER, CHAIN SLIDER (NOT AVAILABLE)

52170-430-701

Unavailable

COLLAR, CHAIN SLIDER (NOT AVAILABLE)

52171-430-000

Unavailable

ROLLER, CHAIN GUIDE (LOWER) (NOT AVAILABLE)

52175-467-000

Unavailable

COLLAR, CHAIN TENSIONER (NOT AVAILABLE)

52176-430-000

$1.96

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA3-710

Unavailable

BOLT, SWINGARM (NOT AVAILABLE) This part replaces 90117-430-000.

90117-KA3-710

Unavailable

BOLT, SWINGARM (NOT AVAILABLE) This part replaces 90117-467-000.

90117-KA3-710

Unavailable

BOLT, RR. BRAKE PANEL STOPPER ARM (NOT AVAILABLE)

90133-430-000

Unavailable

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$24.72

BEARING, NEEDLE (20X26X20) (TOYO) This part replaces 91071-430-003.

91070-GC4-601

$24.72

O-RING (20X1.8) (NOT AVAILABLE)

91302-430-003

Unavailable

SCREW, PAN (4X6)

93500-04006-0H

$1.49

NUT, HEX. (10MM)

94002-10080-0S

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (10X28) This part replaces 95700-10028-08.

95701-10028-08

$2.19

BOLT, FLANGE (10X28)

95701-10028-08

$2.19

BOLT, FLANGE (8X40) This part replaces 95800-08040-08.

95801-08040-08

$2.17

BOLT, FLANGE (8X40)

95801-08040-08

$2.17
