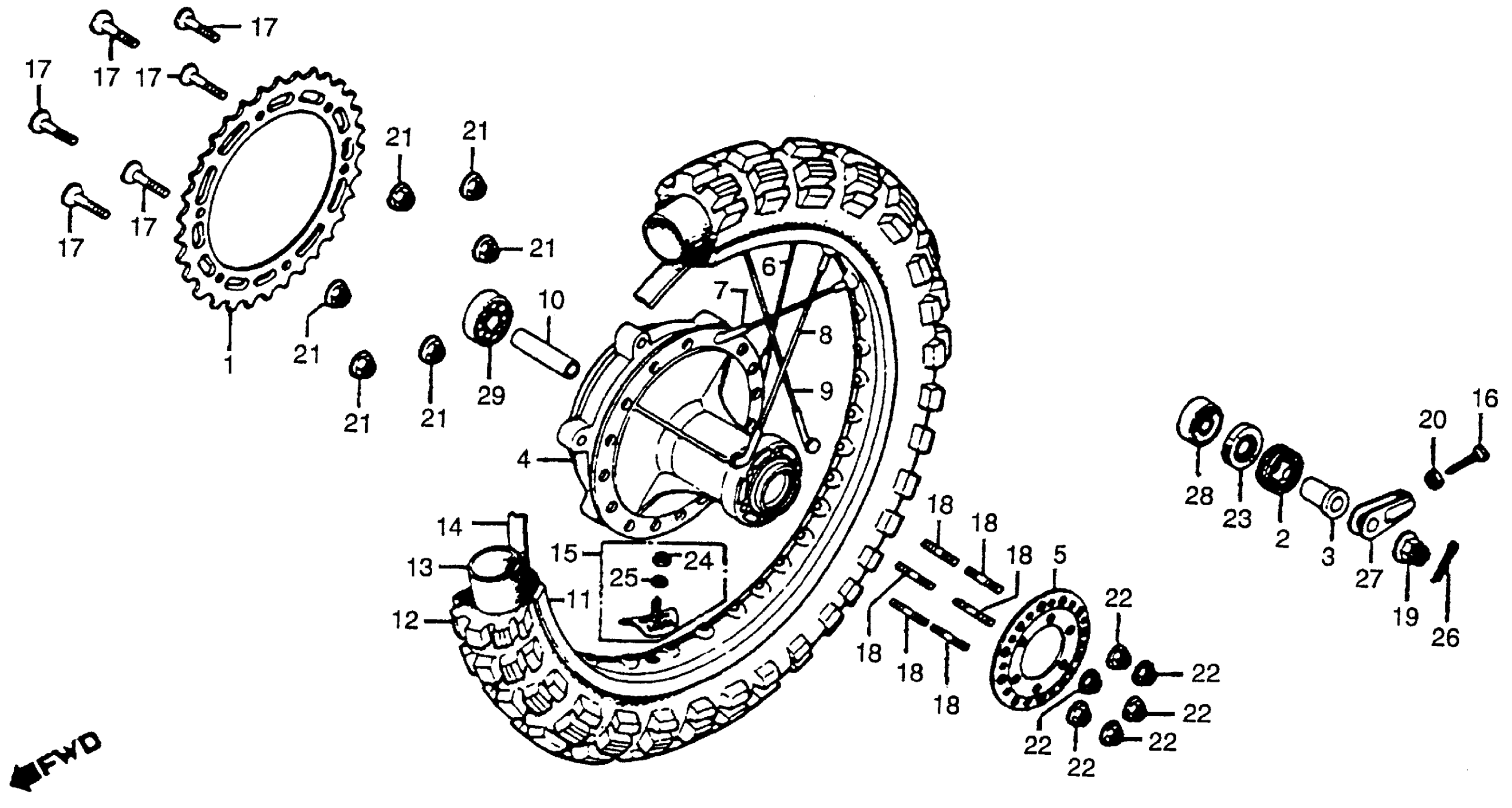

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (49T) (STEEL) (NOT AVAILABLE) This part replaces 41201-430-700.

41201-430-810

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) (STEEL) (NOT AVAILABLE) | (Optional).

41201-430-810

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) (ALUMINUM) (NOT AVAILABLE) | (Optional).

41202-430-700

Unavailable

1

SPROCKET, FINAL DRIVEN (53T) (ALUMINUM) (NOT AVAILABLE) | (Optional).

41203-430-700

Unavailable

2

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-430-000

Unavailable

3

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-430-000

Unavailable

4

HUB, RR. WHEEL (NOT AVAILABLE)

42601-467-000

Unavailable

5

FLANGE, RR. SPOKE (NOT AVAILABLE) This part replaces 42604-430-000.

42604-430-010

Unavailable

6

SPOKE A, RR. (NOT AVAILABLE)

42605-430-000

Unavailable

7

SPOKE A, RR.

42606-430-000

Unavailable

8

SPOKE B, RR.

42607-430-000

Unavailable

9

SPOKE C, RR.

42608-430-000

Unavailable

10

COLLAR, RR. WHEEL DISTANCE (NOT AVAILABLE)

42620-430-000

Unavailable

11

RIM, RR. WHEEL (NOT AVAILABLE)

42701-430-003

Unavailable

12

TIRE, RR. (5.10-18) (4PR) (BS) (NOT AVAILABLE)

42711-467-003

Unavailable

13

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

13

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

13

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

13

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

14

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

15

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

15

STOPPER, BEAD (2.15) This part replaces 42715-355-006.

42715-MA0-770

$37.88

15

STOPPER, BEAD (2.15) This part replaces 42715-357-000.

42715-MA0-770

$37.88

15

STOPPER, BEAD (2.15) This part replaces 42715-428-000.

42715-MA0-770

$37.88

15

STOPPER, BEAD (2.15) This part replaces 42715-467-000.

42715-MA0-770

$37.88

16

BOLT, CHAIN ADJUSTING (NOT AVAILABLE)

90119-467-000

Unavailable

17

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

17

SCREW, FLAT (8X31) This part replaces 90125-430-010.

90125-KA4-000

$3.08

18

BOLT, STUD (6X28)

90135-107-720

$2.56

19

NUT, AXLE (18MM)

90305-393-000

Unavailable

20

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

21

NUT, HEX. (8MM)

90309-357-000

$3.40

22

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

23

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

23

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

23

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

PIN, COTTER (4.0X30)

94201-40300

$1.49

27

ADJUSTER, CHAIN This part replaces 40532-283-010.

95014-18000

$20.48

27

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

27

ADJUSTER, CHAIN

95014-18000

$20.48

28

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

29

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
