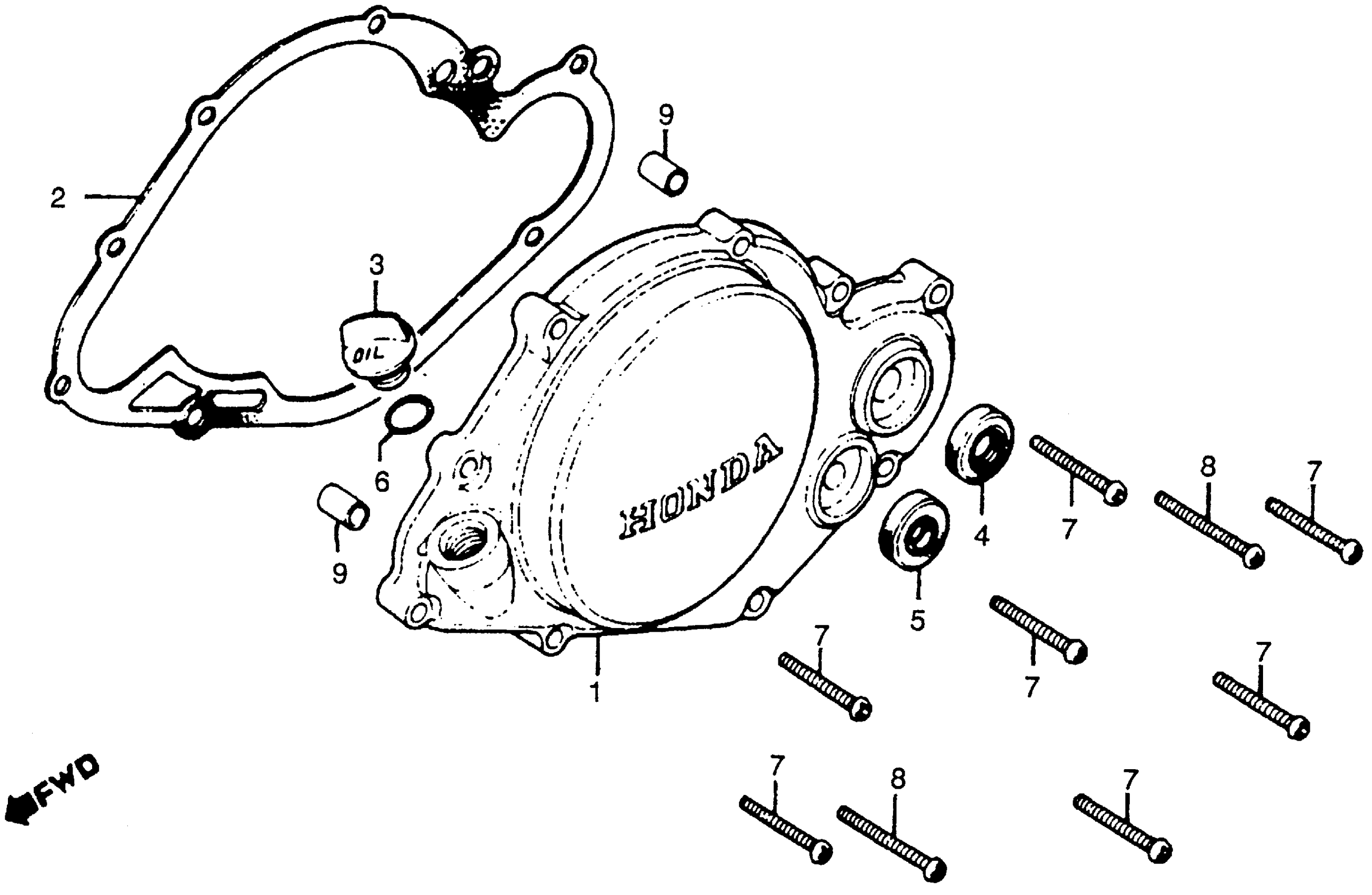

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11340-467-670.

11340-430-010

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-430-010.

11395-430-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-430-306

Unavailable

3

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

4

OIL SEAL (18X29X7)

91204-286-003

$4.31

5

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

6

O-RING (16MM)

91303-800-000

$2.23

6

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

7

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

7

SCREW, PAN (6X28)

93500-06028-0A

$1.49

8

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

8

SCREW, PAN (6X35)

93500-06035-0A

$1.49

9

PIN A, DOWEL (10X16)

94301-10160

$2.28
