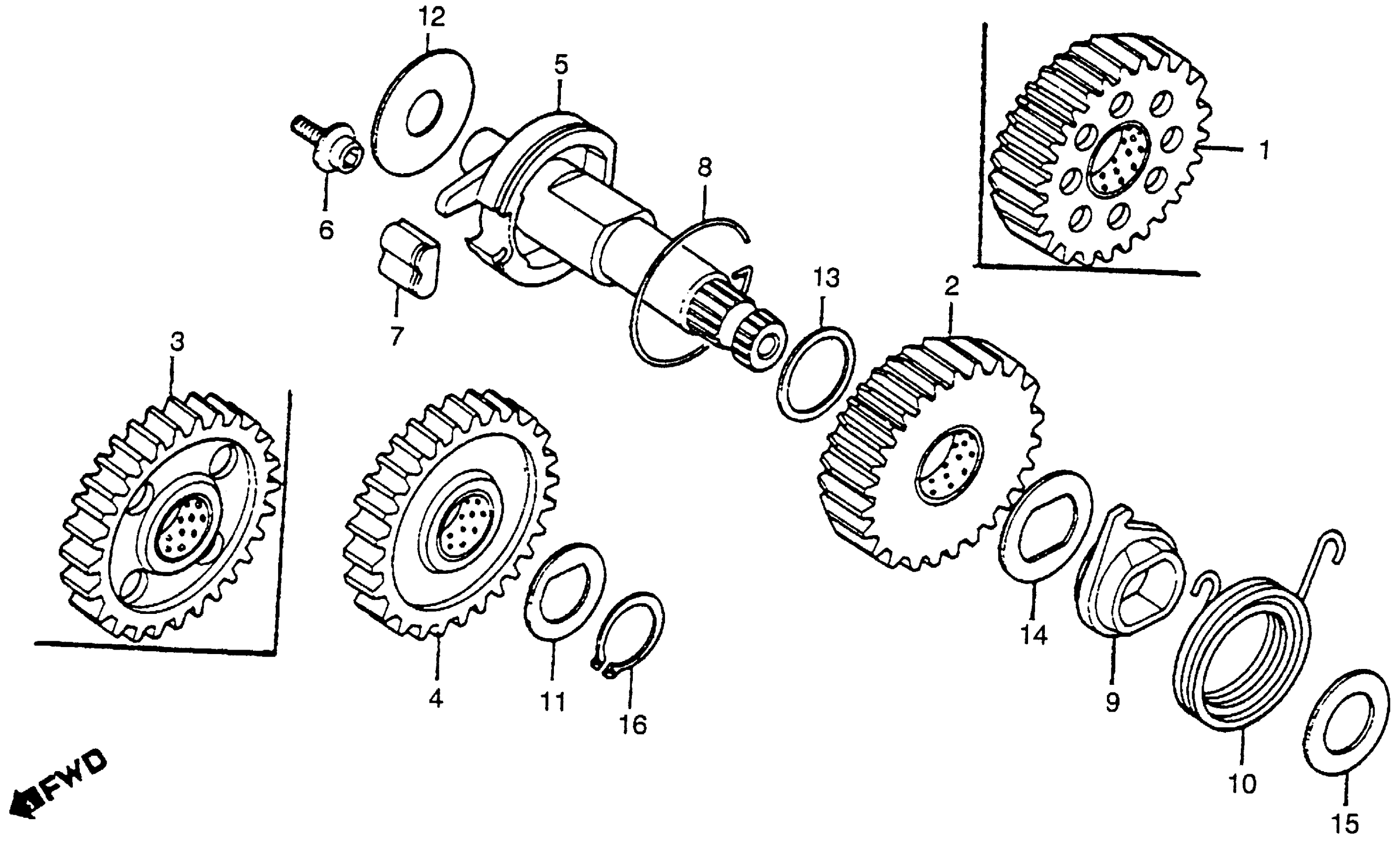

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (29T) (NOT AVAILABLE)

28210-467-000

Unavailable

IDLER, KICK (30T) (NOT AVAILABLE)

28230-467-000

Unavailable

SPINDLE, KICK (NOT AVAILABLE)

28250-467-000

Unavailable

PIN, KICK STOPPER (NOT AVAILABLE)

28254-357-000

Unavailable

PAWL, STARTER (NOT AVAILABLE)

28255-430-000

Unavailable

SPRING, PAWL SETTING (NOT AVAILABLE)

28258-357-020

Unavailable

RETAINER, KICK SPRING (NOT AVAILABLE)

28259-430-000

Unavailable

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-467-000

$8.70

WASHER, THRUST (17MM) (NOT AVAILABLE)

90433-357-000

Unavailable

WASHER (16MM) (NOT AVAILABLE)

90454-329-000

Unavailable

WASHER, THRUST (22MM) (NOT AVAILABLE)

90456-703-000

Unavailable

WASHER, LOCK (22X35) (NOT AVAILABLE)

90457-430-000

Unavailable

WASHER (18X32X2)

90501-ML3-910

$4.37

WASHER (18X32X2) This part replaces 90598-430-000.

90501-ML3-910

$4.37

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49
