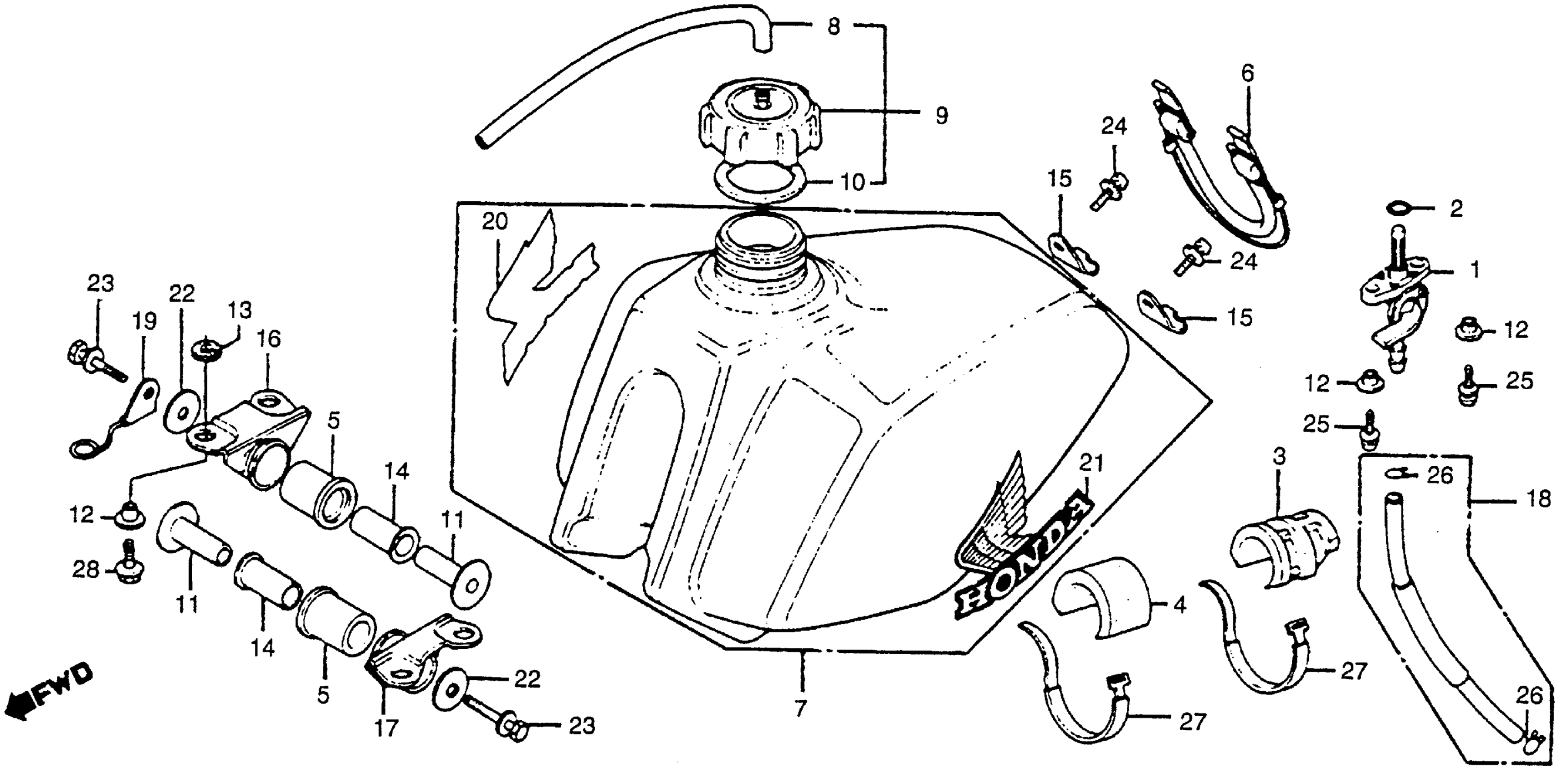

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 FUEL TANK 80 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-000.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-005.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK MOUNT (NOT AVAILABLE)

17504-467-000

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK SETTING

17508-467-000

Unavailable

6

BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17516-467-010

Unavailable

7

TANK, FUEL This part replaces 17520-467-000.

17520-467-010

Unavailable

8

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

9

CAP ASSY., FUEL FILLER (NOT AVAILABLE)

17620-467-020

Unavailable

10

GASKET, FUEL TANK CAP

17624-467-020

Unavailable

11

COLLAR, FR. FUEL TANK (NOT AVAILABLE)

17625-467-010

Unavailable

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

14

COLLAR, SLIDER (NOT AVAILABLE)

17628-467-010

Unavailable

15

HOOK, RR. FUEL TANK (NOT AVAILABLE)

17629-467-000

Unavailable

16

BRACKET, R. FR. FUEL TANK (NOT AVAILABLE)

17634-467-000

Unavailable

17

BRACKET, L. FR. FUEL TANK (NOT AVAILABLE)

17635-467-000

Unavailable

18

TUBE ASSY., FUEL (NOT AVAILABLE)

17681-467-000

Unavailable

19

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-467-010

Unavailable

20

MARK, R. FUEL TANK (A.M.) (NOT AVAILABLE) This part replaces 87123-467-000.

87123-467-010

Unavailable

20

MARK, R. FUEL TANK (A.M.) (NOT AVAILABLE)

87123-467-010

Unavailable

21

MARK, L. FUEL TANK (A.M.) This part replaces 87124-467-000.

87124-467-010

Unavailable

21

MARK, L. FUEL TANK (A.M.)

87124-467-010

Unavailable

22

WASHER, SEAT

90501-040-000

Unavailable

23

BOLT-WASHER (6X55)

93491-06055-08

Unavailable

24

SCREW-WASHER (6X12)

93891-06012-08

$1.49

25

SCREW-WASHER (6X20)

93891-06020-08

$1.80

26

CLIP, TUBE (B12)

95002-02120

$2.00

27

BAND A3, CABLE

95014-61300

$1.97

28

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

28

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

28

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49
