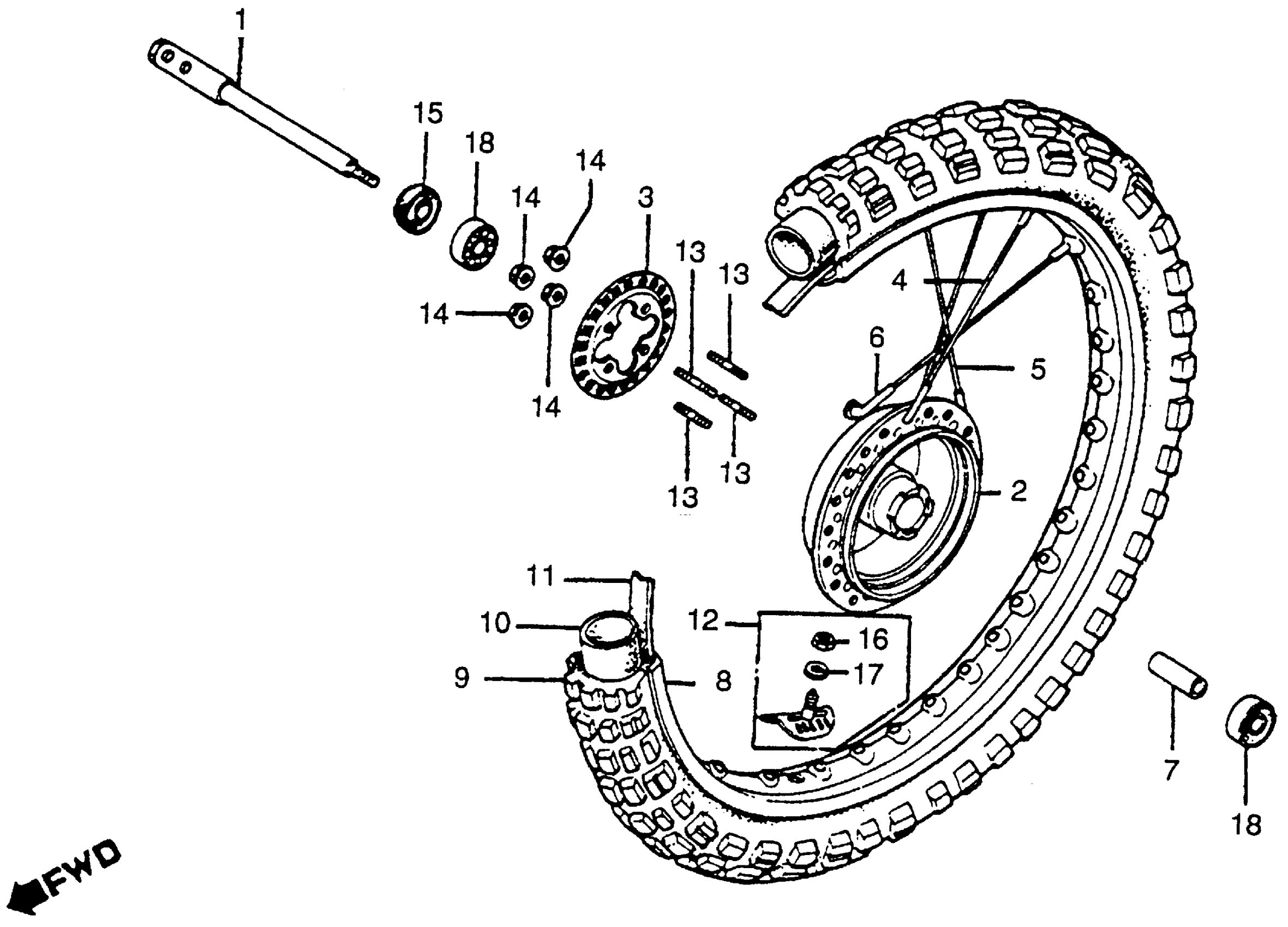

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-430-700

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE)

44601-430-000

Unavailable

3

FLANGE, FR. SPOKE This part replaces 44604-430-000.

44604-430-010

Unavailable

3

FLANGE, FR. SPOKE

44604-430-010

Unavailable

4

SPOKE B (9X195) This part replaces 97606-52230-Q0.

97714-69230-Q0

Unavailable

4

SPOKE B (9X195)

97714-69230-Q0

Unavailable

5

SPOKE B (9X195.5)

97284-52231-Q0

Unavailable

6

SPOKE B (9X236) (NOT AVAILABLE)

97276-52312-Q0

Unavailable

6

SPOKE B (9X236)

97412-69312-Q0

Unavailable

7

COLLAR, FR. WHEEL DISTANCE

44620-428-000

Unavailable

7

COLLAR, FR. WHEEL DISTANCE This part replaces 44620-430-000.

44620-428-000

Unavailable

8

RIM, FR. WHEEL (NOT AVAILABLE)

44701-430-003

Unavailable

9

TIRE, FR. (3.00-21) (4PR) (BS) (NOT AVAILABLE)

44711-467-003

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

11

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE)

44713-340-003

Unavailable

12

STOPPER, BEAD (1.60) (NOT AVAILABLE) This part replaces 44715-357-000.

44715-444-000

Unavailable

12

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

13

BOLT, STUD (6X28)

90135-107-720

$2.56

14

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

15

DUST SEAL (20X35X7) (ARAI)

91254-430-003

$9.46

15

DUST SEAL (20X35X7) (ARAI) This part replaces 91254-430-005.

91254-430-003

$9.46

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
