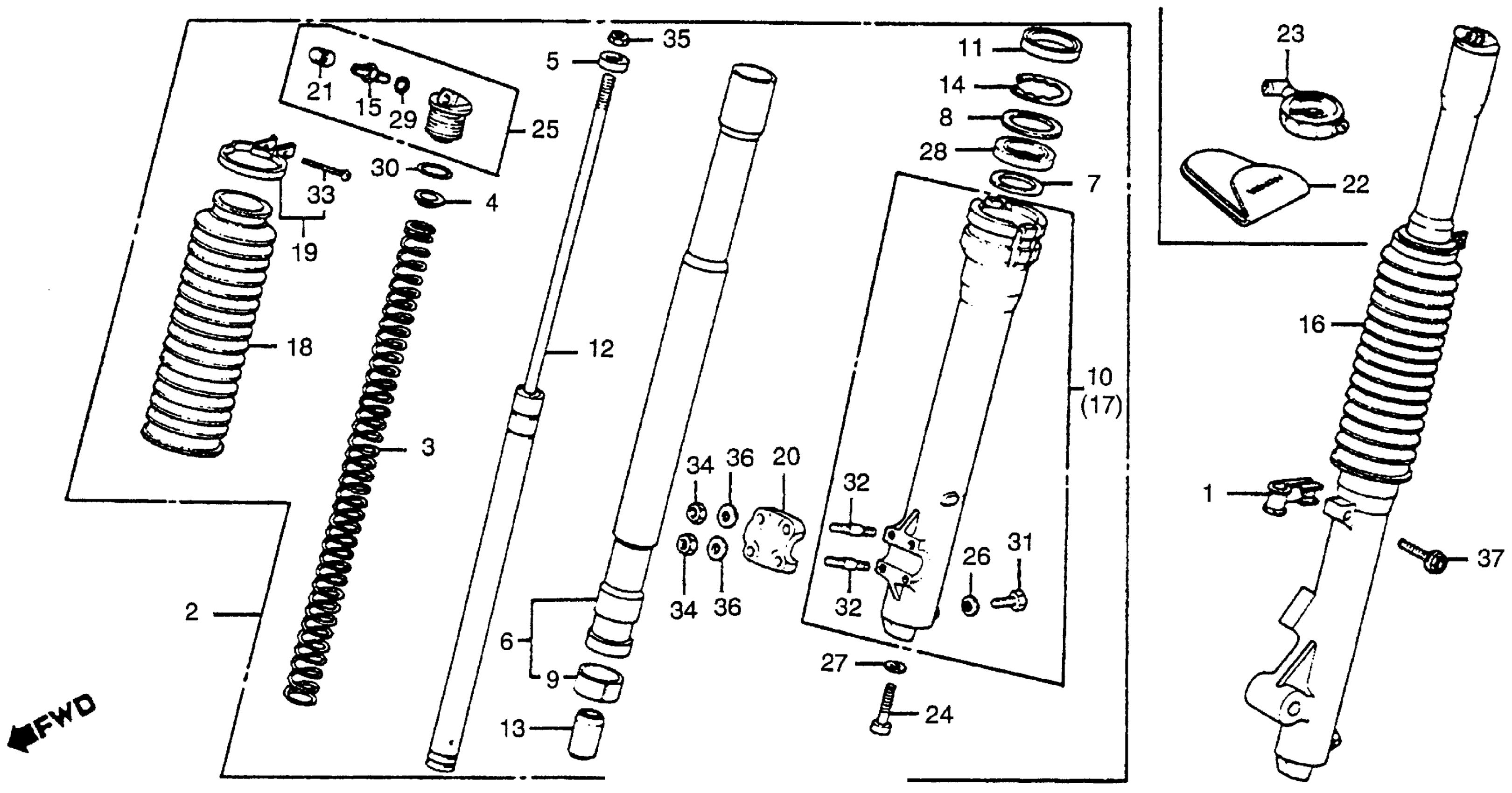

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 FRONT FORK 80 Diagram

#

Description
Price

1

CLAMP, FR. BRAKE CABLE (NOT AVAILABLE)

45461-467-000

Unavailable

2

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-467-672

Unavailable

3

SPRING, SWINGARM (SHOWA) (NOT AVAILABLE)

51401-467-671

Unavailable

4

SEAT, SPRING (UPPER) (NOT AVAILABLE)

51406-430-700

Unavailable

5

SEAT, SPRING (LOWER) (NOT AVAILABLE)

51407-430-000

Unavailable

6

PIPE, FR. FORK (SHOWA)

51410-467-003

Unavailable

7

RING, BACK-UP

51412-371-003

Unavailable

8

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

9

BUSH, SLIDER (SHOWA) (NOT AVAILABLE)

51415-467-003

Unavailable

10

CASE, R. (LOWER) (SHOWA)

51421-467-013

Unavailable

11

DUST SEAL, FR. FORK (NOT AVAILABLE)

51425-430-000

Unavailable

12

DAMPER, FR. (SHOWA) (NOT AVAILABLE)

51430-467-672

Unavailable

13

PIECE, OIL LOCK (NOT AVAILABLE)

51432-467-003

Unavailable

14

CIRCLIP (INNER) (51.5MM)

51447-469-003

$4.17

15

VALVE, AIR (SHOWA) This part replaces 51456-469-003.

51456-469-013

$33.69

15

VALVE, AIR (SHOWA)

51456-469-013

$33.69

16

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE) This part replaces 51500-467-672.

51500-467-673

Unavailable

16

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-467-673

Unavailable

17

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-467-013

Unavailable

18

BOOT, FR. FORK

51611-430-000

Unavailable

19

BAND, FR. FORK BOOT

51612-430-010

$8.11

20

HOLDER, AXLE (NOT AVAILABLE) This part replaces 51634-434-003.

51634-429-000

Unavailable

21

CAP, AIR VALVE

52425-381-771

$5.05

22

BAG, AIR PRESSURE GAUGE | (Optional).

89102-469-003

$6.57

23

GAUGE, AIR PRESSURE (KOWA) | (Optional).

89301-469-013

Unavailable

24

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

24

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

25

BOLT, FR. FORK This part replaces 90123-467-671.

90123-467-672

Unavailable

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

28

OIL SEAL SET OIL SEAL (37X48X12.5)

51495-467-405

$21.38

28

OIL SEAL SET This part replaces 91255-467-671.

51495-467-405

$21.38

29

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

29

O-RING (5.8X1.9) O-RING (5.6X1.9) (ARAI)

91305-323-000

$2.92

29

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

30

O-RING (29X2.4)

91344-PC9-004

$3.51

30

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

31

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

32

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

32

BOLT, STUD (6X25)

92900-06025-0E

$1.49

33

SCREW, PAN (3X25)

93500-03025-0A

$1.49

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (8MM)

94001-08000-0S

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

37

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
