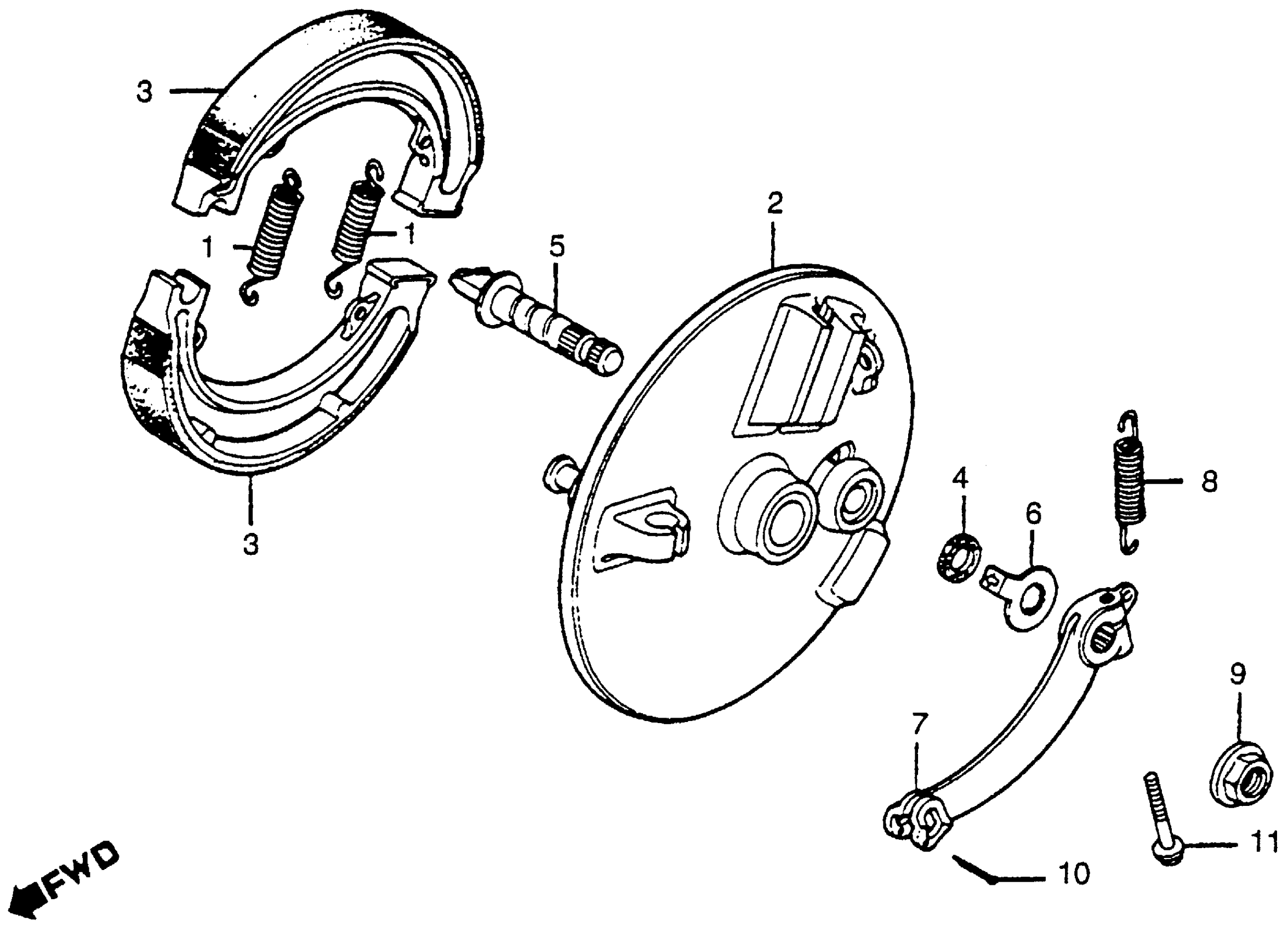

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 FRONT BRAKE PANEL Diagram

SHOE KIT, BRAKE This part replaces 431A2-430-000.

06430-430-405

Unavailable

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-430-000

Unavailable

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NA USE ALT:06450-430-405)

45120-430-000

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

CAM, FR. BRAKE

45141-430-000

Unavailable

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-430-000

Unavailable

ARM, FR. BRAKE (NOT AVAILABLE)

45410-430-000

Unavailable

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-357-000

Unavailable

NUT, FLANGE (12MM)

94050-12000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
