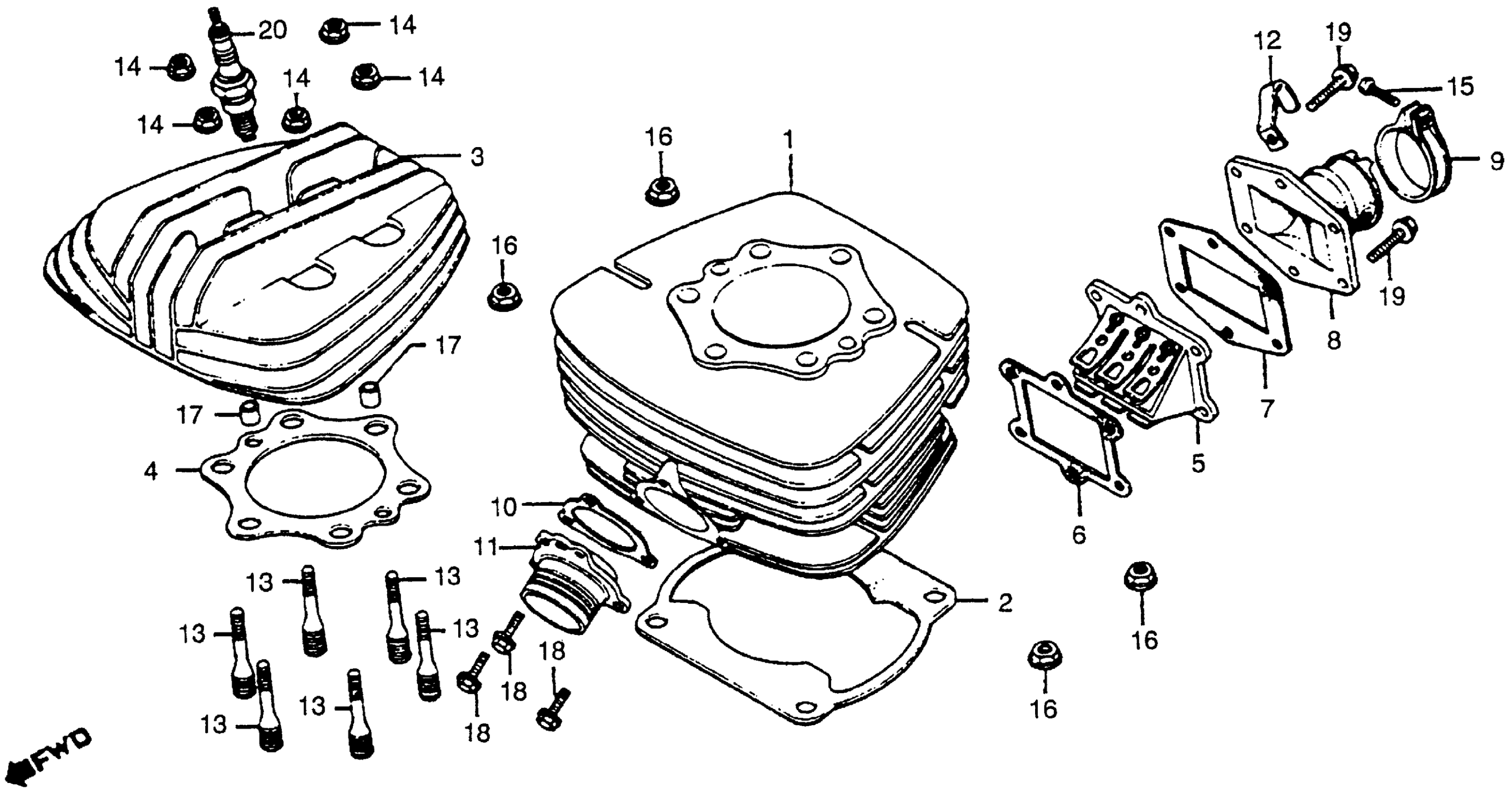

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 CYLINDER HEAD + CYLINDER + REED VALVE 80 Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-467-670

Unavailable

2

GASKET, CYLINDER This part replaces 12191-430-000.

12191-430-306

Unavailable

2

GASKET, CYLINDER

12191-430-306

Unavailable

2

GASKET, CYLINDER This part replaces 12191-467-000.

12191-430-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-467-670

Unavailable

4

GASKET, CYLINDER HEAD

12254-430-000

Unavailable

5

VALVE, REED (ARAI)

14100-467-003

Unavailable

6

GASKET A, REED VALVE

14132-KAE-000

$4.06

6

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

7

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

7

GASKET B, REED VALVE

14133-430-306

$7.64

8

INSULATOR, CARBURETOR

16221-430-000

$123.95

9

BAND, INSULATOR

16223-KS5-000

$14.20

9

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

10

GASKET, EX. PIPE This part replaces 18291-430-000.

18291-430-306

$4.92

10

GASKET, EX. PIPE

18291-430-306

$4.92

11

JOINT, EX. PIPE (NOT AVAILABLE)

18351-467-000

Unavailable

12

CLAMP, CABLE

32111-323-000

$3.98

13

BOLT, CYLINDER STUD (NOT AVAILABLE)

90032-430-000

Unavailable

14

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

14

NUT, FLANGE (8MM)

94050-08000

$1.49

15

SCREW, PAN (5X20)

93500-05020-0A

$1.49

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

PIN A, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

18

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

19

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

19

BOLT, FLANGE (6X22) This part replaces 95722-06022-00.

95701-06022-00

$1.80

20

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59560.

98079-59679

$5.80

20

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

20

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59654.

98079-59679

$5.80

20

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80
