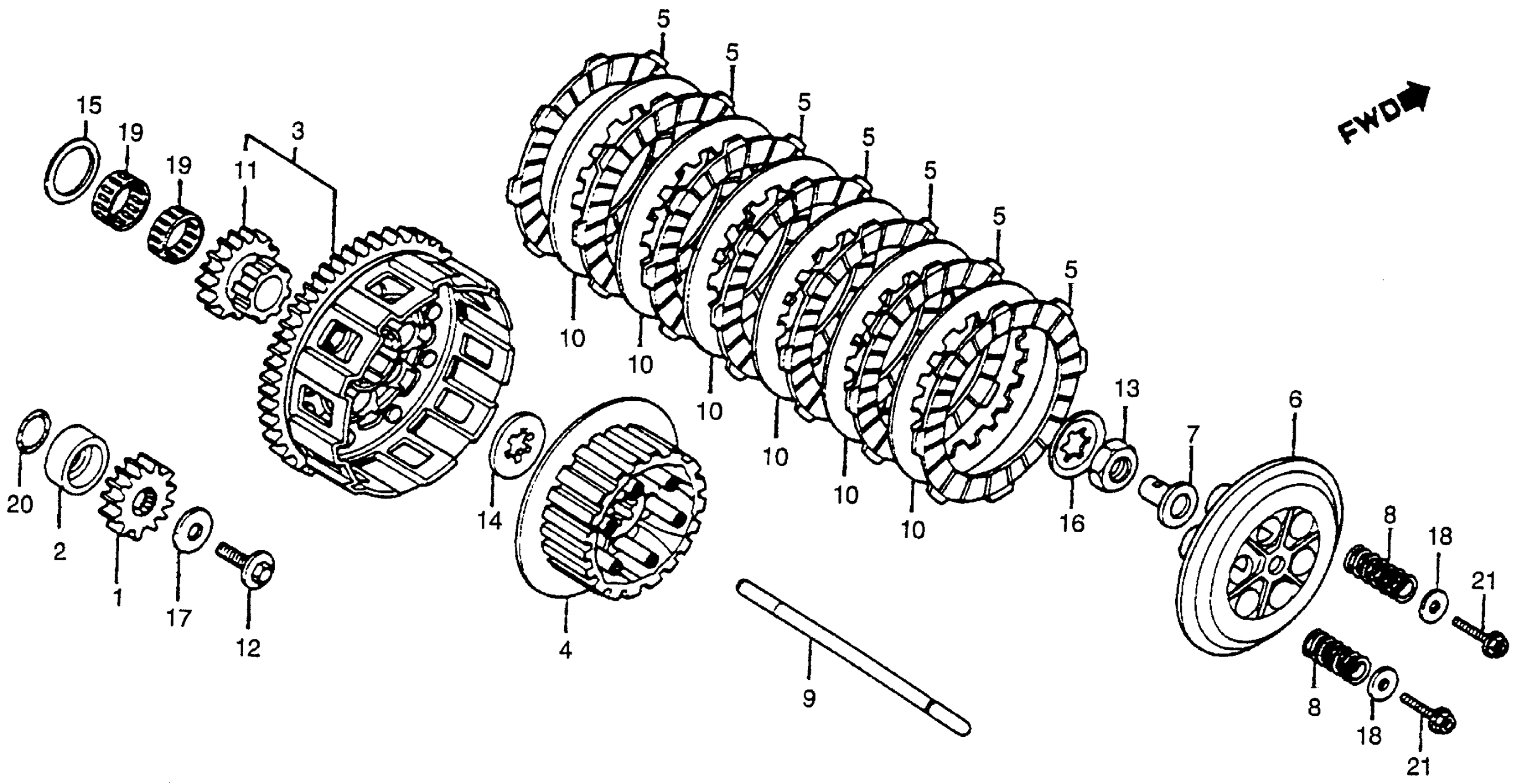

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (20T) (NOT AVAILABLE)

13615-430-000

Unavailable

2

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-430-000

Unavailable

3

CLUTCH (OUTER) (NOT AVAILABLE)

22100-430-020

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22120-430-010

Unavailable

5

DISK, CLUTCH FRICTION

22201-430-000

Unavailable

6

PLATE, CLUTCH PRESSURE

22351-430-000

Unavailable

7

PIECE, CLUTCH PRESSURE (NOT AVAILABLE)

22352-430-000

Unavailable

8

SPRING, CLUTCH

22401-430-000

Unavailable

9

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22851-430-010

Unavailable

10

PLATE A, CLUTCH

23311-200-000

$12.22

11

GEAR, KICK STARTER (NOT AVAILABLE)

28241-430-300

Unavailable

12

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

13

NUT (20MM)

90235-430-010

Unavailable

14

WASHER, LOCK (22MM) (NOT AVAILABLE)

90450-430-000

Unavailable

15

WASHER, THRUST (24X36) (NOT AVAILABLE)

90459-430-000

Unavailable

16

WASHER, LOCK (NOT AVAILABLE)

90461-430-000

Unavailable

17

WASHER, SPRING (10MM)

90481-430-000

$6.19

18

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

19

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-004.

91021-430-006

Unavailable

19

BEARING, NEEDLE (24X28X13) (TOMUSON)

91021-430-006

Unavailable

19

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-008.

91021-430-006

Unavailable

20

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

20

O-RING (22X3.0)

91307-425-003

$2.59

21

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

21

BOLT, FLANGE (6X22) This part replaces 95722-06022-00.

95701-06022-00

$1.80
