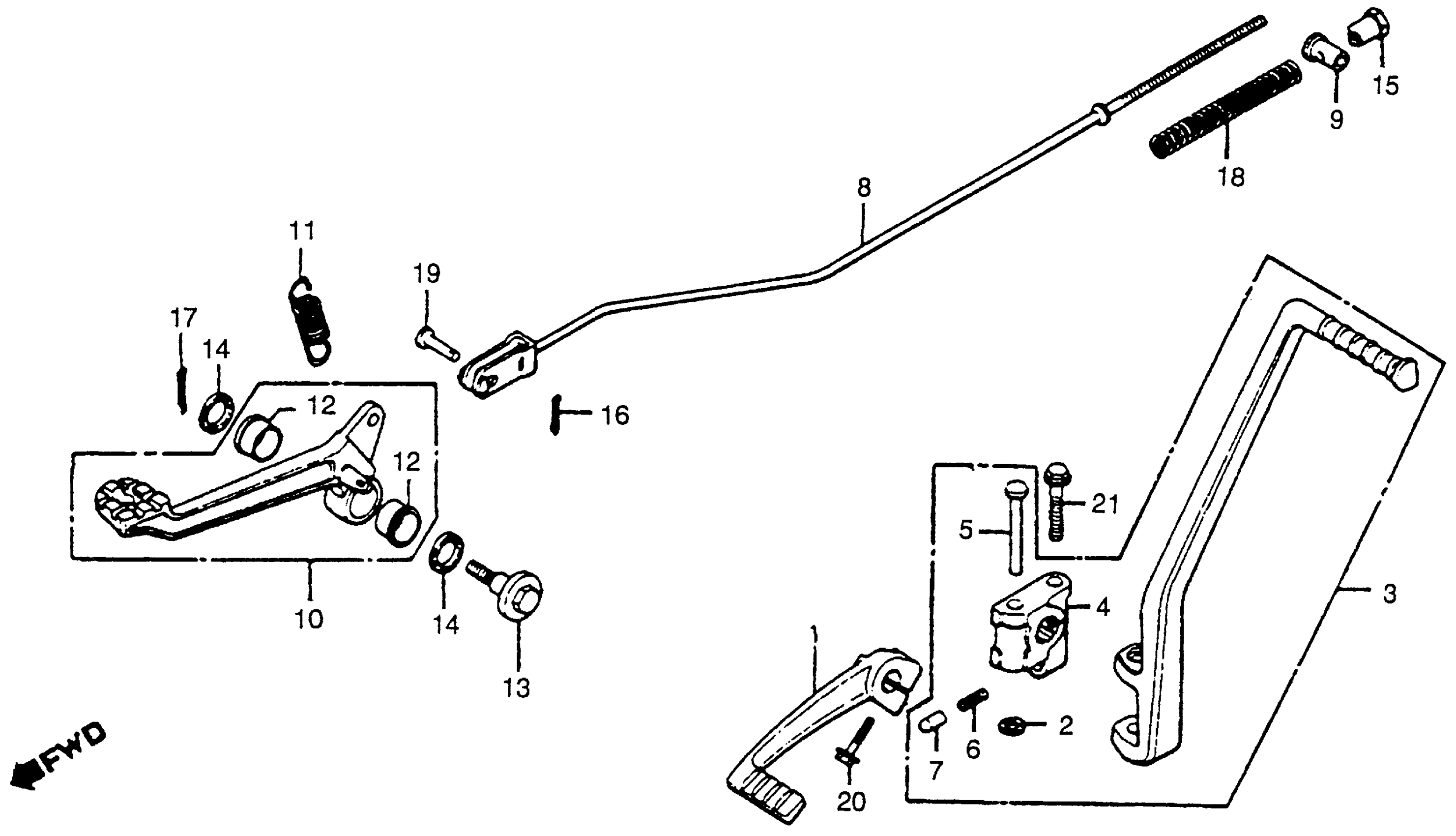

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 CHANGE PEDAL + BRAKE PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-467-000

Unavailable

CLIP, KICK STARTER ARM

28293-124-000

$2.41

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-430-010

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28302-430-010

Unavailable

PIN, KICK STARTER (NOT AVAILABLE)

28321-430-000

Unavailable

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-357-000

Unavailable

PIECE, KICK STARTER ARM JOINT (NOT AVAILABLE)

28334-430-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-467-000.

43451-MC9-830

Unavailable

JOINT, BRAKE ROD (NOT AVAILABLE)

43455-467-000

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46510-430-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46511-430-000

Unavailable

BUSHING, PEDAL

46512-360-300

$6.87

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-430-000

Unavailable

DUST SEAL, BRAKE PEDAL

46516-430-000

Unavailable

NUT, BRAKE ADJUSTING

90339-430-000

Unavailable

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

BOLT, FLANGE (8X25)

95701-08025-08

$1.49
