- CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050
CARBURETOR

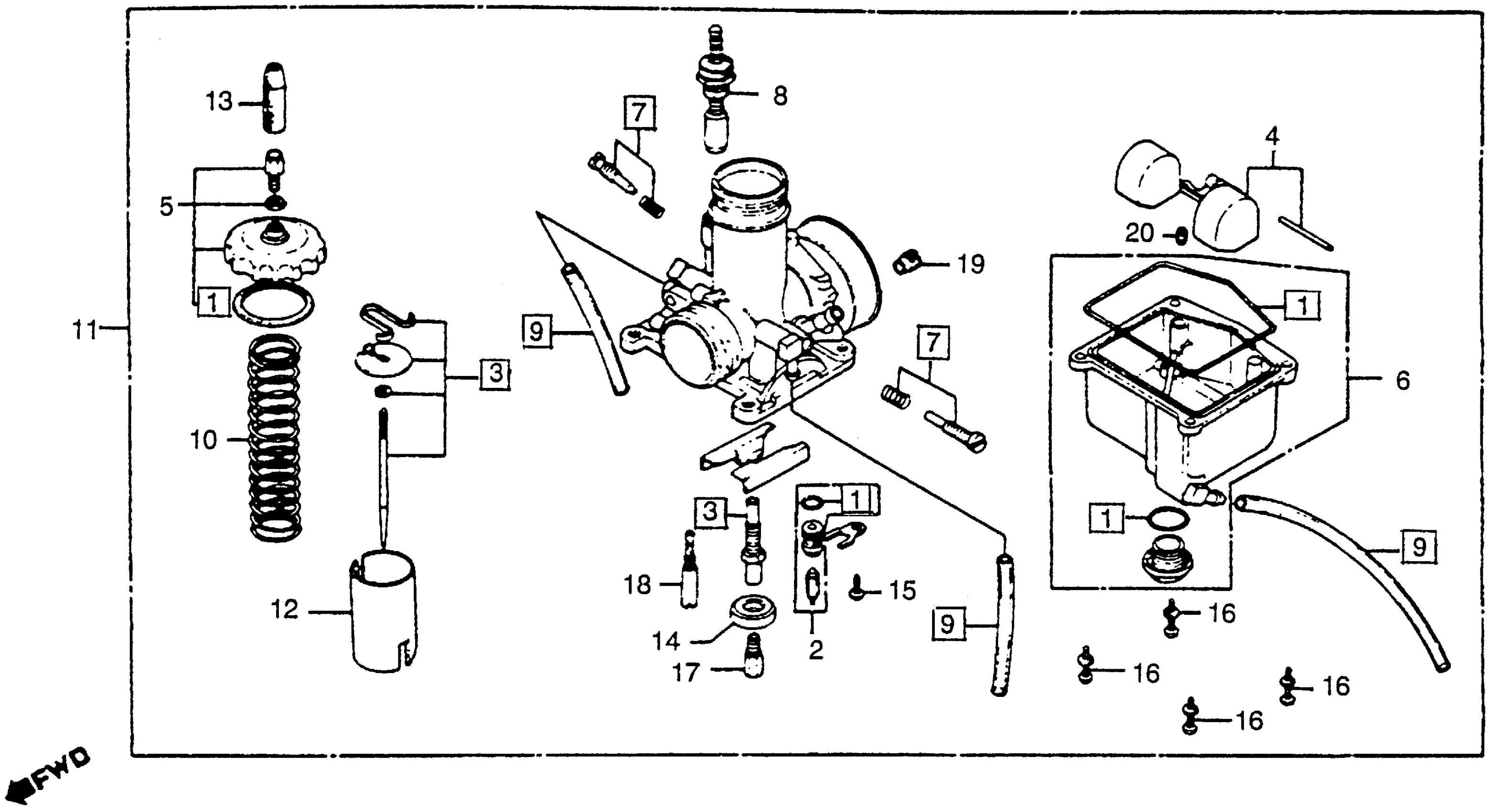

Honda CR250RA (80) ELSINORE, JPN, VIN# ME03-2001031 TO ME03-2016050 CARBURETOR Diagram
#
Description
Price
1
GASKET SET This part replaces 16010-430-000.
16010-430-305
Unavailable
2
VALVE SET, FLOAT
16011-356-004
Unavailable
2
VALVE SET, FLOAT This part replaces 16011-360-004.
16011-356-004
Unavailable
2
VALVE SET, FLOAT This part replaces 16011-360-700.
16011-356-004
Unavailable
3
NEEDLE SET, JET (NOT AVAILABLE)
16012-467-004
Unavailable
4
FLOAT SET
16013-360-004
Unavailable
5
TOP SET (NOT AVAILABLE)
16014-430-000
Unavailable
6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-430-010
Unavailable
7
SCREW SET (NOT AVAILABLE) This part replaces 16016-360-004.
16016-400-004
Unavailable
8
VALVE SET, STARTER (NOT AVAILABLE)
16046-430-020
Unavailable
9
TUBE SET, FUEL (NOT AVAILABLE)
16048-430-000
Unavailable
10
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16210-430-010
Unavailable
11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-467-004
Unavailable
12
VALVE, THROTTLE (STD)
16111-430-010
Unavailable
12
VALVE, THROTTLE (#2.0) (NOT AVAILABLE) | (Optional).
16111-430-812
Unavailable
12
VALVE, THROTTLE (#3.0) (NOT AVAILABLE) | (Optional).
16111-430-822
Unavailable
14
HOLDER, JET (NOT AVAILABLE)
16168-395-004
Unavailable
18
JET, SLOW (#55) | (Optional).
99103-358-0550
Unavailable
18
JET, SLOW (#60) (NOT AVAILABLE)
99103-358-0600
Unavailable
18
JET, SLOW (#65) (NOT AVAILABLE) | (Optional).
99103-358-0650
Unavailable
19
JET, AIR (#200)
99105-357-2000
Unavailable
20
JET, SLOW AIR (#130) (NOT AVAILABLE)
99164-601-1300
Unavailable
