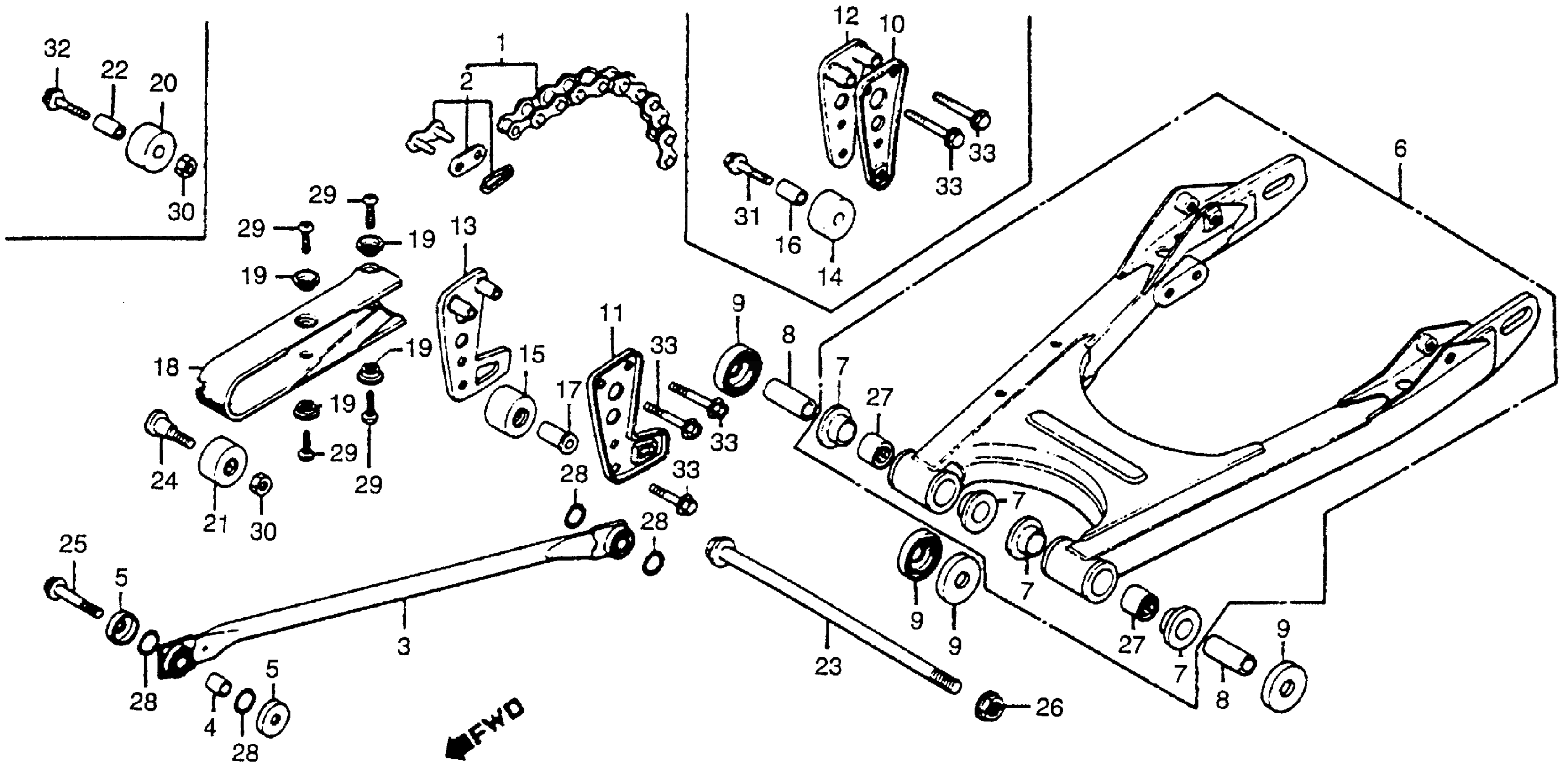

Honda CR250RA (79) ELSINORE, JPN, VIN# CR250R-2100006 TO CR250R-2111237 SWINGARM + DRIVE CHAIN 78-79 Diagram

#

Description
Price

1

CHAIN, DRIVE (520TR-108L) (DAIDO) (NOT AVAILABLE)

40530-430-003

Unavailable

1

CHAIN, DRIVE (520TR-108L) (DAIDO) (NOT AVAILABLE) This part replaces 40530-430-005.

40530-430-003

Unavailable

1

CHAIN, DRIVE (520TR-110L) (DAIDO) (NOT AVAILABLE) | (Optional).

40530-430-811

Unavailable

1

CHAIN, DRIVE (520TR-110L) (DAIDO) (NOT AVAILABLE) CHAIN, DRIVE (520KM-110L) | (Optional). This part replaces 40530-430-812.

40530-430-811

Unavailable

2

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

2

MASTER LINK

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

3

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-430-700

Unavailable

4

COLLAR, FR. STOPPER ARM (NOT AVAILABLE)

43436-430-000

Unavailable

5

CAP, FR. STOPPER ARM DUST (NOT AVAILABLE)

43437-430-000

Unavailable

6

SWINGARM ASSY., RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

52000-430-020ZA

Unavailable

7

BUSH, PIVOT THRUST

52109-430-300

$16.01

8

COLLAR, RR. SWINGARM

52141-430-000

Unavailable

9

CAP, DUST SEAL (NIPPON)

52144-KR8-005

$13.52

9

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-003.

52144-KR8-005

$13.52

9

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-005.

52144-KR8-005

$13.52

11

GUIDE A, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52156-430-700ZA

Unavailable

13

GUIDE B, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52157-430-700ZA

Unavailable

15

ROLLER, CHAIN GUIDE

52158-430-700

Unavailable

17

COLLAR, CHAIN GUIDE (NOT AVAILABLE)

52159-430-700

Unavailable

18

RUBBER, CHAIN SLIDER (NOT AVAILABLE)

52170-430-701

Unavailable

19

COLLAR, CHAIN SLIDER (NOT AVAILABLE)

52171-430-000

Unavailable

21

ROLLER, CHAIN TENSIONER (NOT AVAILABLE)

52175-430-700

Unavailable

23

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA3-710

Unavailable

23

BOLT, SWINGARM (NOT AVAILABLE) This part replaces 90117-430-000.

90117-KA3-710

Unavailable

24

BOLT, CHAIN TENSIONER

90124-430-700

Unavailable

25

BOLT, RR. BRAKE PANEL STOPPER ARM (NOT AVAILABLE)

90133-430-000

Unavailable

26

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

27

BEARING, NEEDLE (20X26X20) (TOYO)

91070-GC4-601

$24.72

27

BEARING, NEEDLE (20X26X20) (TOYO) This part replaces 91071-430-003.

91070-GC4-601

$24.72

28

O-RING (20X1.8) (NOT AVAILABLE)

91302-430-003

Unavailable

29

SCREW, PAN (4X6)

93500-04006-0H

$1.49

30

NUT, HEX. (10MM)

94002-10080-0S

$1.49

33

BOLT, FLANGE (8X40) This part replaces 95800-08040-08.

95801-08040-08

$2.17

33

BOLT, FLANGE (8X40)

95801-08040-08

$2.17
