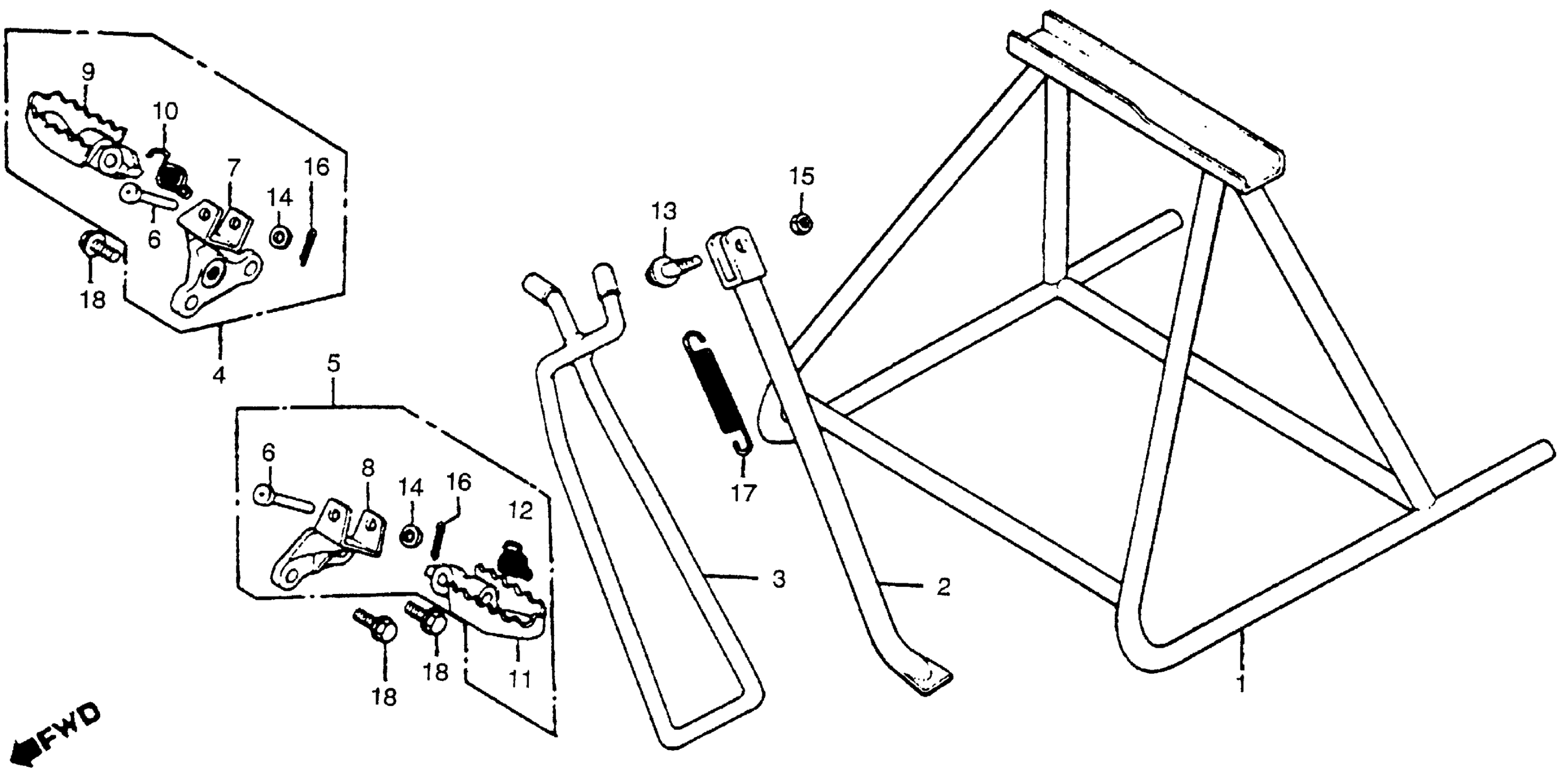

Honda CR250RA (79) ELSINORE, JPN, VIN# CR250R-2100006 TO CR250R-2111237 SIDE STAND + STEP Diagram

STAND, MAIN (NOT AVAILABLE) | (Optional).

50500-430-810

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-430-000

Unavailable

STEP ASSY., R. (NOT AVAILABLE)

50601-430-000

Unavailable

STEP ASSY., L. (NOT AVAILABLE)

50602-430-000

Unavailable

PIN, STEP JOINT (NOT AVAILABLE) This part replaces 50603-430-010.

50603-444-000

Unavailable

BRACKET, R. STEP BAR

50613-430-010

Unavailable

BRACKET, R. STEP BAR (NOT AVAILABLE) This part replaces 50614-430-010.

50613-467-000

Unavailable

ARM, R. STEP

50616-430-000

Unavailable

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

ARM, L. STEP

50642-430-000

Unavailable

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

WASHER (10.2MM)

90401-430-000

$1.64

NUT, HEX. (10MM)

94002-10080-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

BOLT, FLANGE (10X20) This part replaces 95700-10020-08.

95701-10020-08

$2.25

BOLT, FLANGE (10X20)

95701-10020-08

$2.25

BOLT, FLANGE (10X20) This part replaces 95701-10020-18.

95701-10020-08

$2.25
