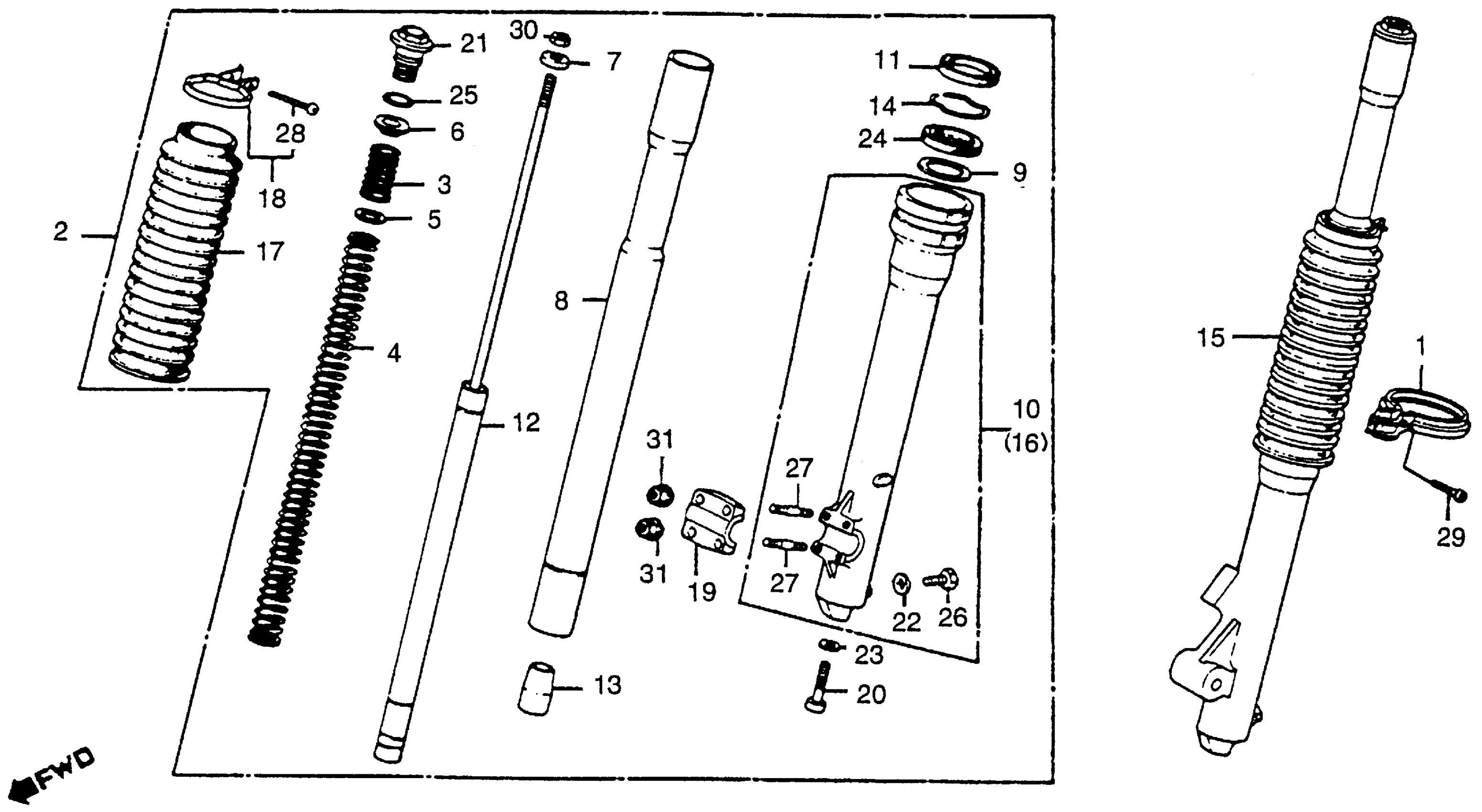

Honda CR250RA (79) ELSINORE, JPN, VIN# CR250R-2100006 TO CR250R-2111237 FRONT FORK 79 Diagram

#

Description
Price

1

CLAMP, FR. BRAKE CABLE (NOT AVAILABLE)

45461-430-701

Unavailable

2

FORK ASSY., R. FR.

51400-430-700

Unavailable

3

SPRING A, FR. FORK

51401-430-010

Unavailable

4

SPRING B, FR. FORK (NOT AVAILABLE)

51402-430-700

Unavailable

5

PLATE, SPRING JOINT

51403-430-000

Unavailable

6

SEAT, SPRING (UPPER) (NOT AVAILABLE)

51406-430-700

Unavailable

7

SEAT, SPRING (LOWER) (NOT AVAILABLE)

51407-430-000

Unavailable

8

PIPE, FR. FORK (NOT AVAILABLE)

51410-430-010

Unavailable

9

RING, BACK-UP

51412-371-003

Unavailable

10

CASE, R. (LOWER) (NOT AVAILABLE)

51421-430-700

Unavailable

11

DUST SEAL, FR. FORK (NOT AVAILABLE)

51425-430-000

Unavailable

12

DAMPER (NOT AVAILABLE)

51430-430-700

Unavailable

13

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-430-000

Unavailable

14

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

14

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

15

FORK ASSY., L. FR.

51500-430-700

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE)

51521-430-700

Unavailable

17

BOOT, FR. FORK

51611-430-000

Unavailable

18

BAND, FR. FORK BOOT

51612-430-010

$8.11

19

HOLDER, AXLE (NOT AVAILABLE) This part replaces 51634-434-003.

51634-429-000

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

BOLT, FR. FORK (NOT AVAILABLE)

90123-430-000

Unavailable

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

OIL SEAL SET

51495-467-405

$21.38

24

OIL SEAL SET This part replaces 91255-371-305.

51495-467-405

$21.38

24

OIL SEAL SET This part replaces 91255-431-671.

51495-467-405

$21.38

24

OIL SEAL SET This part replaces 91255-467-671.

51495-467-405

$21.38

25

O-RING (29X2.4)

91344-PC9-004

$3.51

25

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

26

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

27

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

27

BOLT, STUD (6X25)

92900-06025-0E

$1.49

28

SCREW, PAN (3X25)

93500-03025-0A

$1.49

29

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

29

SCREW, PAN (6X12)

93500-06012-0A

$1.49

29

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

NUT, FLANGE (6MM)

94050-06000

$1.49
