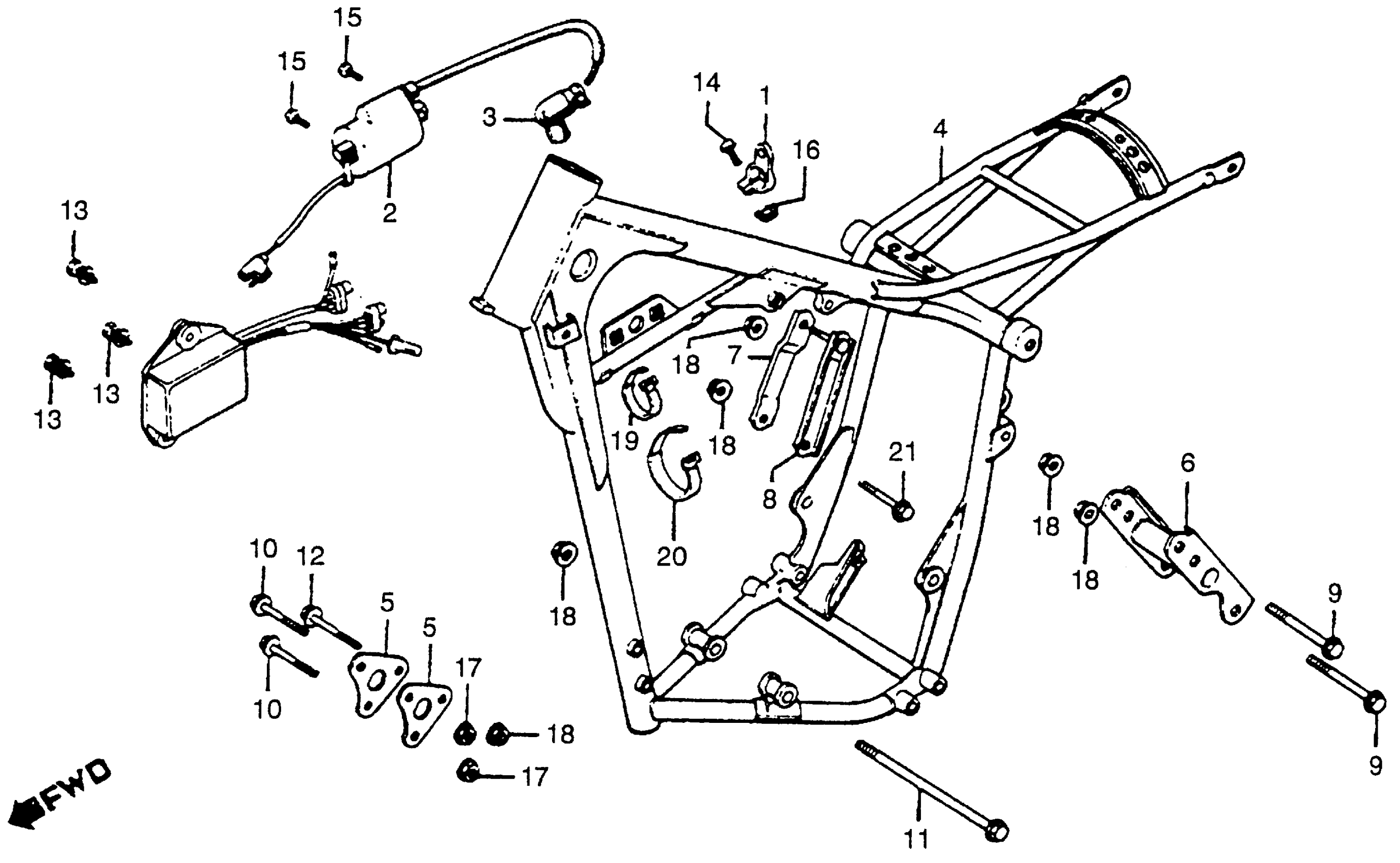

Honda CR250RA (79) ELSINORE, JPN, VIN# CR250R-2100006 TO CR250R-2111237 FRAME + IGNITION COIL 78-79 Diagram

#

Description
Price

1

CLAMP, THROTTLE CABLE (NOT AVAILABLE)

17918-430-000

Unavailable

2

COIL, C.D.I. (NOT AVAILABLE)

30500-360-003

Unavailable

3

TERMINAL ASSY., COIL (NOT AVAILABLE)

30700-360-701

Unavailable

4

FRAME *R23* (TAHITIAN RED) (NOT AVAILABLE)

50100-430-701ZA

Unavailable

5

BRACKET, FR. ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50351-430-000ZA

Unavailable

6

BRACKET, RR. ENGINE *R23* (TAHITIAN RED) (NOT AVAILABLE)

50354-430-000ZA

Unavailable

7

BRACKET, R. HEAD HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50355-430-000ZA

Unavailable

8

BRACKET, L. HEAD HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50356-430-000ZA

Unavailable

9

BOLT, HEX. (10X90) (NOT AVAILABLE)

90102-430-000

Unavailable

10

BOLT, HEX. (8X70) (NOT AVAILABLE)

90103-430-000

Unavailable

11

BOLT, HEX. (10X175) (NOT AVAILABLE)

90107-430-000

Unavailable

12

BOLT, HEX. (10X75) (NOT AVAILABLE)

90108-430-000

Unavailable

13

BOLT-WASHER (6X16)

93404-06016-08

$1.55

13

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

14

SCREW, PAN (5X16)

93500-05016-0H

$1.49

15

SCREW, PAN (5X20)

93500-05020-0H

$1.49

16

NUT, FLANGE (5MM)

94050-05080

$1.49

17

NUT, FLANGE (8MM)

94050-08080

$1.49

18

NUT, FLANGE (10MM)

94050-10080

$3.24

19

BAND B1, CABLE

32161-404-000

$2.23

19

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

20

BAND A3, CABLE

95014-61300

$1.97

21

BOLT, FLANGE (10X50) This part replaces 95700-10050-08.

95701-10050-08

$2.59

21

BOLT, FLANGE (10X50)

95701-10050-08

$2.59
