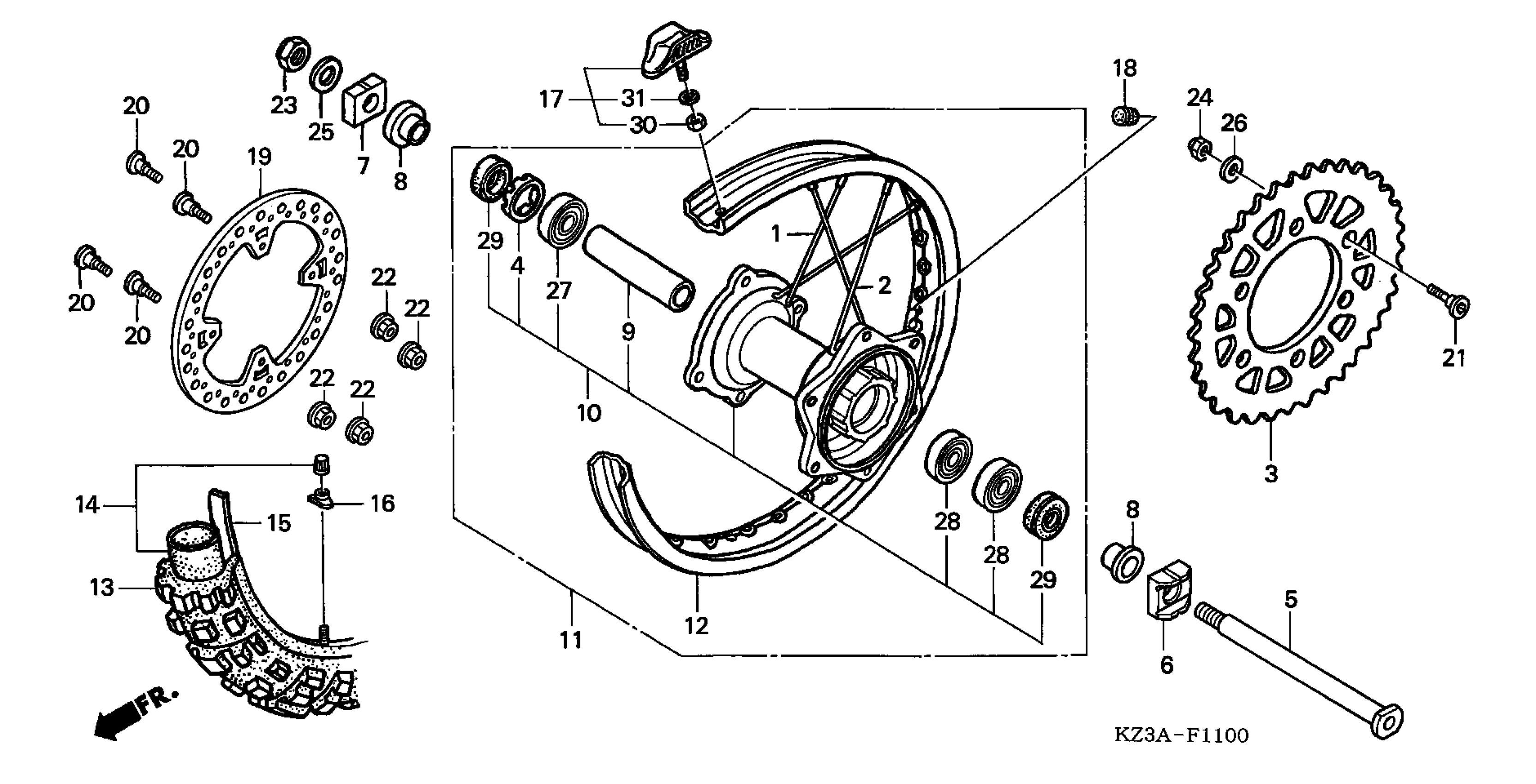

Description

Price

1

SPOKE SET, RR. (INSIDE)

06420-KRN-710

$3.92

2

SPOKE SET, RR. (OUTSIDE)

06421-KRN-710

$3.92

3

SPROCKET, FINAL DRIVEN (48T) | (Optional).

41202-KZ3-J40

$122.82

3

SPROCKET, FINAL DRIVEN (49T)

41201-KZ3-J40

$122.82

3

SPROCKET, FINAL DRIVEN (50T) | (Optional).

41203-KZ3-J20

$110.41

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

5

AXLE, RR. WHEEL

42301-KZ4-J40

$52.11

6

COLLAR, L. RR. AXLE

42305-KZ4-J40

$16.96

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

8

COLLAR, RR. WHEEL SIDE

42311-KZ4-J40

$21.21

9

COLLAR, RR. WHEEL DISTANCE

42620-KZ4-J20

$27.72

10

HUB SUB-ASSY., RR.

42635-KRN-710

$325.54

11

WHEEL SUB-ASSY., RR.

42650-MEN-710

Unavailable

12

RIM, RR. WHEEL (19X2.15) This part replaces 42701-KZ3-J41.

42701-MEN-A11

$314.75

13

TIRE, RR. (110/90-19) (62M D756) (DUNLOP)

42711-MEN-004

Unavailable

14

TUBE, TIRE (DUNLOP)

42712-KZ3-611

$42.74

15

FLAP, TIRE (DUNLOP)

42713-KZ3-611

$5.90

16

CAP, VALVE

42714-KA3-710

$10.46

17

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

18

CAP, RIM HOLE

42717-329-000

$4.21

19

DISK, RR. BRAKE

43351-KZ4-J40

$208.70

20

BOLT, DISK (6X19)

90105-MAC-680

$4.99

21

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

22

NUT, U (6MM)

90301-473-003

$4.07

23

NUT, U (22MM)

90305-KZ4-J20

$8.96

24

NUT, U (8MM)

90309-ML3-791

$4.35

25

WASHER (22X35X2)

90401-KZ4-J20

$2.89

26

WASHER (8MM)

90465-MC4-000

$2.51

27

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

28

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

29

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

WASHER, SPRING (8MM)

94111-08000
