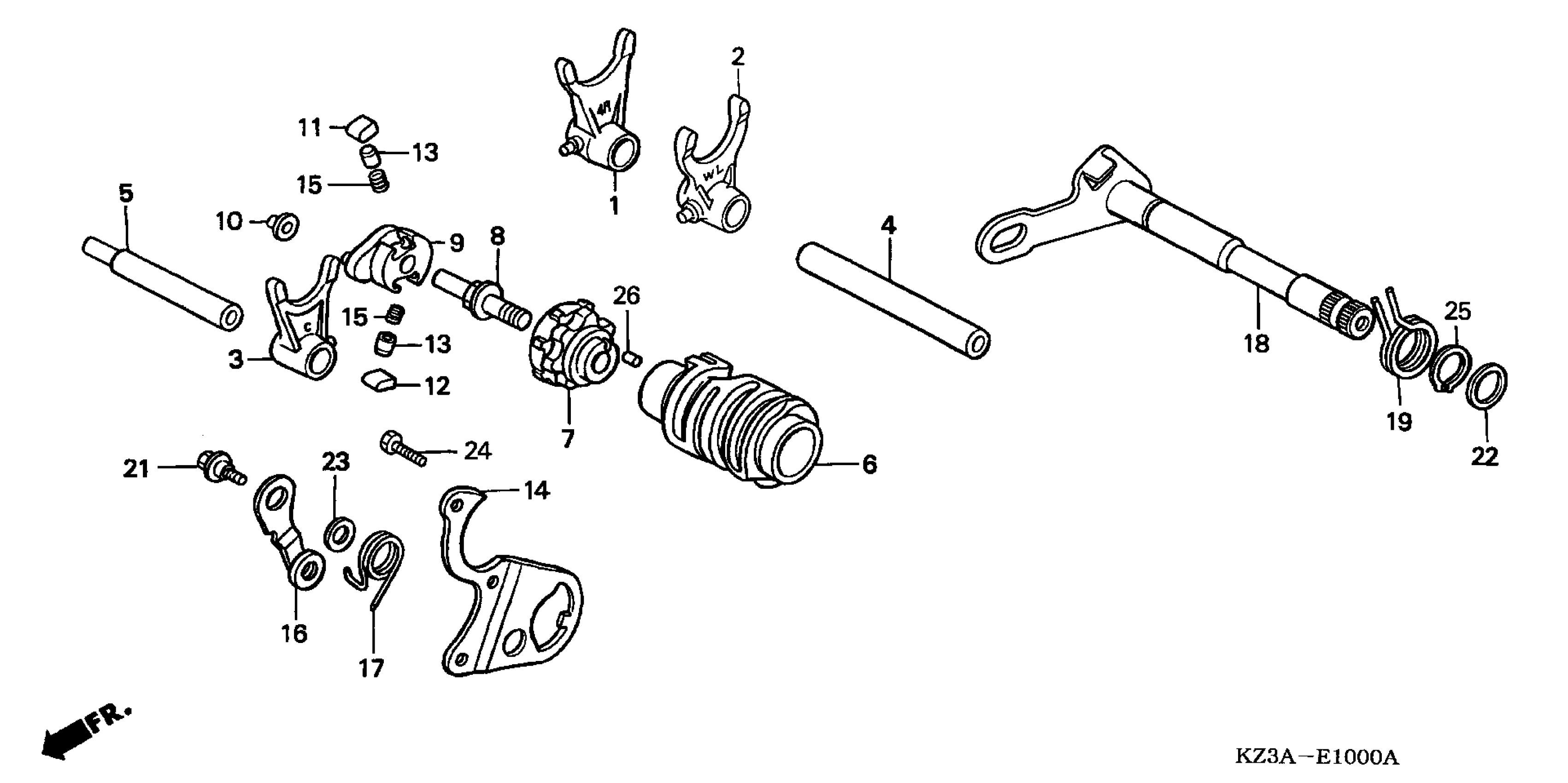

Honda CR250RA (07) MOTORCYCLE, JPN, VIN# JH2ME033-7M100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MEN-730

$67.66

2

FORK, L. GEARSHIFT

24221-KSK-730

Unavailable

3

FORK, CENTER GEARSHIFT

24231-MEN-730

$61.53

4

SHAFT, MAINSHAFT GEARSHIFT FORK

24265-KSK-730

Unavailable

5

COUNTERSHAFT, GEARSHIFT FORK

24266-KSK-730

Unavailable

6

DRUM, GEARSHIFT

24311-KSK-730

Unavailable

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-HA0-000

$11.56

9

SHIFTER, GEARSHIFT DRUM

24321-KZ3-891

$49.81

10

COLLAR, SHIFTER

24322-MM4-000

$4.88

11

PAWL A, RATCHET

24324-KA3-711

$12.13

12

PAWL B, RATCHET

24325-KA3-711

$12.13

13

PLUNGER, PAWL

24326-KBH-901

$5.56

14

PLATE, GUIDE

24328-KZ3-L30

Unavailable

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

16

STOPPER, DRUM

24430-KA3-740

$20.10

17

SPRING, DRUM STOPPER

24435-KZ4-690

$4.53

18

SPINDLE, GEARSHIFT

24610-KZ3-L20

Unavailable

19

SPRING, GEARSHIFT RETURN

24651-KZ3-860

Unavailable

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

22

WASHER (14MM)

90451-155-000

$3.62

23

WASHER (6.1MM)

90435-HB3-000

$2.80

24

BOLT, FLANGE (8X18)

96300-08018-00

$1.66

25

CIRCLIP (OUTER) (14MM)

94510-14000

$0.94

26

ROLLER (4X8)

96220-40080

$0.47
