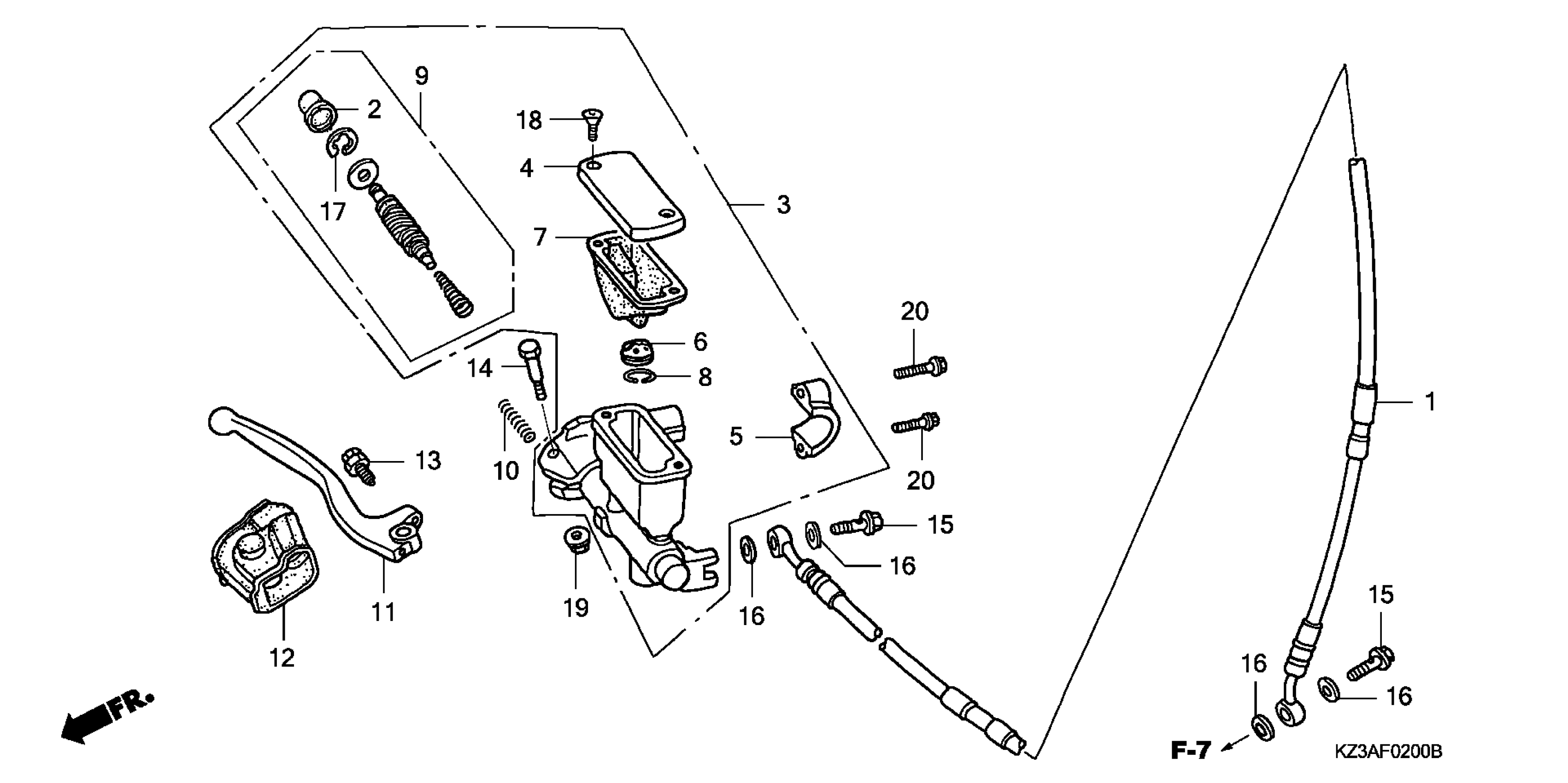

Honda CR250RA (07) MOTORCYCLE, JPN, VIN# JH2ME033-7M100001 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-MEN-003

Unavailable

BOOT

45504-KN5-006

$10.46

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-KCE-671.

45510-MEY-305

$219.09

CAP, MASTER CYLINDER

45513-KCE-671

$21.13

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.39

SEPARATOR

45518-KA3-731

$11.18

DIAPHRAGM

45520-KA3-731

$12.45

RING

45523-KA3-731

$2.71

PISTON SET, MASTER CYLINDER

45530-KCE-671

$40.04

SPRING, BRAKE LEVER

53174-KN5-006

$2.83

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KCE-670.

53175-KPT-305

$16.89

COVER, R. HANDLE LEVER

53176-ML3-791

$6.48

BOLT SET, ADJUSTER

90111-ML3-791

$6.30

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.20

BOLT, OIL (10X22)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$6.56

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
