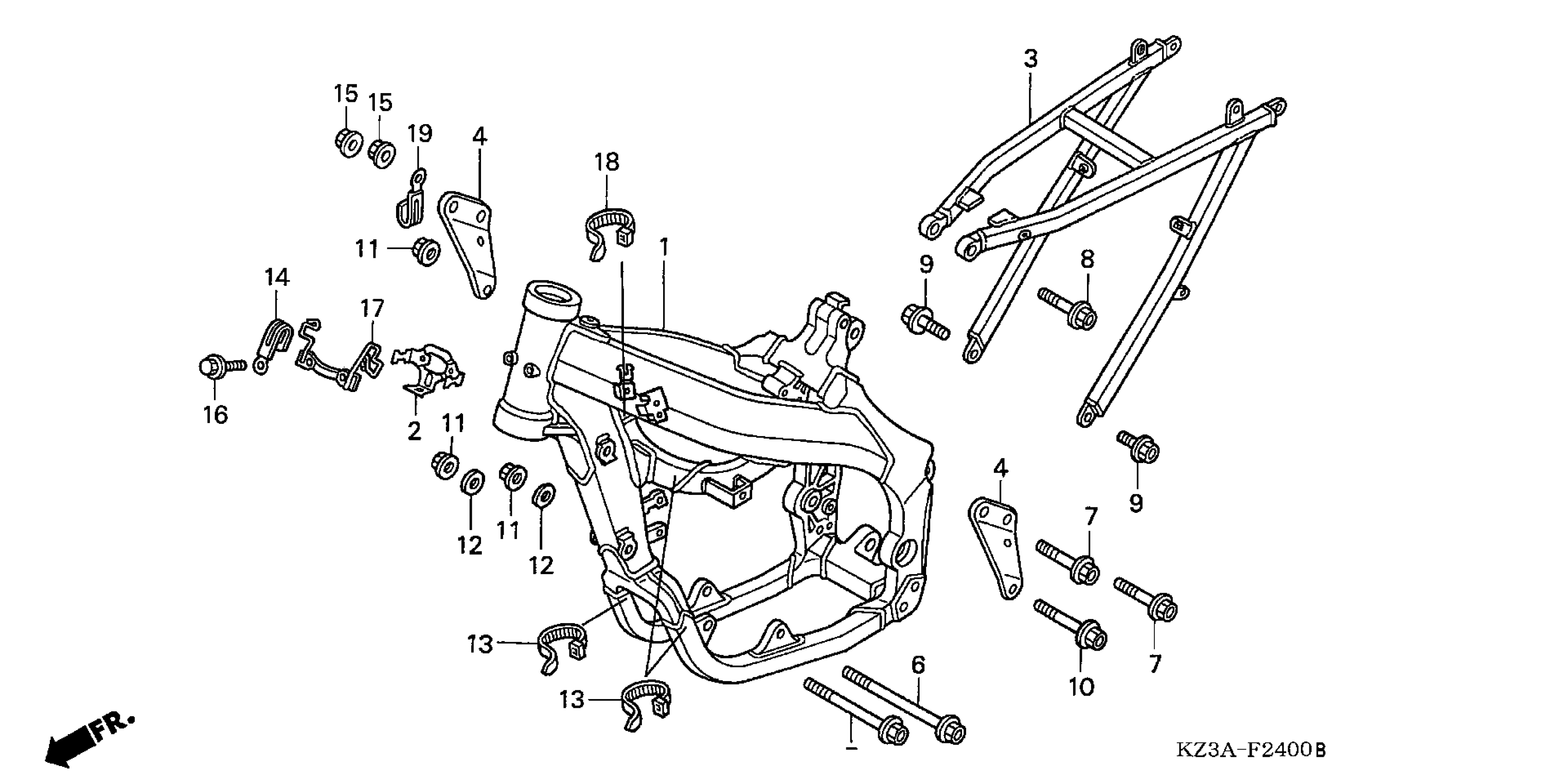

Honda CR250RA (07) MOTORCYCLE, JPN, VIN# JH2ME033-7M100001 FRAME Diagram

FRAME

50100-KSK-712

Unavailable

BRACKET, ENGINE CONTROL UNIT

50124-KZ3-J41

Unavailable

FRAME, RR.

50200-KSR-711

Unavailable

BRACKET, HEAD HANGER This part replaces 50407-KZ3-J40.

50407-KZ3-J50

Unavailable

BRACKET, HEAD HANGER

50407-KZ3-J50

Unavailable

BOLT, FLANGE (10X117)

90101-KZ3-J20

$4.17

BOLT, FLANGE (10X138)

90102-KZ3-J20

$4.75

BOLT, FLANGE (8X53)

90103-MM0-620

$3.89

BOLT, FLANGE (8X70)

90120-KZ4-J40

$4.40

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.66

BOLT, FLANGE (10X53) This part replaces 90131-ML3-910.

90112-GK4-000

$4.45

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.72

WASHER (10MM)

90410-HC4-000

$3.81

BAND, WIRE

90651-KV6-003

$2.92

NUT, FLANGE (8MM)

94050-08000

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92201-06012-0A.

92101-06012-0A

$1.49

GUIDE, CABLE

50128-KSK-710

Unavailable

BAND, WIRE

90651-KV6-003

$2.92

CLIP, WIRE HARNESS

91405-689-000

$10.13
