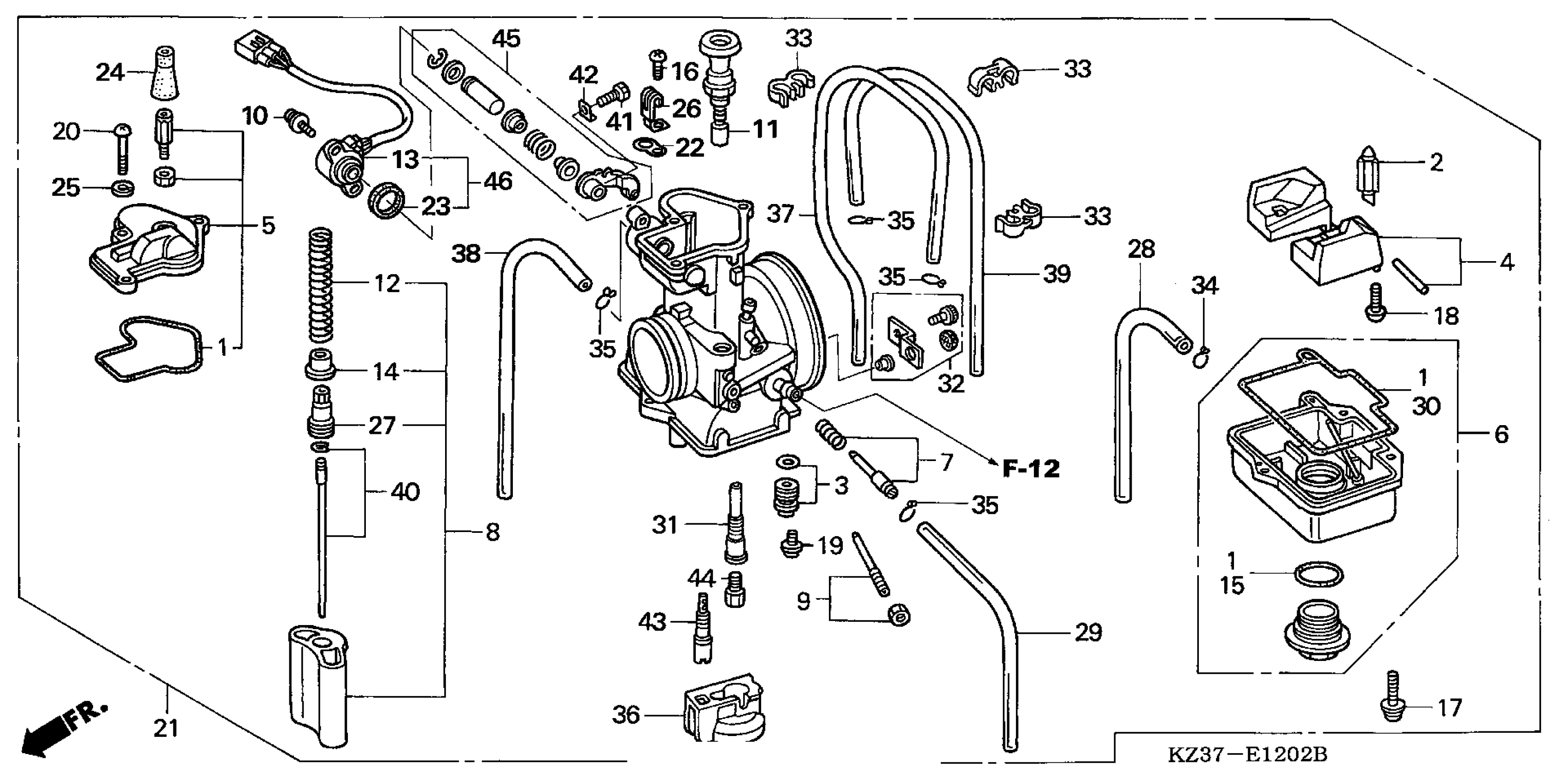

Honda CR250RA (07) MOTORCYCLE, JPN, VIN# JH2ME033-7M100001 CARBURETOR ('04-'07) Diagram

#

Description
Price

1

GASKET SET

16010-KSK-672

$22.08

2

VALVE, FLOAT

16011-KZ4-A92

$42.36

3

VALVE SET, SEAT

16012-KZ4-A92

$7.77

4

FLOAT SET

16013-KZ4-L22

Unavailable

5

TOP SET

16014-KSK-673

Unavailable

6

CHAMBER SET, FLOAT

16015-KSK-672

Unavailable

7

SCREW SET A

16016-KZ4-A92

Unavailable

8

VALVE SET, THROTTLE

16022-KSR-734

$98.10

9

SCREW SET B

16028-KZ4-A92

$6.72

10

SCREW

16041-KSK-672

Unavailable

11

VALVE SET, STARTER

16046-KZ4-A92

Unavailable

12

SPRING, COMPRESSION COIL

16050-KSK-672

Unavailable

14

COLLAR, SPRING SETTING

16066-KZ4-A92

Unavailable

15

O-RING

16075-KZ4-L22

Unavailable

16

SCREW

16080-KSK-672

Unavailable

17

SCREW-WASHER

16080-KZ4-L22

$1.49

18

SCREW, PAN

16081-KZ4-A92

Unavailable

19

SCREW

16082-KZ4-A92

Unavailable

20

SCREW

16083-KSK-673

$1.49

21

CARBURETOR ASSY. (TMX11A A)

16100-KSK-734

Unavailable

22

CLAMP, TUBE

16106-KSK-672

Unavailable

23

DUST SEAL

16118-KSR-732

Unavailable

24

CAP, CABLE SEALING

16118-KZ4-A92

$4.75

25

WASHER

16132-KSK-672

Unavailable

26

PLATE

16134-KSK-672

Unavailable

27

HOLDER, CABLE

16137-KZ4-L22

Unavailable

28

TUBE, OVERFLOW

16143-KZ4-A92

$2.20

29

TUBE, AIR VENT

16144-KZ4-A92

$2.56

30

GASKET, FLOAT CHAMBER

16163-KZ4-L22

Unavailable

31

HOLDER, JET

16165-KZ4-L32

$25.83

32

FILTER SET

16170-KZ4-L32

Unavailable

33

BINDER

16179-KZ4-A92

$4.26

34

CLIP, TUBE

16181-KZ4-A92

$1.49

35

CLIP, TUBE

16182-KZ4-A92

$1.49

36

PLATE, BUFFER

16185-KZ4-L22

Unavailable

37

TUBE, AIR VENT

16197-KZ4-L22

$9.91

38

TUBE, AIR VENT

16198-KZ4-L22

$8.66

39

TUBE, AIR VENT

16199-KZ4-A92

$3.03

40

NEEDLE SET, JET (6DGY26-65)

16207-KSK-732

Unavailable

41

SCREW

16544-KSK-672

Unavailable

42

PLATE

16732-KSK-672

Unavailable

43

JET, SLOW (#32.5) | (Optional).

99133-KZ3-0320

Unavailable

43

JET, SLOW (#35) | (Optional).

99133-KZ3-0350

Unavailable

43

JET, SLOW (#37.5) | (Optional).

99133-KZ3-0370

Unavailable

43

JET, SLOW (#45) | (Optional).

99133-KZ4-0450

Unavailable

43

JET, SLOW (#42.5) | (Optional).

99133-KSK-0420

$10.51

43

JET, SLOW (#40)

99133-KZ4-0400

$12.08

43

JET, SLOW (#50) | (Optional).

99133-KZ4-0500

Unavailable

43

JET, SLOW (#55) | (Optional).

99133-KZ4-0550

$12.82

44

JET, MAIN (#420)

99143-KZ4-4200

$14.51

45

LEVER SET, THROTTLE SENSOR

16017-KSR-A02

$74.72

46

SENSOR, THROTTLE

16060-KSR-732

Unavailable
